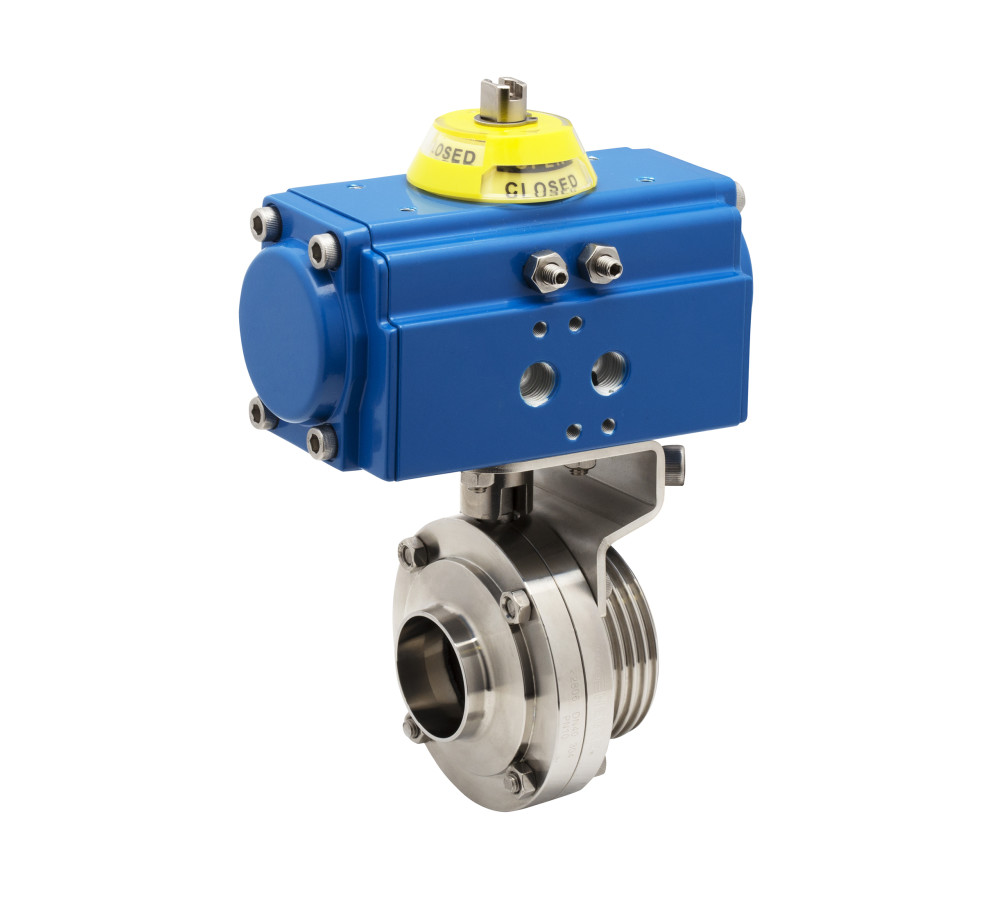

BUTTERFLY V.WELD/WELD ENDS

Stainless steel body AISI 304. EPDM elastomer (other material please consult us). End welded/welded. Max. working pressure 10 bar. Max. temp. 120ºC. Manually operated: 3 position.
With GNP actuator.

Reference: 5943E

Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5943E 06 126 BUTTERFLY V.WELD/WELD ENDS 1 2.54 1/1
5943E 07 126 BUTTERFLY V.WELD/WELD ENDS 1 2.73 1/1
5943E 08 126 BUTTERFLY V.WELD/WELD ENDS 1 2.74 1/1
5943E 09 134 VALVE 2943E 2" WITH GNP-44/S4 1 3.75 1/1
5943E 10 140 VALVE 2943E 2"1/2 WITH GNP-60/S5 1 5.278 1/1
5943E 11 140 VALVE 2943E 3" WITH GNP-60/S5 1 5.85 1/1
5943E 12 144 VALVE 2943E 4" WITH GNP-94/S5 1 7 1/1
