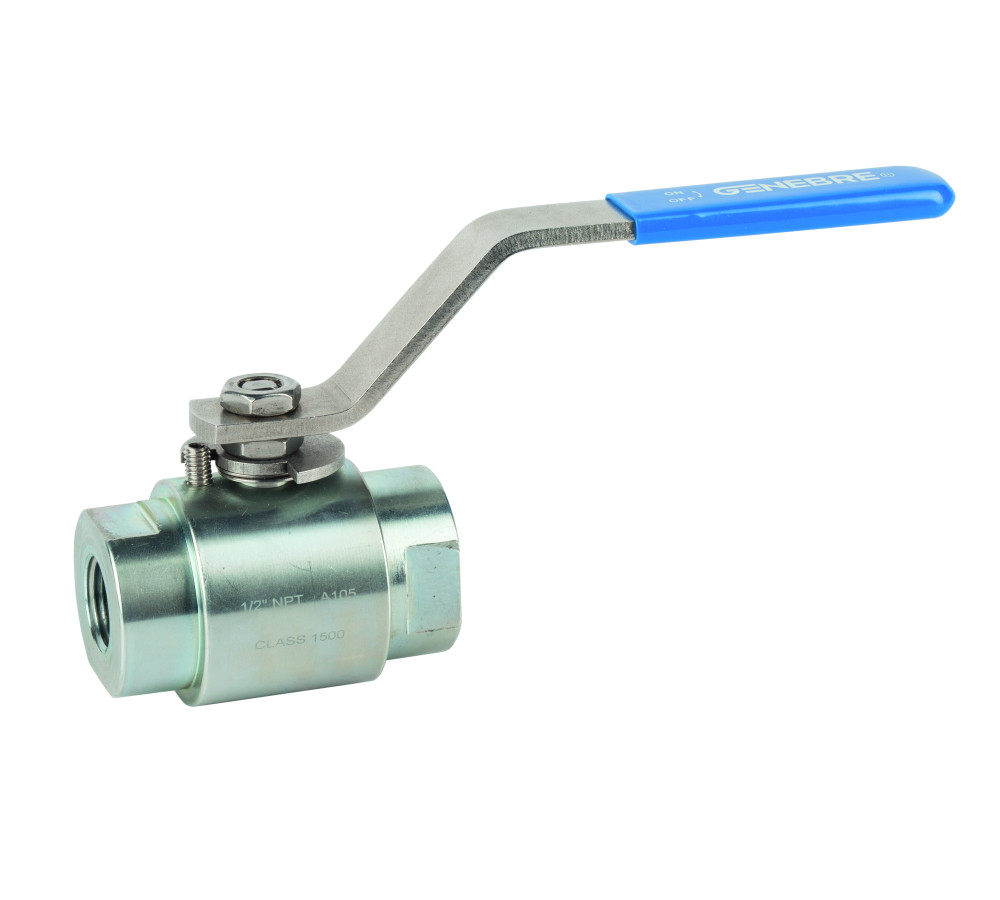

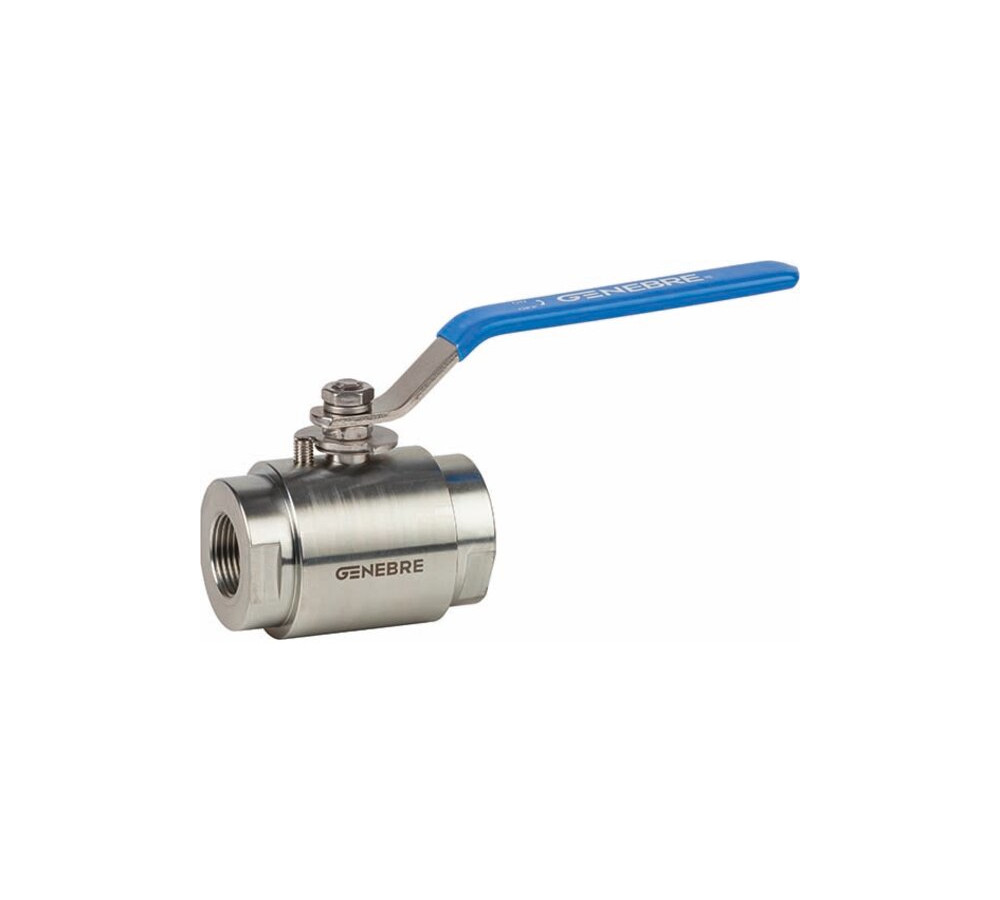

High Pressure full bore ball valve NPT thread

Const. carbon steel ASTM A105.
Ball and stem: stainless steel 304.Seats: PEEK.
Class 1500 (255 bar) - Temp. -30ºC +250ºC.
NPT threaded ends

3600 PSI -22ºF + 482ºF

Reference: 2007N

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2007N 02 HIGH PRESSURE FULL BORE BALL VALVE 1/4" NPT THREAD 1 0.632 6/30
2007N 03 HIGH PRESSURE FULL BORE BALL VALVE 3/8" NPT THREAD 1 0.619 6/30
2007N 04 HIGH PRESSURE FULL BORE BALL VALVE 1/2" NPT THREAD 1 0.906 6/30
2007N 05 HIGH PRESSURE FULL BORE BALL VALVE 3/4" NPT THREAD 1 1.561 4/12
2007N 06 HIGH PRESSURE FULL BORE BALL VALVE 1" NPT THREAD 1 2.247 4/12
