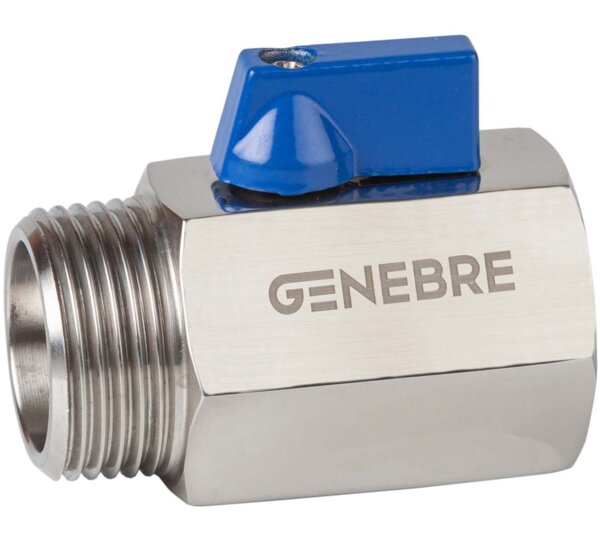

1 pc reduced bore ball valve M-F

Const. polished stainless steel AISI 316. M-F gas
threaded ends. ISO 7-1 (EN 10226-1) PN 63. Seats: PTFE.
Temp. -25ºC +180ºC manually operated.

Reference: 2005

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2005 02 1PC REDUCED B.BALL V. M-F 1/4" 1 0.076 20/240
2005 03 1PC REDUCED B.BALL V. M-F 3/8" 1 0.082 20/240
2005 04 1PC REDUCED B.BALL V. M-F 1/2" 1 0.115 20/240
2005 05 1PC REDUCED B.BALL V. M-F 3/4" 1 0.194 15/180
2005 06 1PC REDUCED B.BALL V. M-F 1" 1 0.334 6/72
