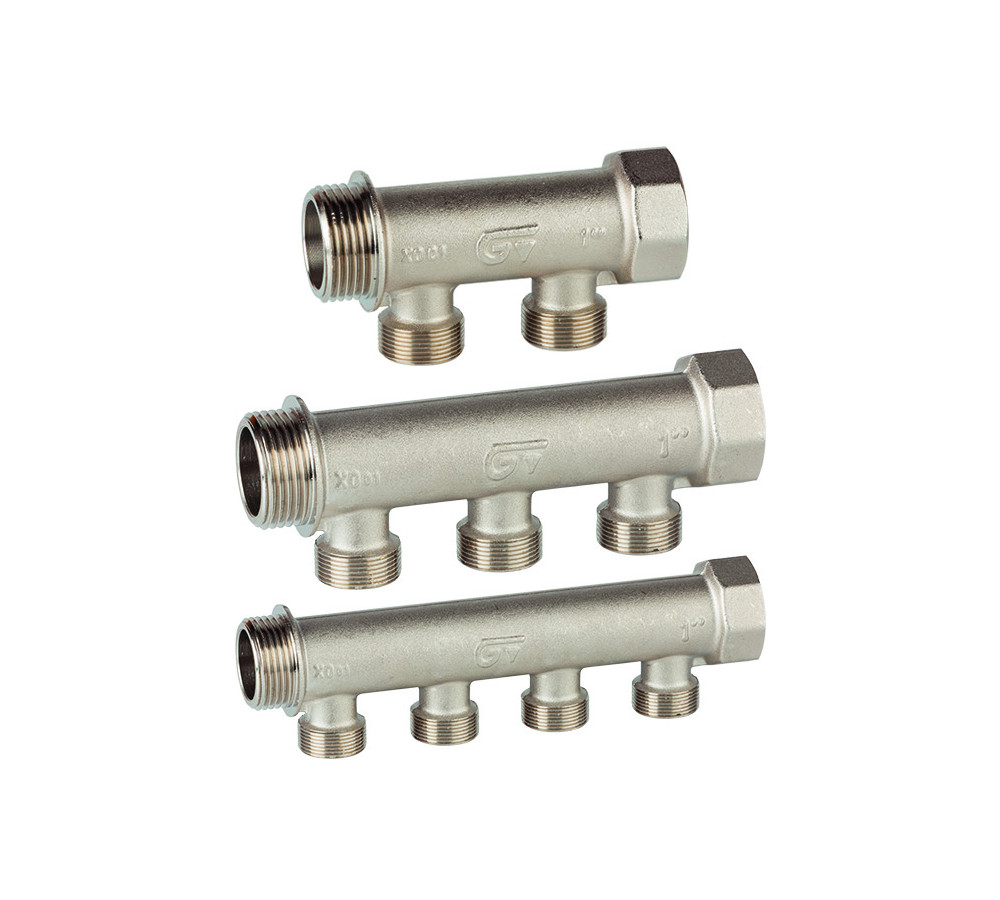

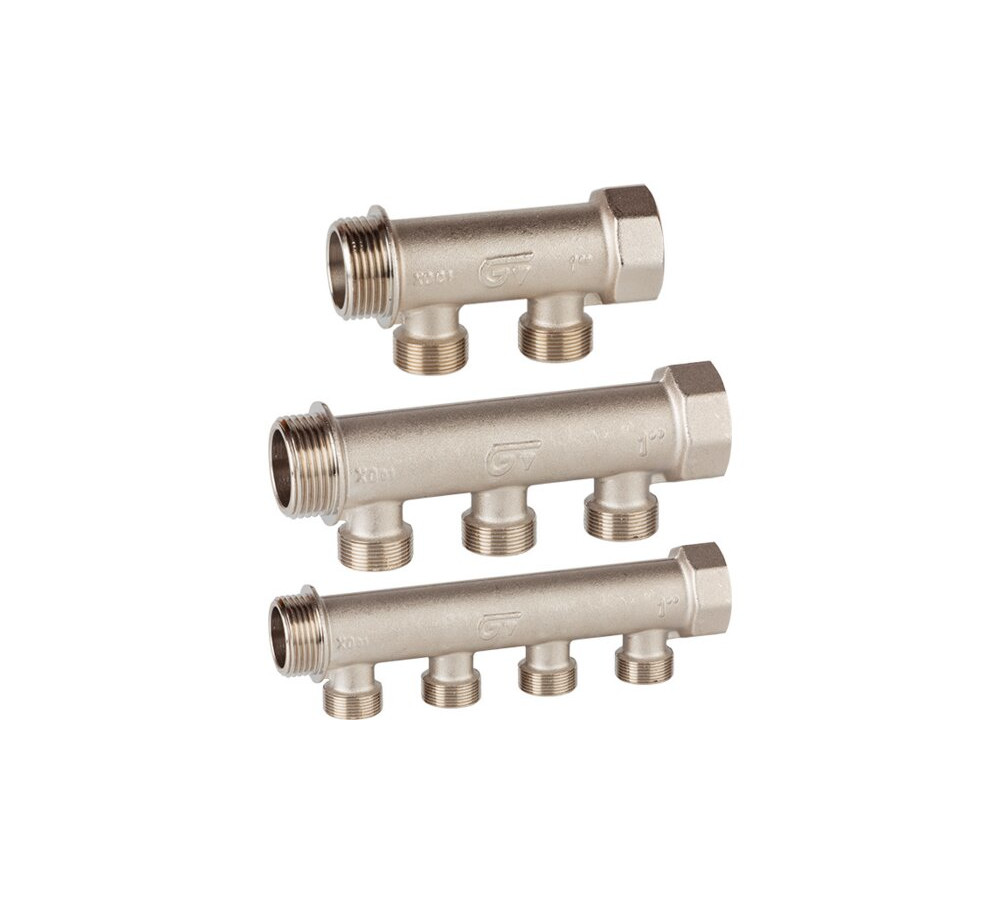

GENEBRE: 2, 3 and 4 ways modular single manifold

2, 3 and 4 ways modular single manifold

PN 10. Niqckel-plated brass construction UNE-EN 12165. Line connection threaded ends gas (BSP) M - F, ISO 228/1. Lateral connections male, G1/2" ISO 228/1. Maximum working temperature 180ºC.

Reference: 70024

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
70024 05 02	SINGLE MANIFOLD 3/4" S2 G1/2"	1	0.147	8/64
70024 05 03	SINGLE MANIFOLD 3/4" S3 G1/2"	5	0.197	5/40
70024 05 04	SINGLE MANIFOLD 3/4" S4 G1/2"	1	0.247	4/32
70024 06 02	SINGLE MANIFOLD 1" S2 G1/2"	1	0.253	8/72
70024 06 03	SINGLE MANIFOLD 1" S3 G1/2"	1	0.325	5/45
70024 06 04	SINGLE MANIFOLD 1" S4 G1/2"	1	0.403	4/36

Reference

Size

Minimum purchase unit

Weight (Kg)

Box / carton

70024 05 02

SINGLE MANIFOLD 3/4" S2 G1/2"

0.147

8/64

70024 05 03

SINGLE MANIFOLD 3/4" S3 G1/2"

0.197

5/40

70024 05 04

SINGLE MANIFOLD 3/4" S4 G1/2"

0.247

4/32

70024 06 02

SINGLE MANIFOLD 1" S2 G1/2"

0.253

8/72

70024 06 03

SINGLE MANIFOLD 1" S3 G1/2"

0.325

5/45

70024 06 04

SINGLE MANIFOLD 1" S4 G1/2"

0.403

4/36
