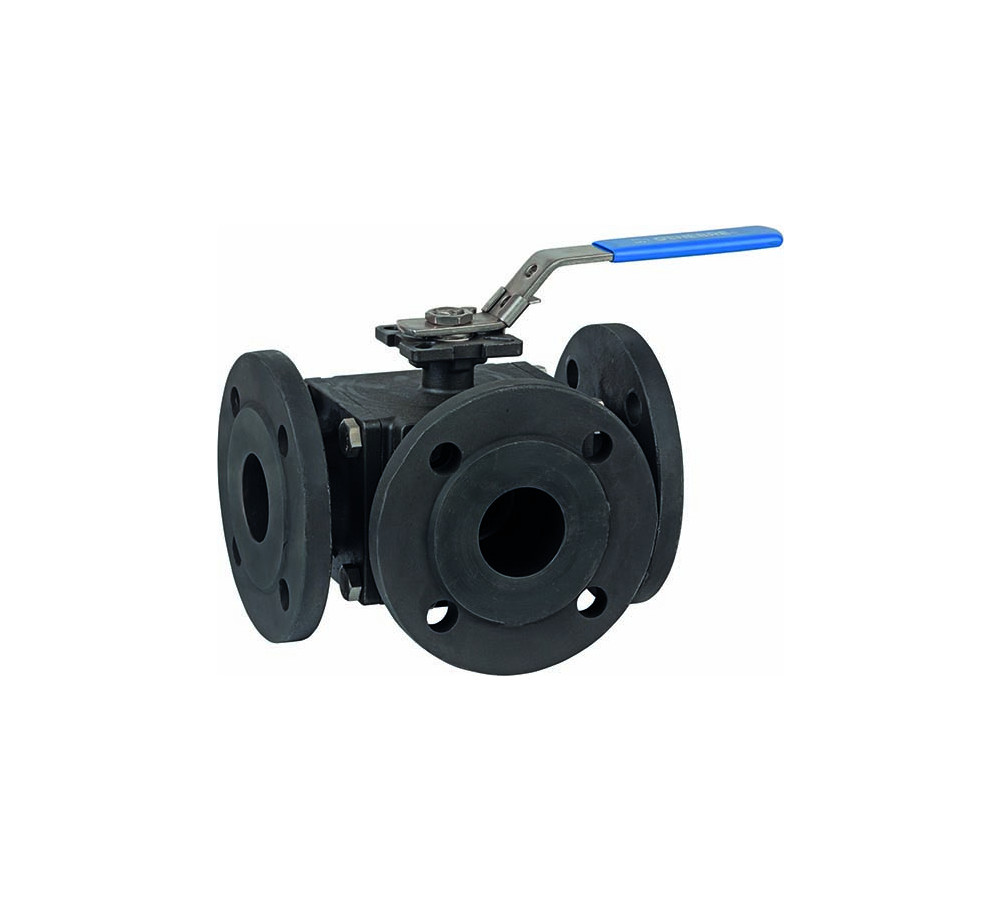

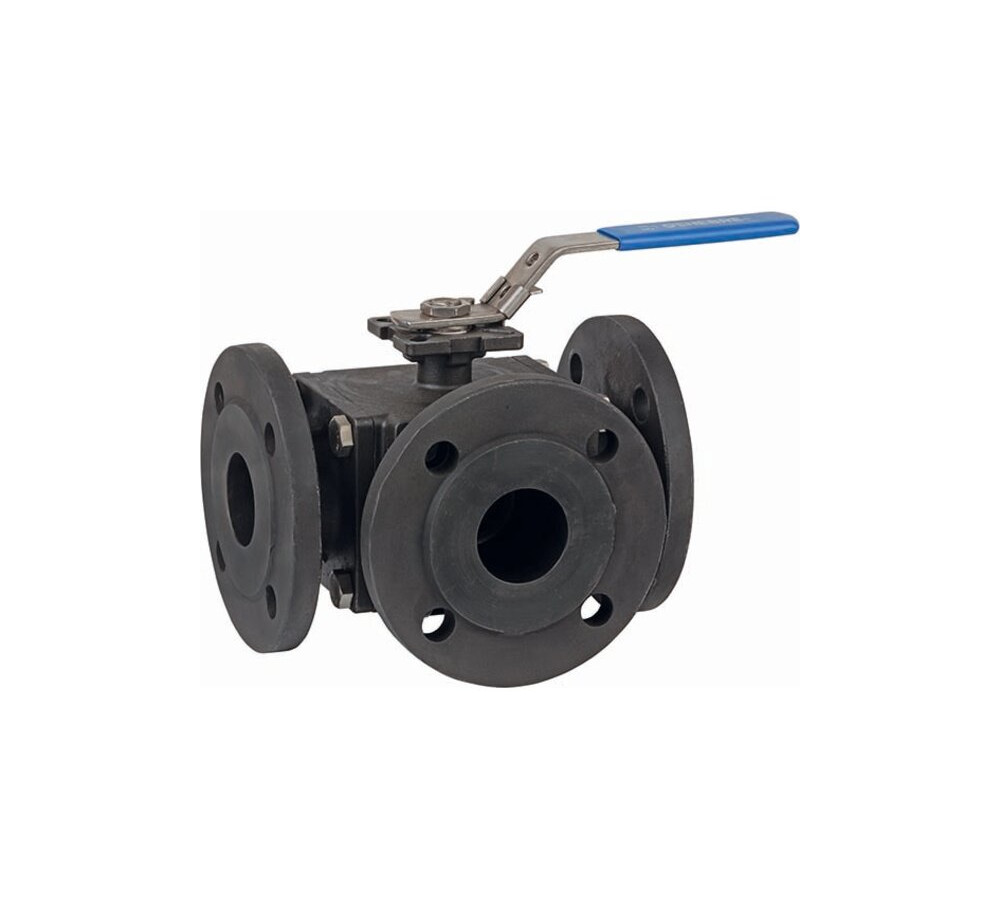

3 way full bore ball valve. 2544 “L” bore / 2545 “T” bore. Flanges DIN PN40 ≤ DN50. Flanges DIN PN16 ˃ DN50.

Direct mounting for actuators ISO 5211.
Body: Carbon steel 1.0619 (WCB) investment casting.
Ball: AISI 316.Ball seats: PTFE.
Máx. Pressure: 16/40 bar depending on size.
Temp.: -25ºC +180ºC. Manually operated by handle with locking system.

Reference: 2544

ValveTechnical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2544 06 3WAYS FULL BORE B.V."L" WCB 1" 1 7.22 1/3
2544 07 3WAYS FULL BORE B.V."L" WCB 1"1/4 1 10.415 1/2
2544 08 3WAYS FULL BORE B.V."L" WCB 1"1/2 1 14.33 1/1
2544 09 3WAYS FULL BORE B.V."L" WCB 2" 1 18.8 1/1
2544 10 3WAYS FULL BORE B.V."L" WCB 2"1/2 1 27.43 1/1
2544 11 3WAYS FULL BORE B.V."L" WCB 3" 1 40.3 1/1
2544 12 3WAYS FULL BORE B.V."L" WCB 4" 1 59.515 1/1
