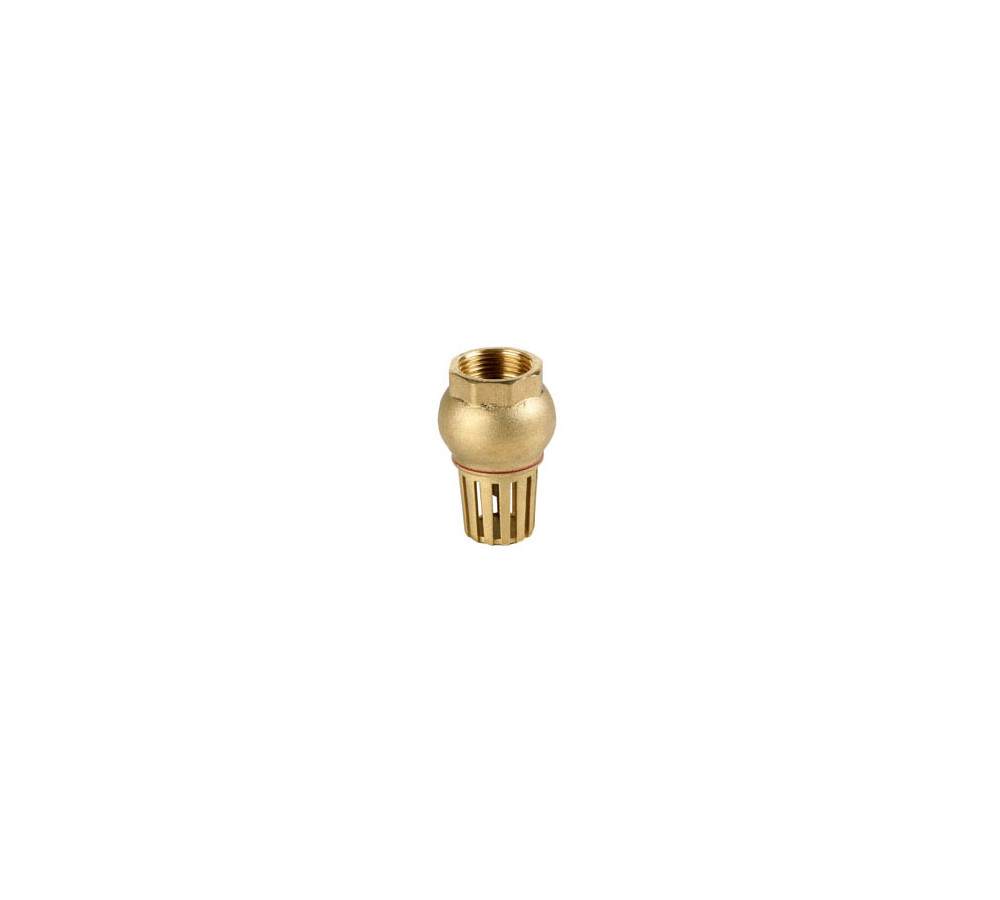

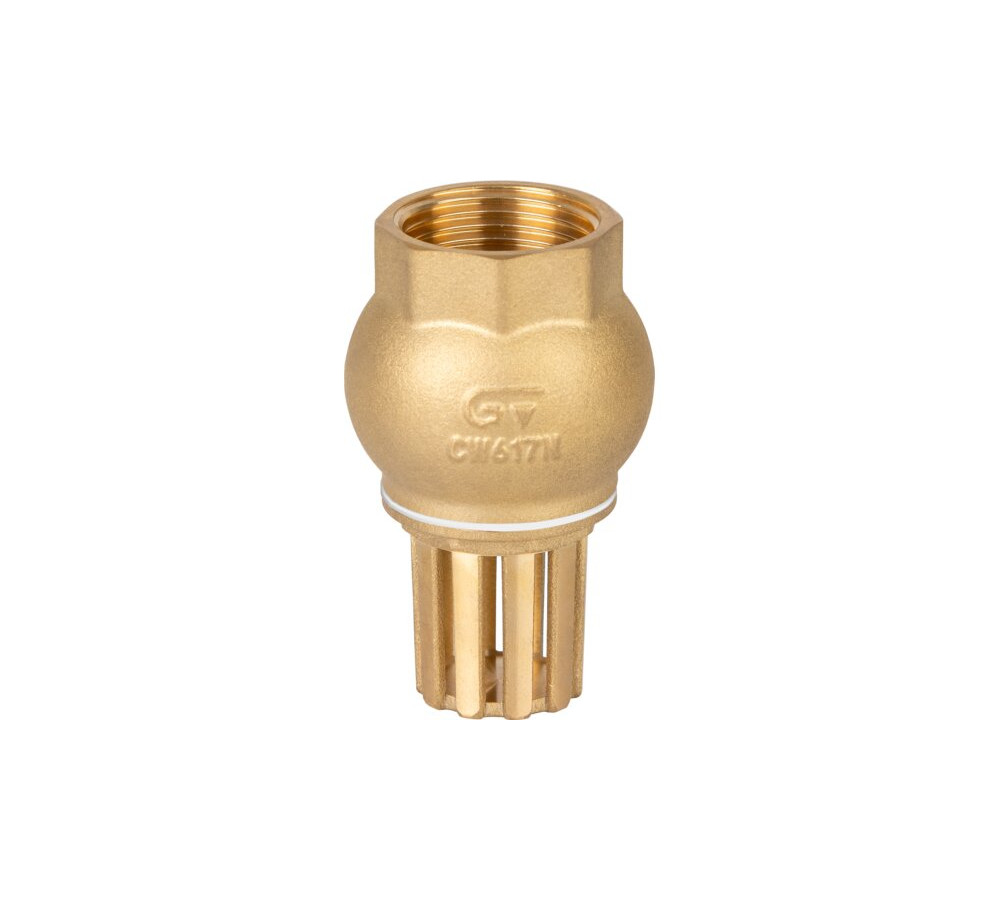

Bottom valve

PN 10 - PN 8 - PN 6. Body brass UNE-EN 12165. Rubber sealing guided seat. Gas threaded ends (BSP) F - ISO 228/1. Max. temp. 90ºC.

Reference: 3145E

Bottom valve
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3145E 05 BOTTOM VALVE 3/4" 1 0.189 15/90
3145E 06 BOTTOM VALVE 1" 1 0.243 12/72
3145E 07 BOTTOM VALVE 1 1/4" 1 0.388 7/42
3145E 08 BOTTOM VALVE 1 1/2" 1 0.528 6/36
3145E 09 BOTTOM VALVE 2" 1 0.774 3/18
3145E 10 BOTTOM VALVE 2 1/2" 1 1.208 2/12
3145E 11 BOTTOM VALVE 3" 1 1.688 1/9
3145E 12 BOTTOM VALVE 4" 1 2.983 1/5
