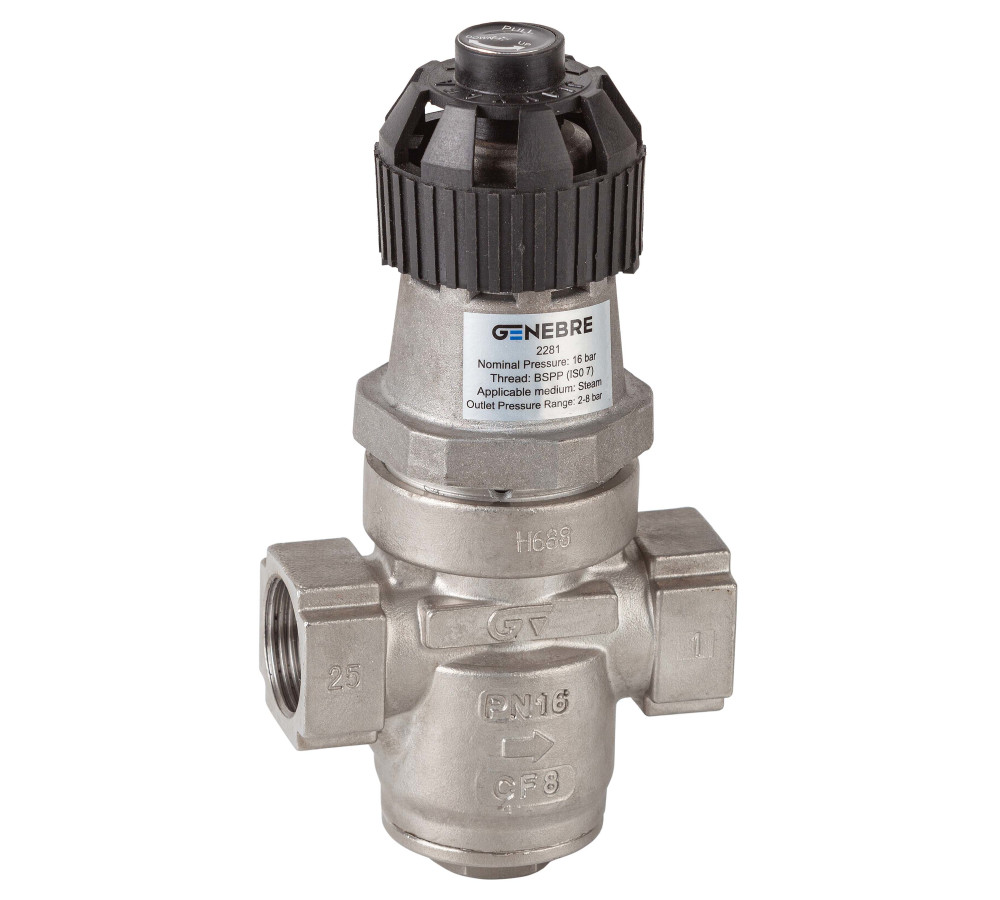

Pressure Reducing Valve.

Threaded ends acc. to ISO 7-1.Construction: stainless steel CF8 (304).
Maximum input pressure 16 bar. Outlet pressure from 2 to 8 bar.
Maximum working temperature 200ºC. (Steam application)

Reference: 2281

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2281 04 PRESSURE REDUCING VALVE DN15 BSP 1 1.476 1/1
2281 05 PRESSURE REDUCING VALVE DN20 BSP 1 1.61 1/1
2281 06 PRESSURE REDUCING VALVE DN25 BSP 1 1.883 1/1
