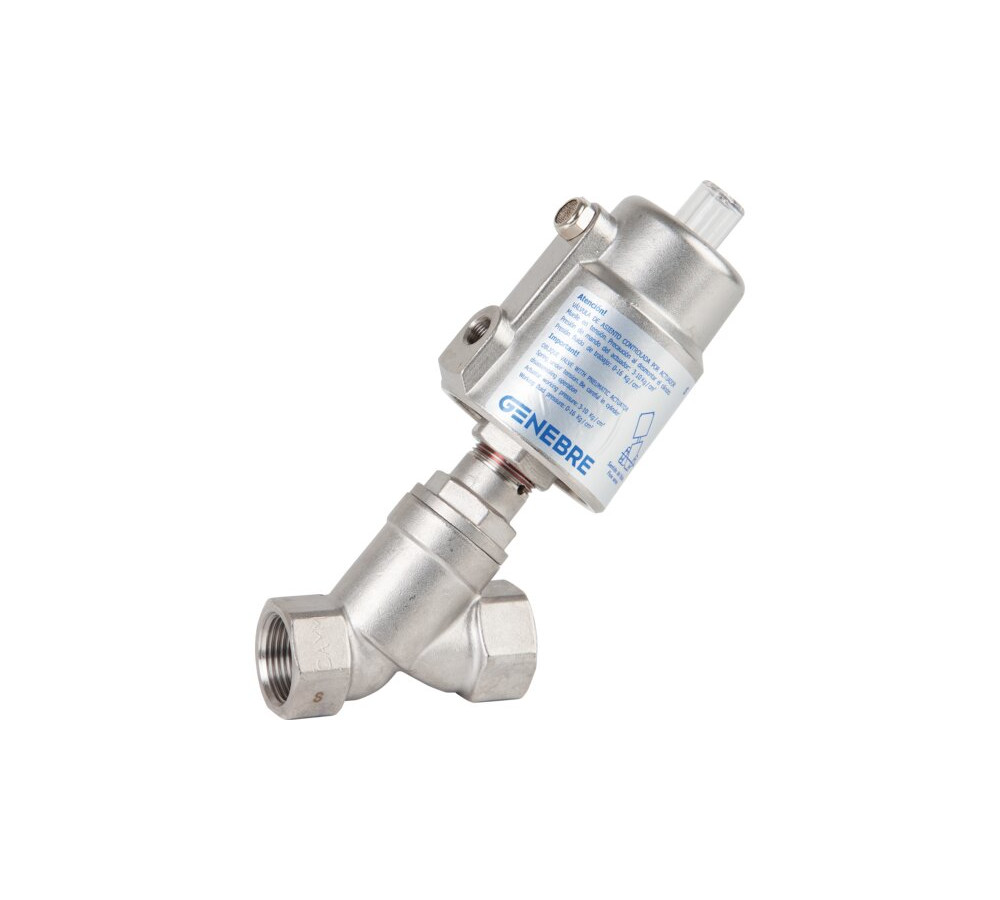

Angle seat valve with spring return actuator

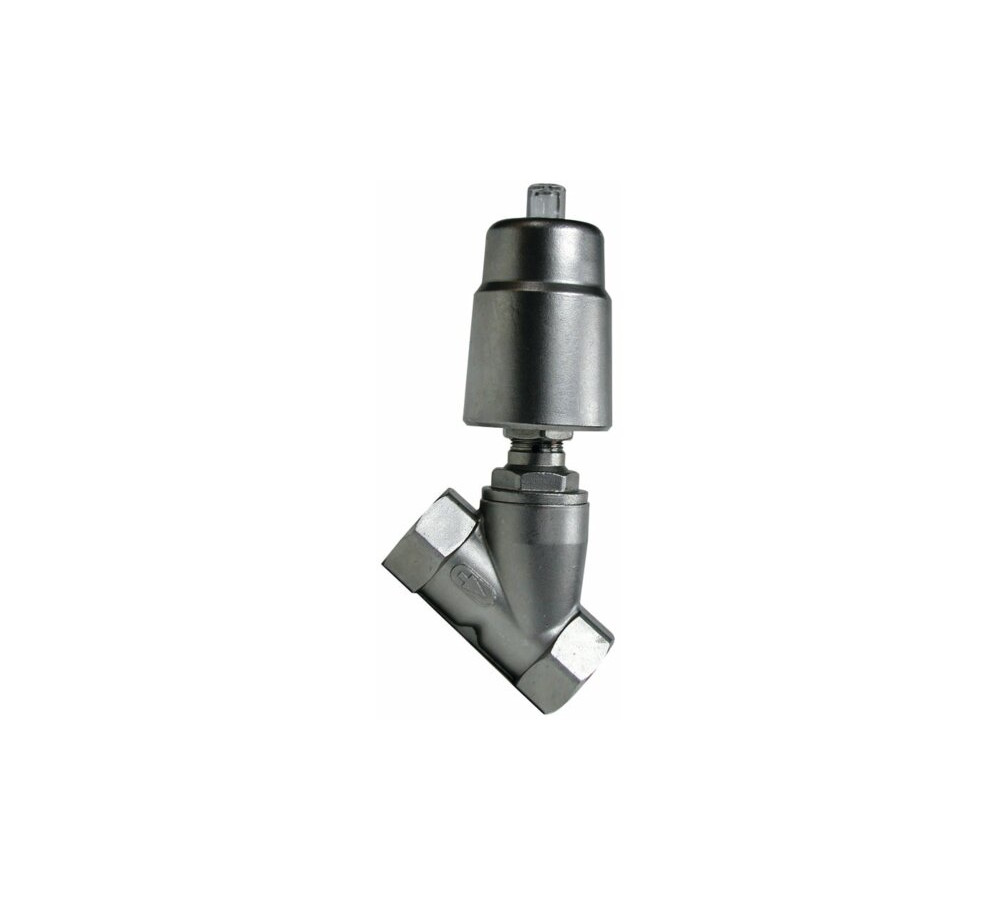

Also available in NPT thread ISO 228-1 (5060N).
Gas threaded ends, PN-16. Constr.: stainless steel AISI 316 investment casting. Actuator seal: NBR. Working temp. range: -10ºC +180ºC. Pressure control actuator: 3-10 kg/cm2.

Reference: 5060

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5060 04 SLANTED SEAT VALVE 1/2" + SPRING RETURN ACTUATOR 1 0.974 1/13
5060 05 SLANTED SEAT VALVE 3/4" + SPRING RETURN ACTUATOR 1 1.077 1/13
5060 06 SLANTED SEAT VALVE 1" +SPRING RETURN ACTUATOR 1 1.318 1/12
5060 07 SLANTED SEAT VALVE 1 1/4" +SPRING RETURN ACTUATOR 1 2.351 1/8
5060 08 SLANTED SEAT VALVE 1 1/2" +SPRING RETURN ACTUATOR 1 2.569 1/8
5060 09 SLANTED SEAT VALVE 2" +SPRING RETURN ACTUATOR 1 3.365 1/6
