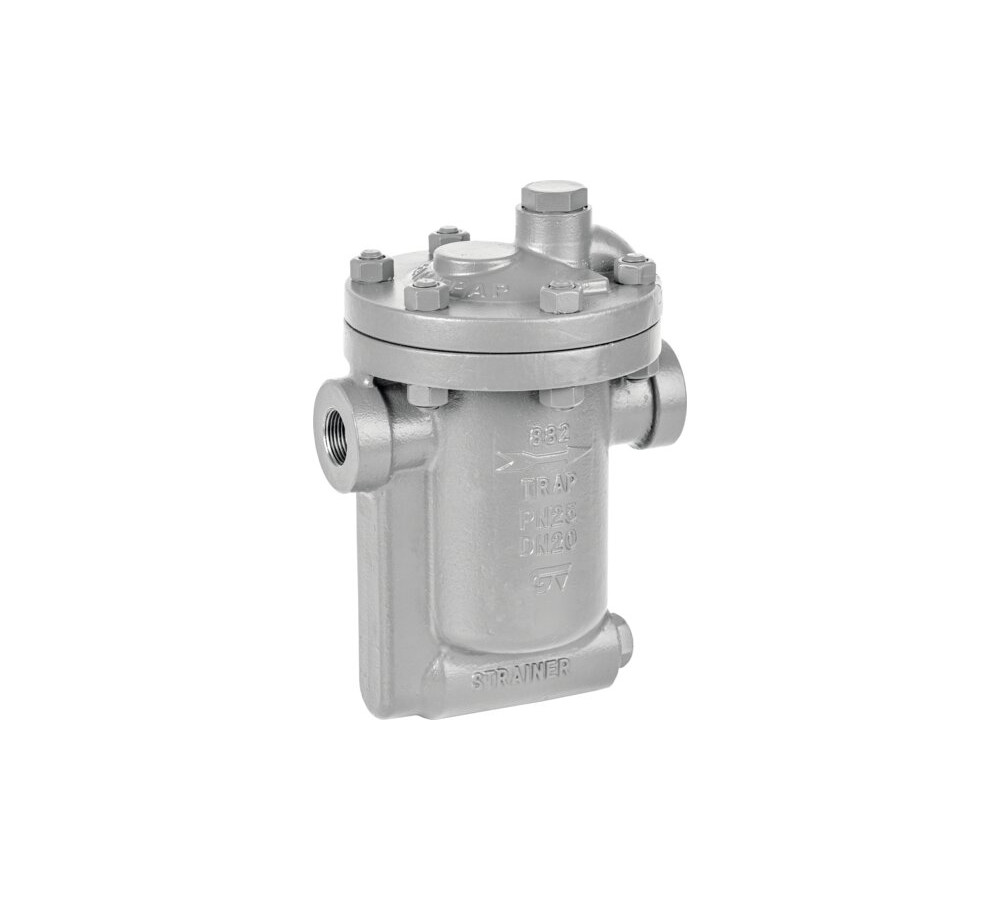

Inverted Bucket steam trap.

BSP threaded ends acc. to ISO 228/1.
Construction: Ductile Iron GGG-40. Internal parts made of stainless steel. Horizontal installation.
Maximum working pressure PN16. Maximum differential pressure: 5 bar (050) – 9 bar (090) or 14 bar (140). Flow rate Capacity: 1000 Kg/h. Maximum working temperature 300ºC.

Reference: 2289

View technical details
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2289 05 050 INVERTED BUCKET STEAM TRAP 3/4" BSP DP. 5 H.C. 1 8.04 1/2
2289 05 090 INVERTED BUCKET STEAM TRAP 3/4" BSP DP. 9 H.C. 1 8.027 1/2
2289 05 140 INVERTED BUCKET STEAM TRAP 3/4" BSP DP. 14 H.C. 1 8.02 1/2
2289 06 050 INVERTED BUCKET STEAM TRAP 1" BSP DP. 5 H.C. 1 7.96 1/2
2289 06 090 INVERTED BUCKET STEAM TRAP 1" BSP DP. 9 H.C. 1 7.92 1/2
2289 06 140 INVERTED BUCKET STEAM TRAP 1" BSP DP. 14 H.C. 1 7.98 1/2
