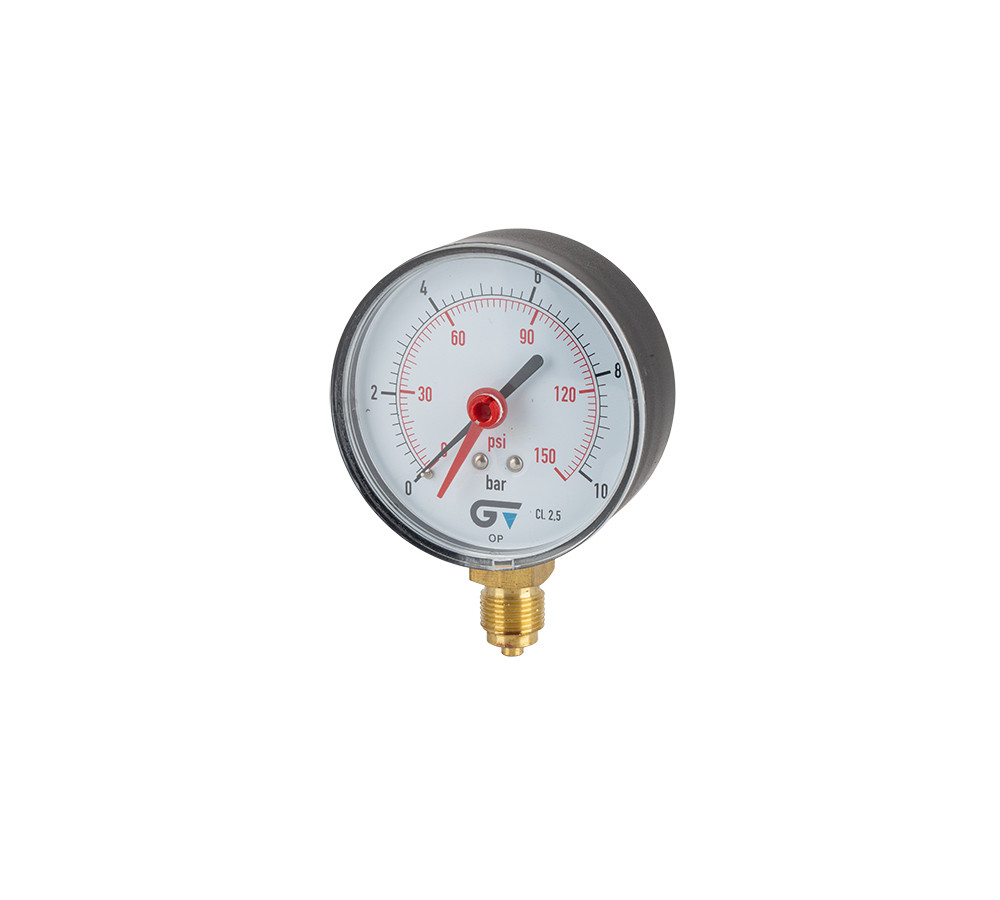

Pressure gauge Ø 80 mm, red index, bottom connection, BSP thread 3/8"

ABS Case, red index, double scale. Burdon pipe and connector 3/8” male gas threaded (BSP). Scale available from 0-2.5-4-6-10-16-25-40 bar. Bottom connection (radial). Precision class 2.5.

Reference: 3827

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3827 002 PRESSURE GAUGE D80 3/8" 0-2,5, 0-40 1 0.13 1/100
3827 004 PRESSURE GAUGE D80 3/8" 0-4, 0-60 1 0.133 1/100
3827 006 PRESSURE GAUGE D80 3/8" 0-6, 0-90 1 0.133 1/100
3827 008 MANOMETRO RADIAL D.80 3/8" 1 0.2 1/1
3827 010 PRESSURE GAUGE D80 3/8" 0-10, 0-150 1 0.137 1/100
3827 016 PRESSURE GAUGE D80 3/8" 0-16, 0-240 1 0.137 1/100
3827 025 PRESSURE GAUGE D80 3/8" 0-25, 0-400 1 0.135 1/100
3827 040 PRESSURE GAUGE D80 3/8" 0-40, 0-600 1 0.139 1/100
