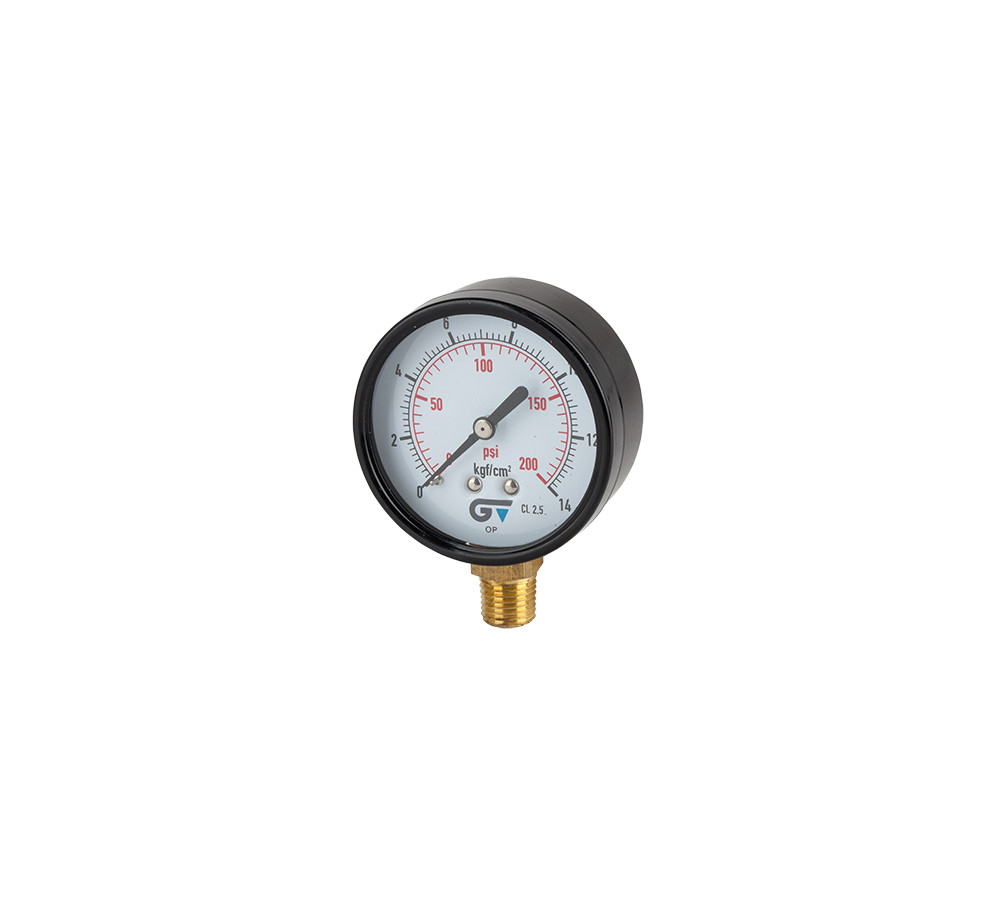

Pressure gauge Ø 63 mm, bottom connection, NPT thread 1/4"

Carbon steel case. Brass bourdon pipe and connector UNE-EN 12165. 1/4” male NPT threaded. Bottom connection (radial). Precision class 2.5. Kgf/cm2, psi scale.

Reference: 3714

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3714 001 MAN?63,0-1kg/0-15psi s/r 1 0.092 1/200
3714 002 MANØ63,0-2kg/0-30 psi s/r 1 0.092 1/200
3714 004 MANØ63,0-4kg/0-60psi s/r 1 0.111 18/162
3714 007 MANØ63,0-7kg/0-100 psi s/r 1 0.112 18/162
3714 010 MANØ63,0-10kg/0-150 psi s/r 1 0.112 18/162
3714 014 MANØ63,0-14kg/0-200 psi s/r 1 0.112 18/162
3714 017 MANØ63,0-17kg/0-250 psi s/i 1 0.112 18/162
3714 021 MANØ63,0-21kg/0-300 psi s/r 1 0.113 18/162
3714 028 MANOM Ø63 0-28kg/0- 400 s/r 1 0.113 18/162
3714 040 MANØ63,0-40kg/0-600 psi s/r 1 0.092 1/200
3714 070 MANØ63,0-70kg/0-1000 psi s/r 1 0.092 1/200
3714 100 MAN Ø63,0-100kg,0/1500psi s/r 1 0.092 1/200
3714 315 MANØ630,315kg 0-6000psi s/r 1 0.205 1/1
3714 400 MANØ630,400kg/06000psi s/r 1 0.092 1/200
