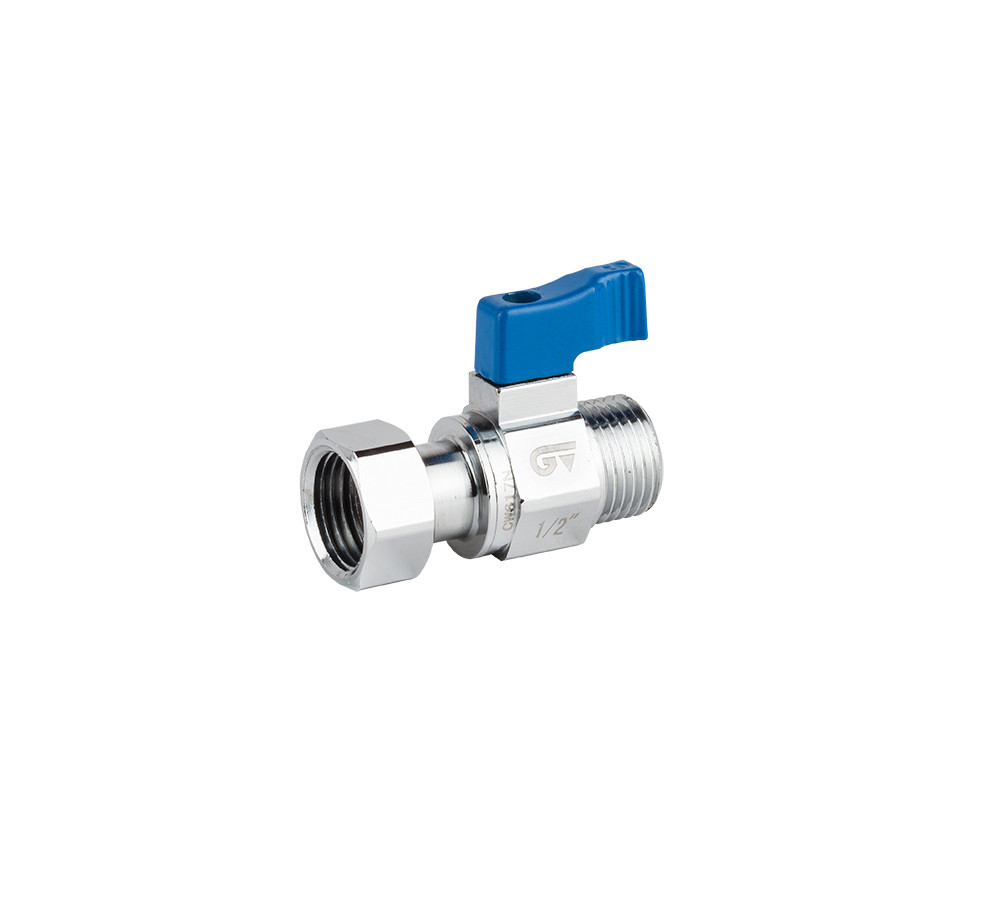

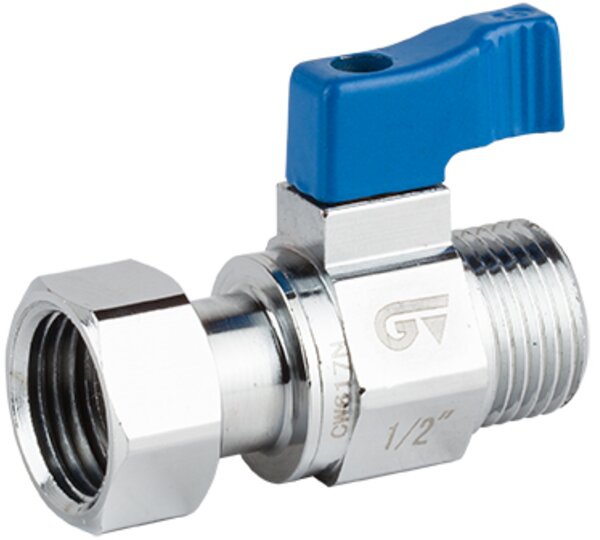

Mini ball valve with free nut

PN 16. Reduced bore. Body chrome plated brass UNE-EN 12165. PTFE Seats. M-F gas (BSP) threaded ends according ISO 228/1. Max. temp. 110ºC. Aluminium butterfly handle.

Reference: 3451

See Technical Sheet

Consult product

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
3451 04 04	MINI BALL VALVE WITH FREE NUT 1/2"x1/2"	10	0.116	10/80
3451 04 05	MINI BALL VALVE WITH FREE NUT 1/2"x3/4"	25	0.134	25/150
3451 05 05	MINI BALL VALVE WITH FREE NUT 3/4"x3/4"	25	0.188	25/150
