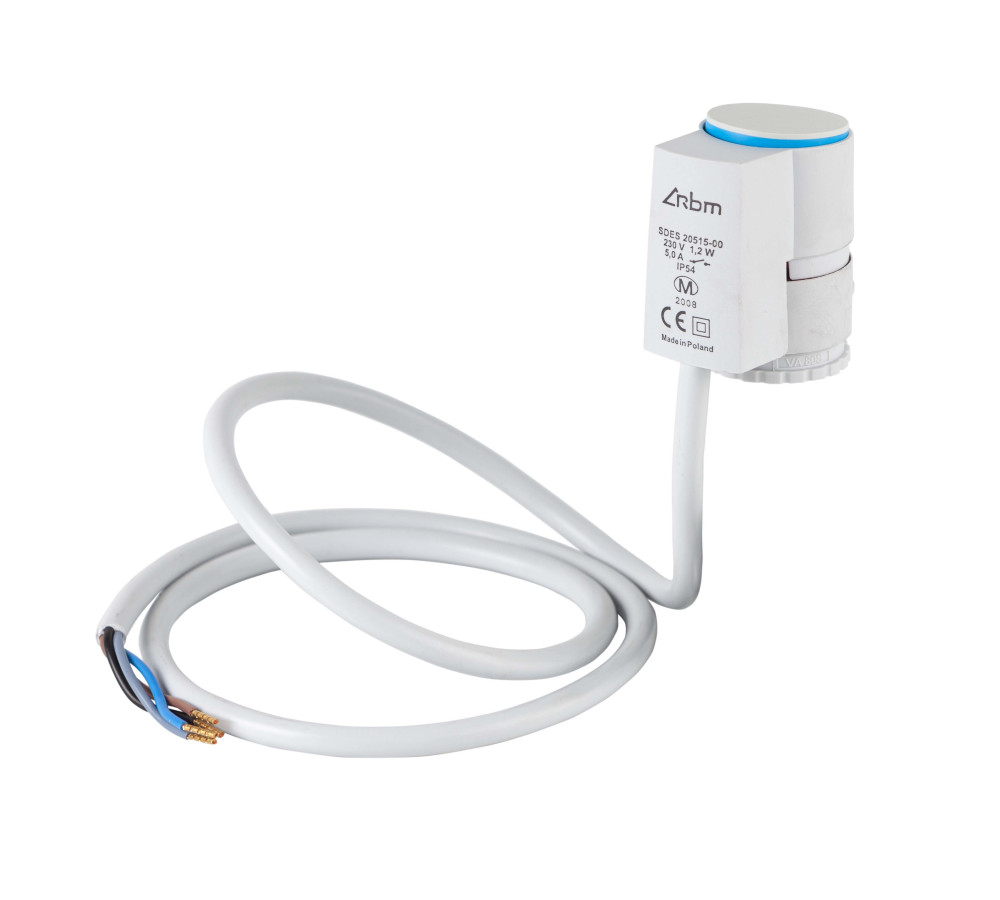

Electrothermal actuator

Power supply: 24V / 220-240V (±10%) 50-60 Hz. P=1,2W. Fireproof polymer construction. Two wire cable with PVC cover. Normally closed valve position. Protection class IP54. Max. working ambient temperature 60ºC. Max. fluid temperature 100ºC. Max. working pressure 10 bar.

Reference: 70306

See Technical Sheet
Manual angle radiator valve for steel pipe with GE System
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
70306 00 02 ELECTROTHERMAL ACTUATOR 230V 1 0.16 1/100
70306 00 12 ELECTROTHERMAL ACTUATOR 24V 1 0.16 1/100
