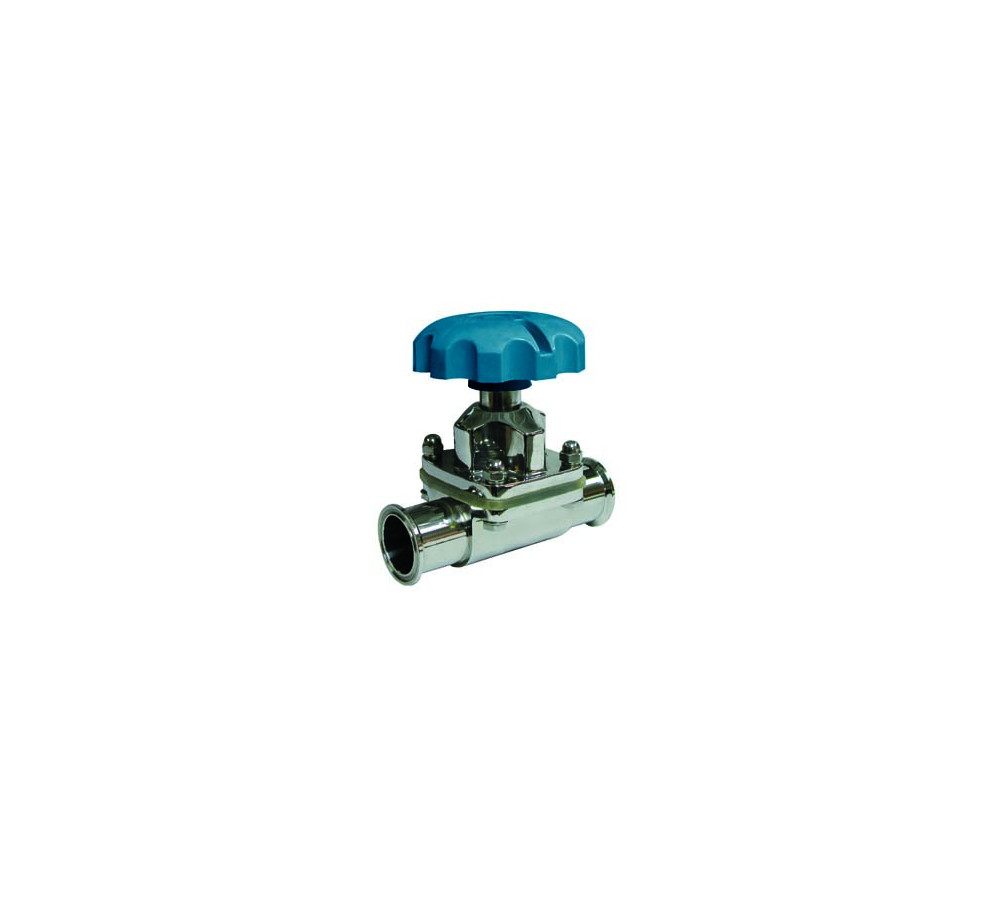

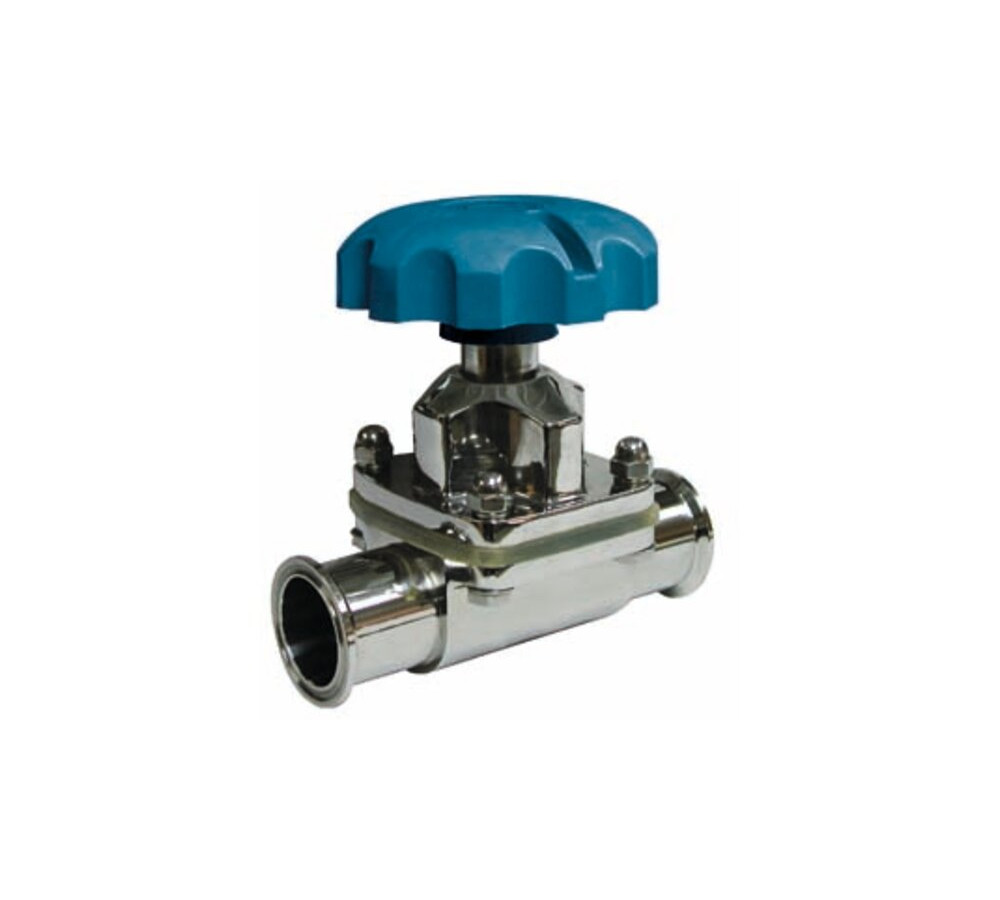

Diaphragm valve clamp ends

Stainless steel body AISI 316L. Silicone diaphragm. Clamp ends in inches. Sanitary polish. (ask for another material). Max. working pressure: 10 bar. Max. temp. max: 95ºC. Manually operated.

Reference: 2945

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2945 04 DIAPHRAGM V.CLAMP ENDS 1 0.658 2/16
2945 05 DIAPHGRAM V.CLAMP ENDS 1 0.599 2/16
2945 06 DIAPHGRAM V. CLAMP ENDS 1 0.952 1/8
2945 08 DIAPHGRAM VALVE CLAMP ENDS 1 1.516 1/8
2945 09 DIAPHGRAM VALVE CLAMP ENDS 2" 1 2.344 1/4
