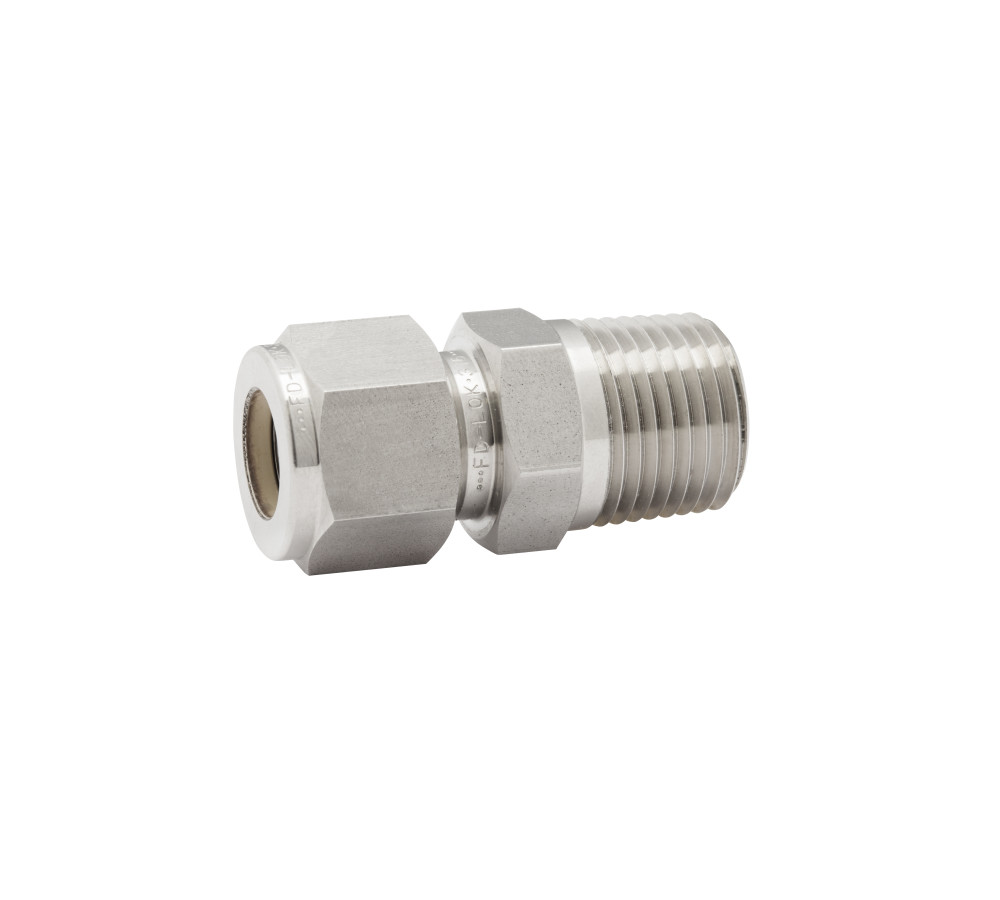

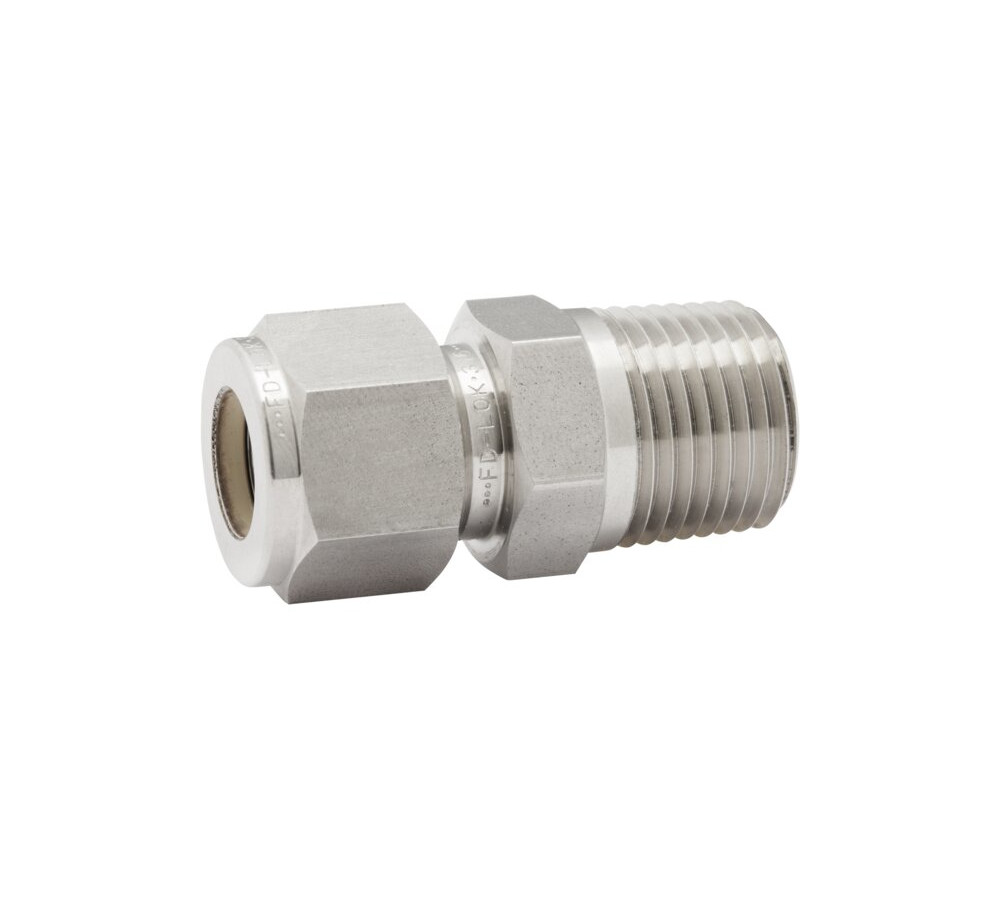

Connector Thread M (BSPT) - Tube (mm)

Material AISI 316. Thread: ISO 7-1 R
Max. working pressure: 315 bar.

Reference: 8405D

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
8405D 02 006 CONNECTOR THREAD M (BSPT) - TUBE (1/4" x 6 (MM) 5 0.032 30/540
8405D 03 006 CONNECTOR THREAD M (BSPT) - TUBE 3/8" x 6 (MM) 5 0.04 20/360
8405D 03 008 CONNECTOR THREAD M (BSPT) - TUBE 3/8" x 8 (MM) 5 0.048 20/360
8405D 03 010 CONNECTOR THREAD M (BSPT) - TUBE 3/8" x 10 (MM) 4 0.057 16/288
8405D 04 006 CONNECTOR THREAD M (BSPT) - TUBE 1/2" x 6 (MM) 3 0.07 12/216
8405D 04 008 CONNECTOR THREAD M (BSPT) - TUBE 1/2" x 8 (MM) 3 0.073 12/216
8405D 04 010 CONNECTOR THREAD M (BSPT) - TUBE 1/2" x 10 (MM) 3 0.089 12/216
8405D 04 012 CONNECTOR THREAD M (BSPT) - TUBE (mm) 3 0.097 12/216
