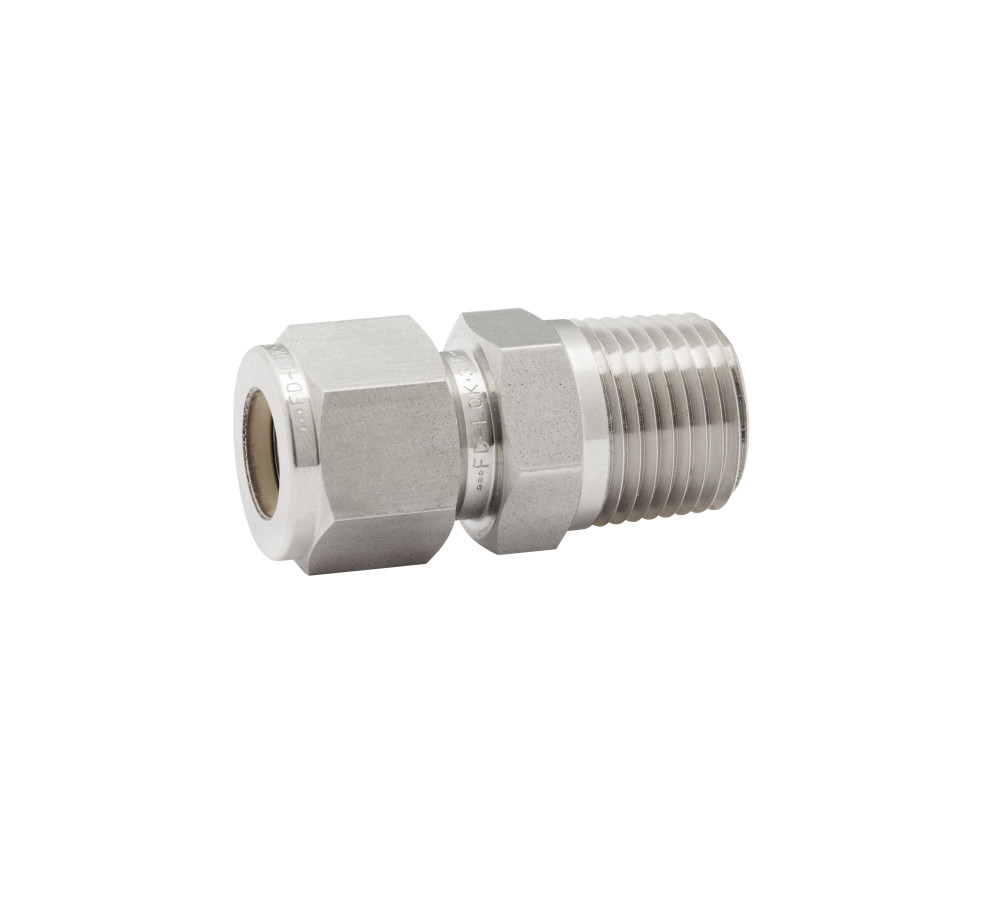

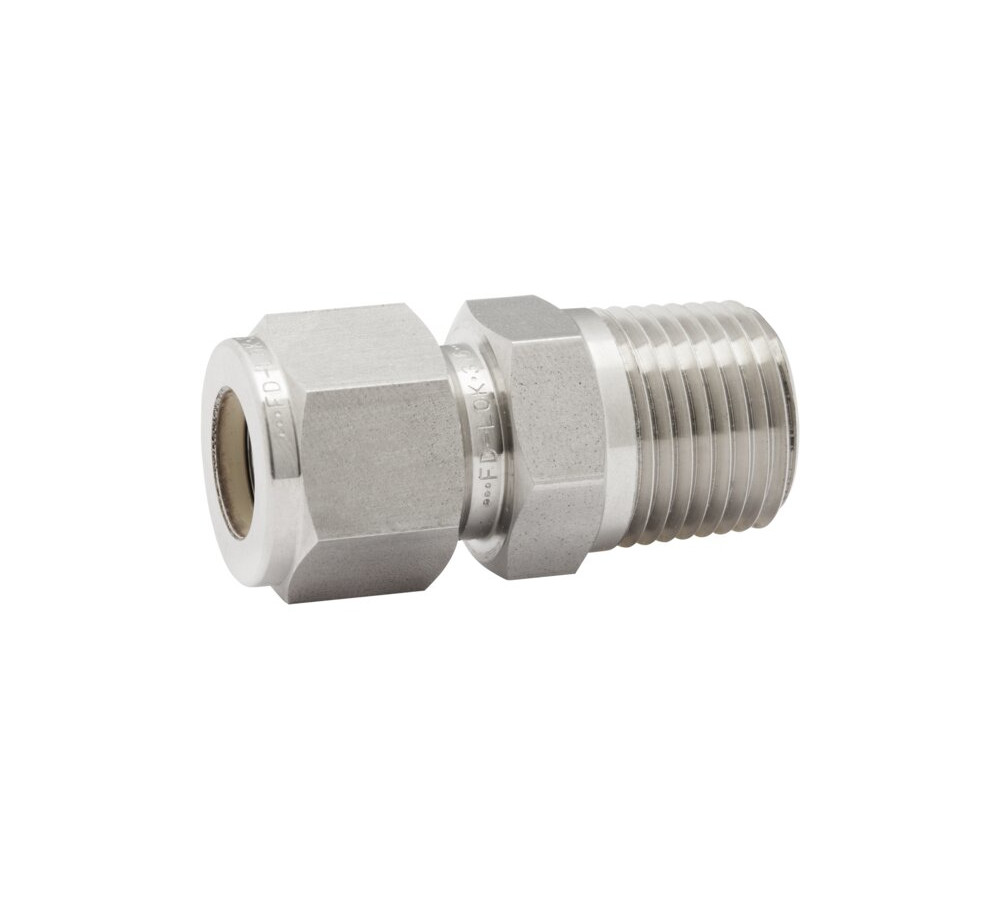

Connector Thread M (BSPT) - Tube (inch)

Material AISI 316. Thread: ISO 7-1 R
Max. working pressure: 315 bar.

Reference: 8405

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
8405 02 02 CONNECTOR THREAD M (BSPT) - TUBE 1/4" x 1/4" (INCH) 5 0.033 30/540
8405 03 02 CONNECTOR THREAD M (BSPT) - TUBE 3/8" x 1/4" (INCH) 5 0.047 20/360
8405 03 03 CONNECTOR THREAD M (BSPT)- TUBE 3/8" x 3/8" (INCH) 5 0.046 20/360
8405 04 02 CONNECTOR THREAD M (BSPT) - TUBE 1/2"x 1/4" (INCH) 3 0.071 12/216
8405 04 03 CONNECTOR THREAD M (BSPT) - TUBE 1/2" x 3/8" (INCH) 3 0.086 12/216
8405 04 04 CONNECTOR THREAD M (BSPT)- TUBE 1/2" x 1/2" (INCH) 3 0.093 12/216
