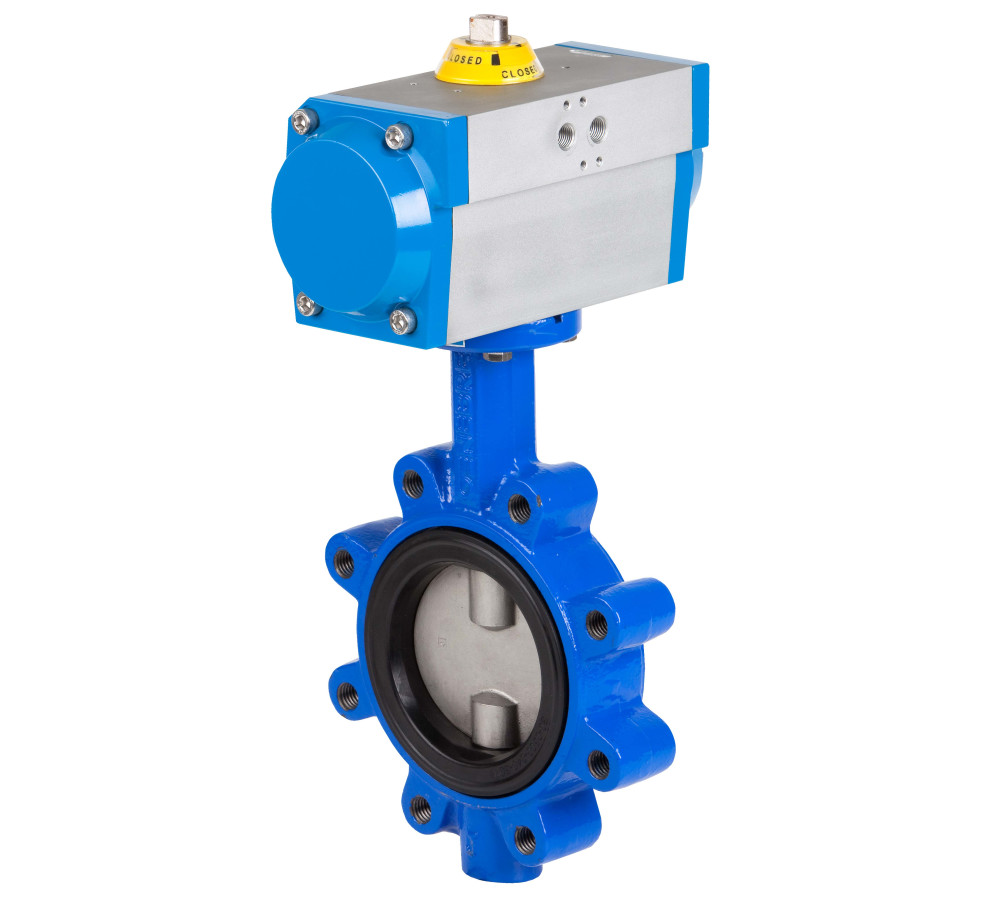

Butterfly valve LUG type (DIN flanges)

Butterfly valve LUG type (DIN flanges).
PN 16 ≤ DN 150 – PN 10 ≥ DN 200.
Body: ductile iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.
With Gen-Air actuator.

Reference: 5508

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5508 09 51 V. 2108 2" WITH GN-17/S5 1 5.8 1/1
5508 11 78 V. 2108 3" WITH GN-30/S4 1 11.37 1/1
5508 12 86 V. 2108 4" WITH GN-30/S5 1 14.67 1/1
5508 13 87 V. 2108 5" WITH GN-35/S4 1 18.8 1/1
5508 14 88 V. 2108 6" WITH GN-35/S5 1 22.72 1/1
5508 16 81 V. 2108 8" WITH GN-45 1 29.22 1/1
5508 18 95 V. 2108 10" WITH GN-50/S4 1 47.23 1/1
5508 20 90 V. 2108 12" WITH GN-55/S6 1 70.9 1/1
