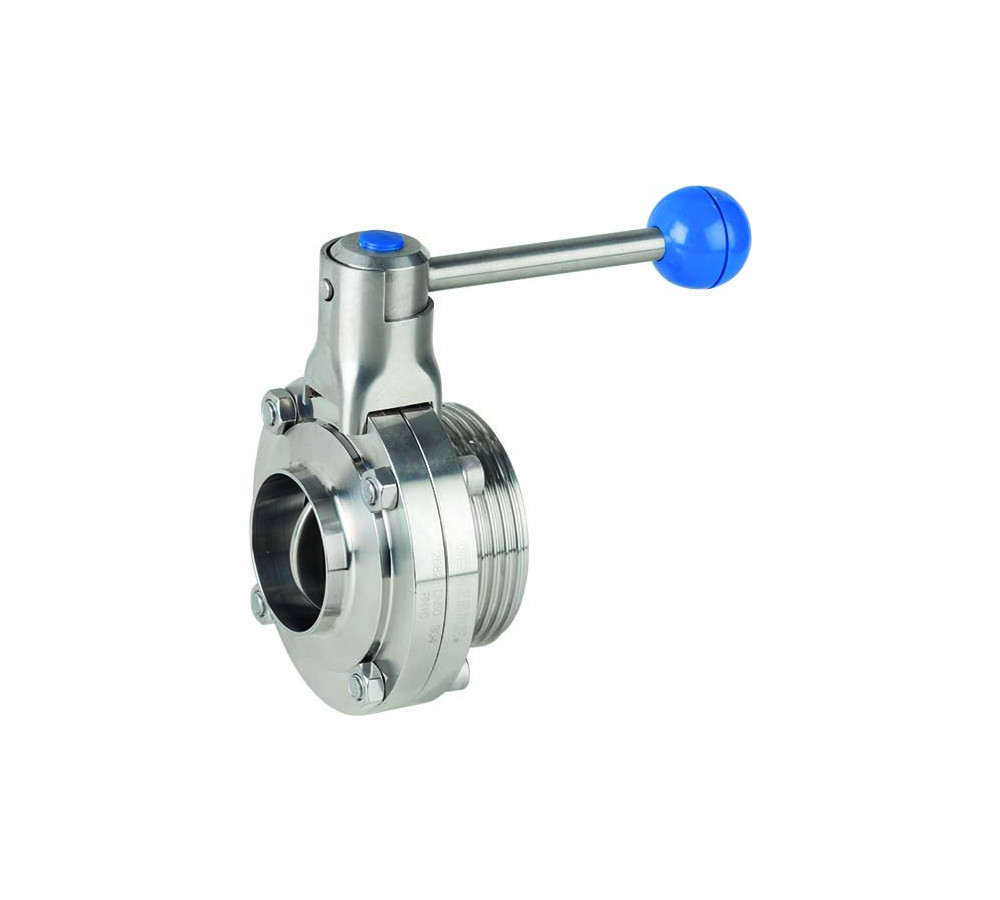

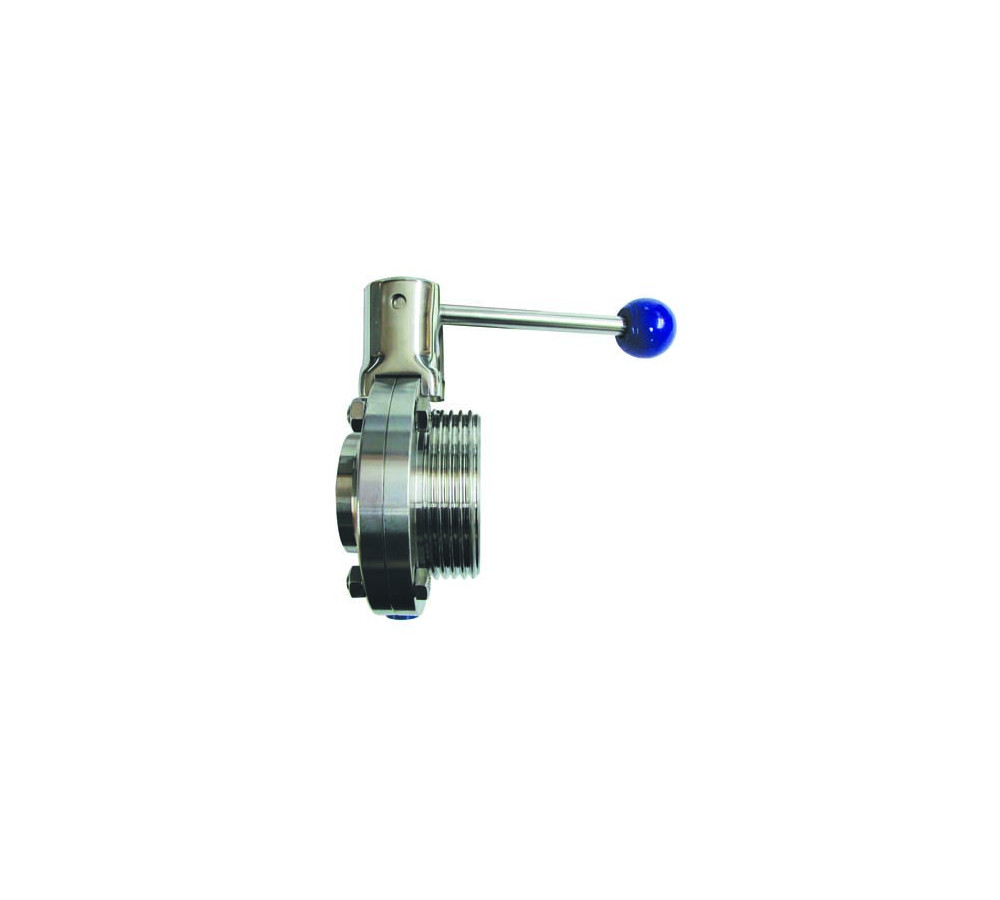

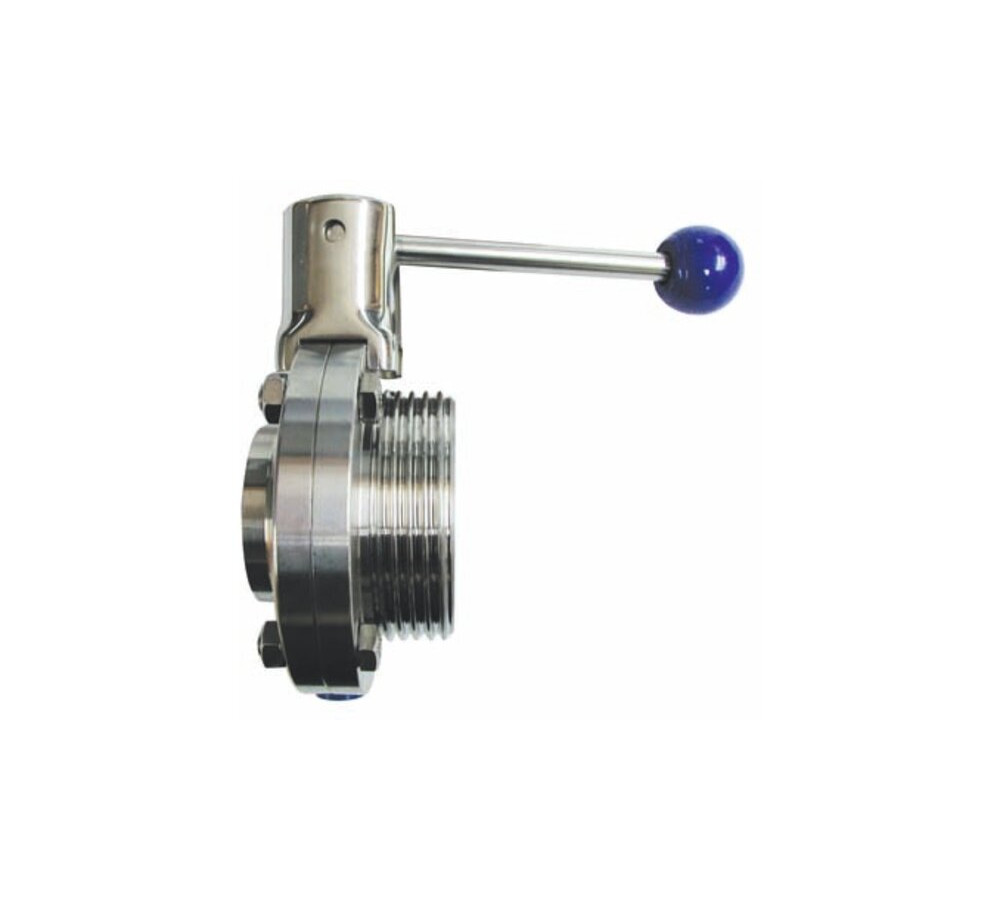

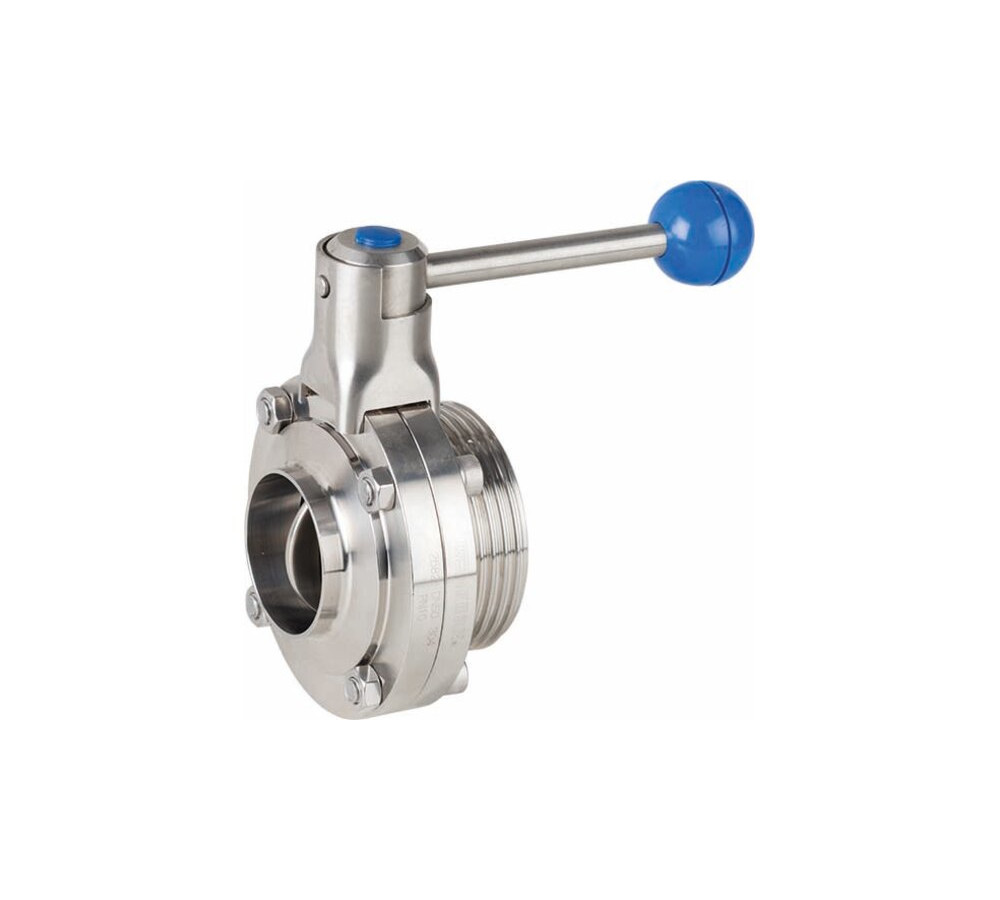

Butterfly valve end threaded/welded

Stainless steel body AISI 304. EPDM elastomer (other material please consult us). End threaded DIN 11851/welded. Max. working pressure 10 bar. Max. temp.: 120ºC. Manually operated: 3 position.

Reference: 2942E

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2942E 06 BUTTERFLY V.END THREAD/WELD 1" 1 1.198 2/16
2942E 07 BUTTERFLY V.END THR/WEL 1 1/4" 1 1.434 2/16
2942E 08 BUTTERFLY V.END THR/WEL 1 1/2" 1 1.5 2/16
2942E 09 BUTTERFLY V.END THREAD/WELD 2" 1 2.1 2/12
2942E 10 BUTTERFLY V.END THR/WEL 2 1/2" 1 2.669 2/8
2942E 11 BUTTERFLY V.END THRE/WELD 3" 1 3.13 2/6
2942E 12 BUTTERFLY V.END THRE/WELD 4" 1 4.148 2/4
