Butterfly valve DIN LUG type

PN 16 ≤ DN 150 – PN 10 ≥ DN 200.

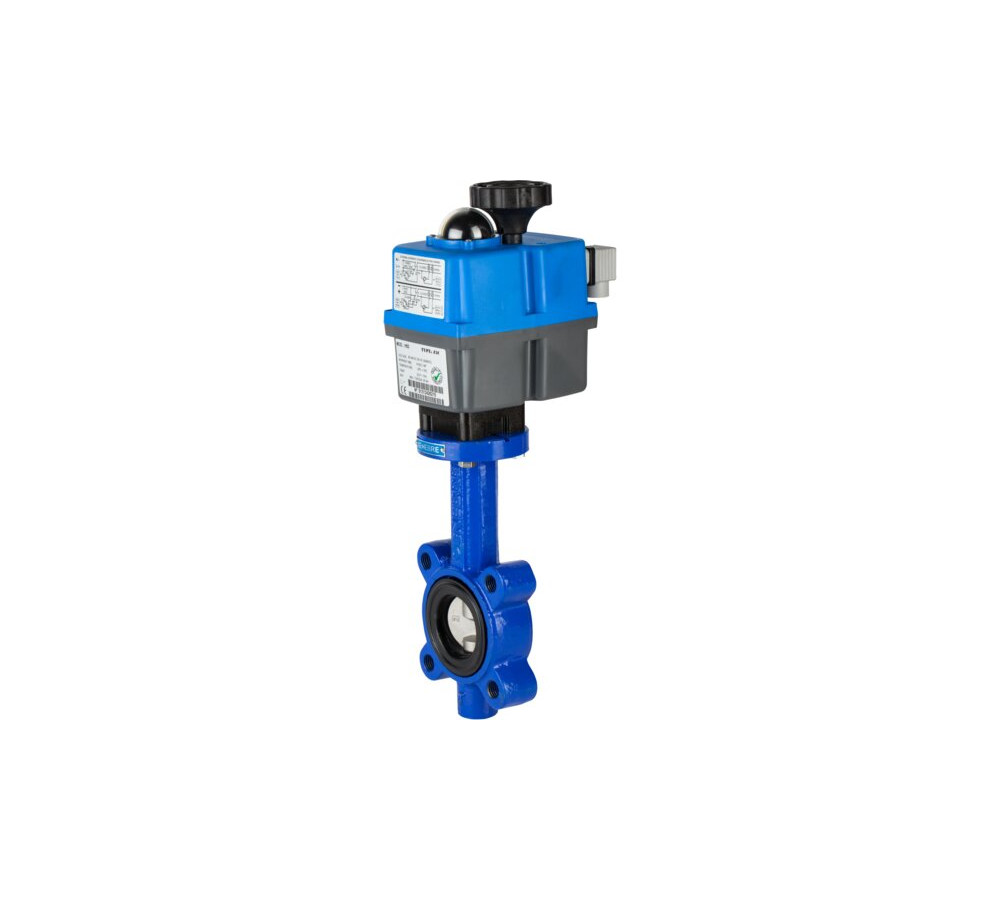

Butterfly valve DIN LUG type.
Body: ductile iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.
With GE multivoltage electric rotary actuator.
Required voltage must be specified.

Reference: 5608

Actuator single phase data sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5608 09 52 V. 2108 2" WITH GE-1 24/240V 1 6.7 1/1
5608 10 52 V. 2108 2"1/2 WITH GE-1 24/240V 1 7.3 1/1
5608 11 52 V. 2108 3" WITH GE-1 24/240V 1 9.34 1/1
5608 12 52 V. 2108 4" WITH GE-1 24/240V 1 10.9 1/1
5608 13 48 V. 2108 5" WITH GE-15 24/240V 1 13.3 1/1
5608 14 53 V. 2108 6" WITH GE-2 80/240V 1 18.5 1/1
5608 16 54 V. 2108 8" WITH GE-2+ 80/240V 1 23.4 1/1
