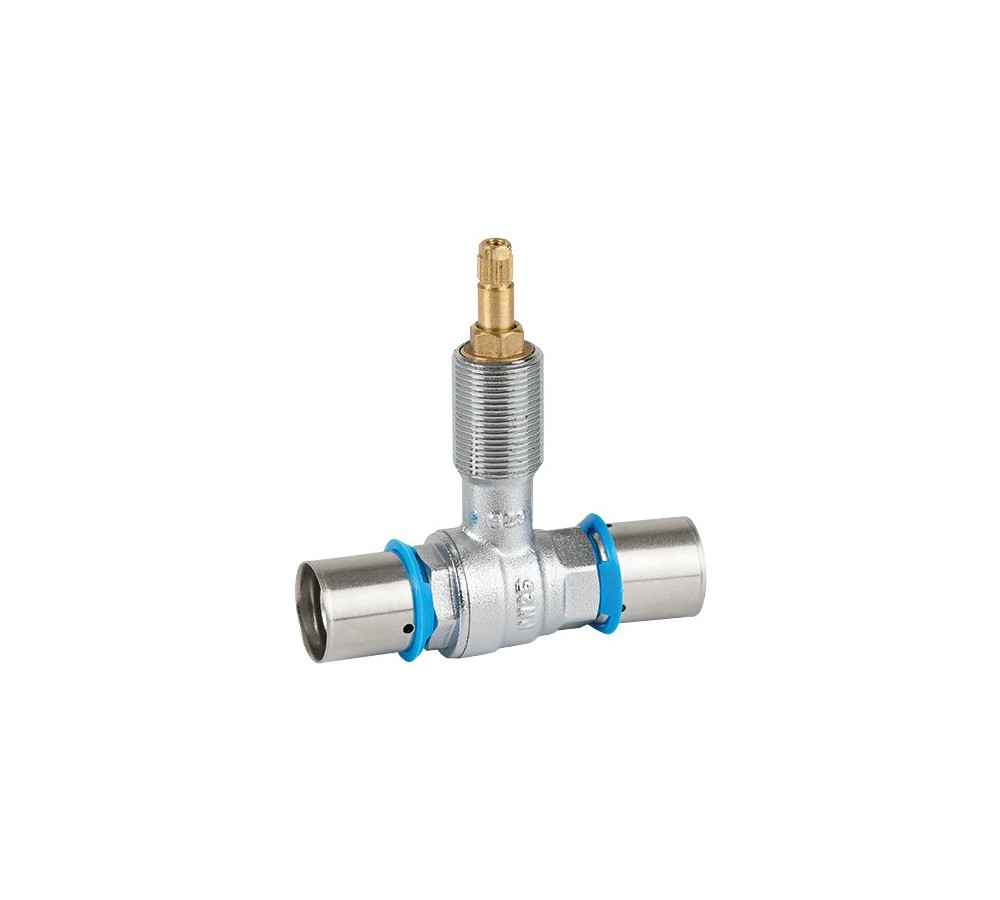

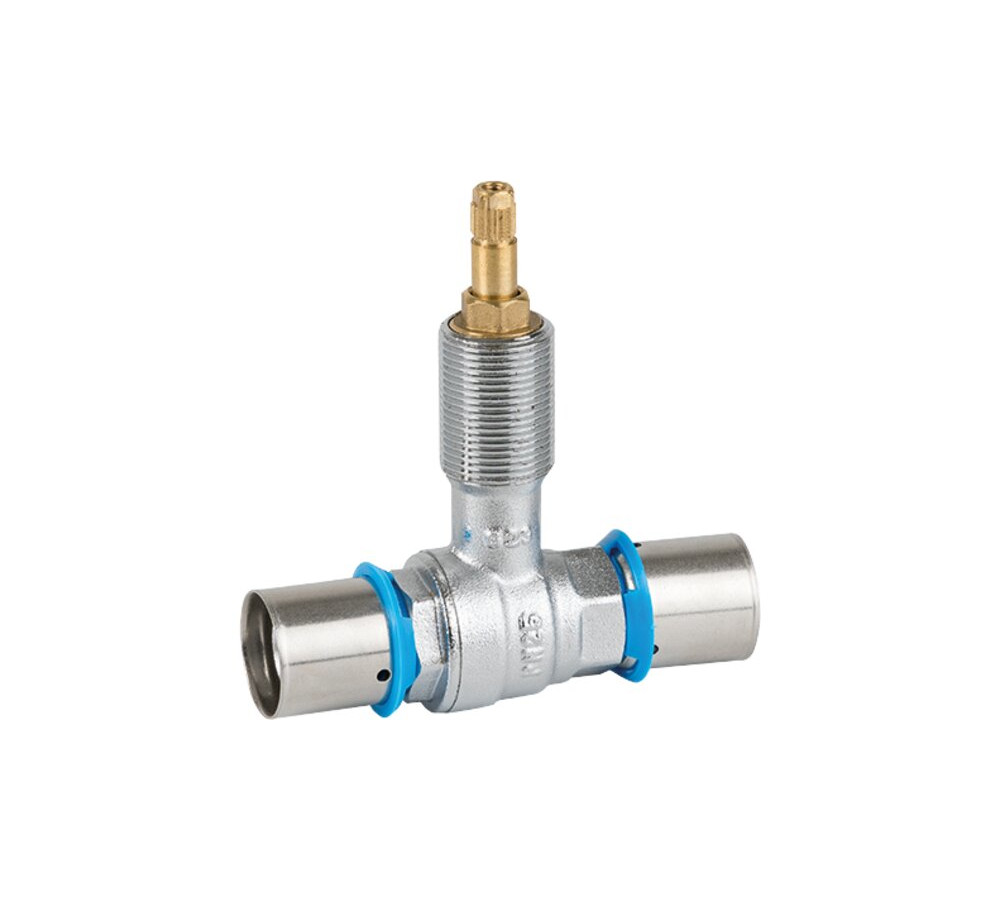

Pex and Multilayer Pipe Fitting Valves with press bushings

PN 25. Standard bore. Chrome-plated brass construction according to UNE-EN 12165. PTFE seats. AISI 304 stainless steel press bushes. Anti-electrolysis ring. EPDM seals. Max. temp. 110ºC.

Reference: 3183

See Technical Sheet

Consult product

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
3183 16	BUILT-IN V. PEX& MULTILAYER 16	12	0.18	12/120
3183 20	BUILT-IN V. PEX& MULTILAYER 20	8	0.22	8/80
3183 25	BUILT-IN V. PEX& MULTILAYER 25	8	0.335	8/64
