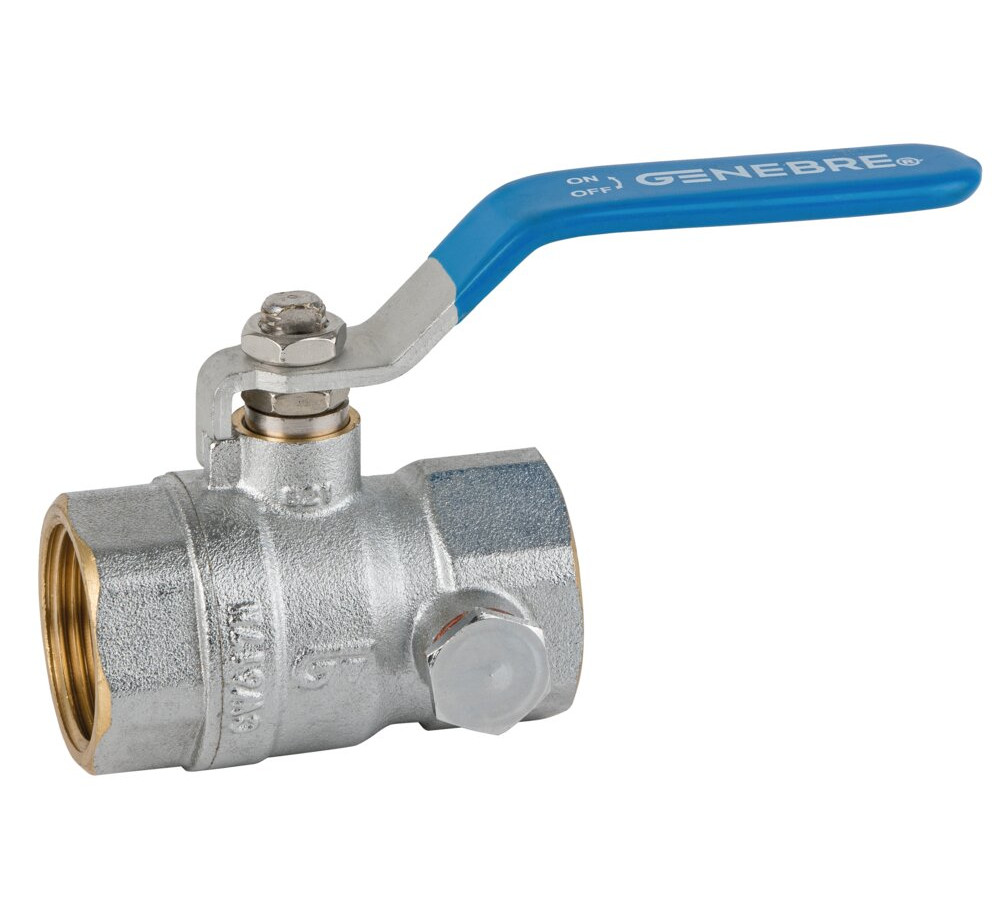

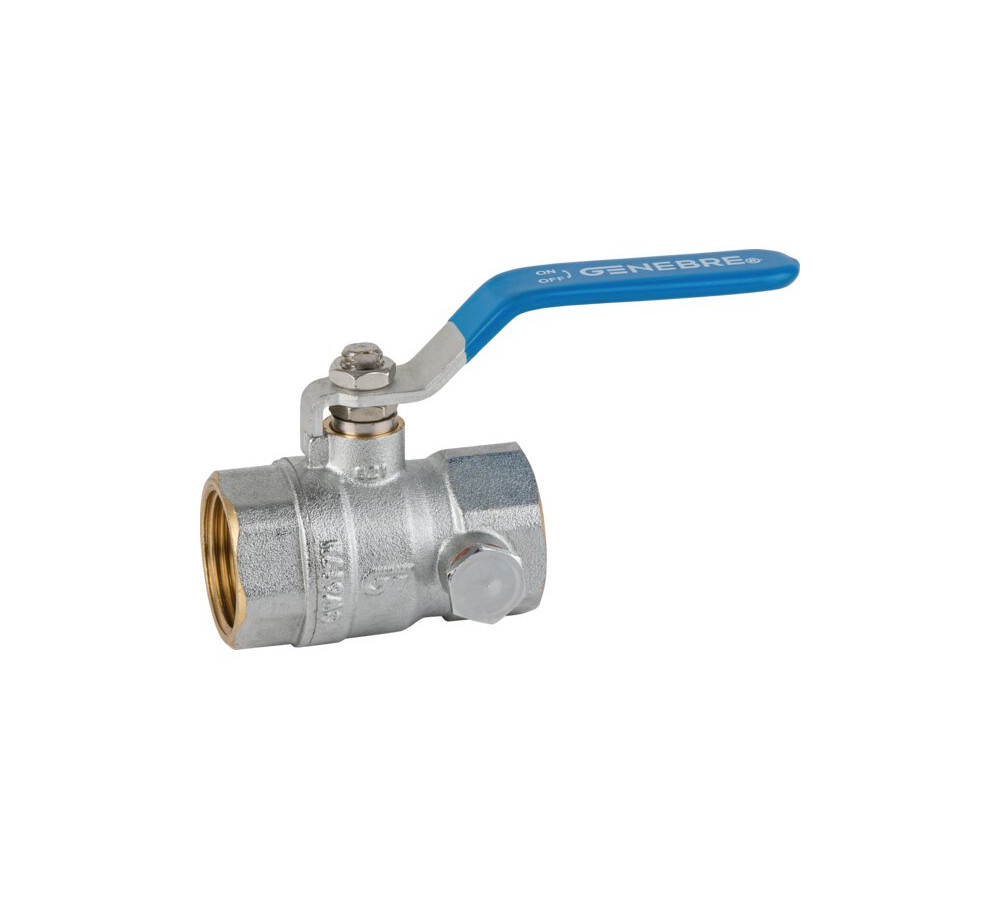

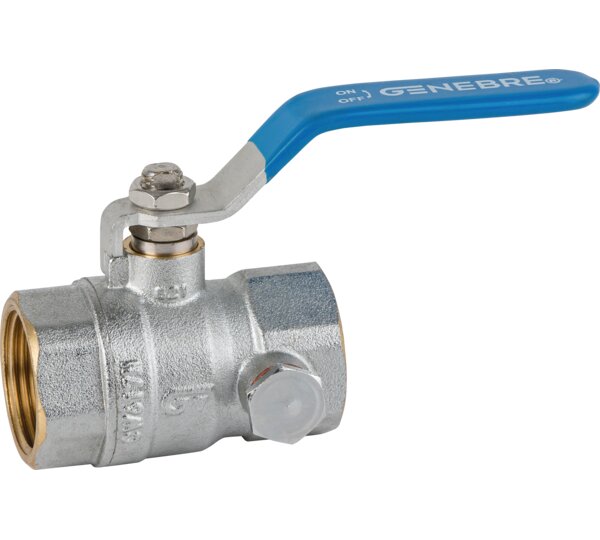

Ball valve with side inlets

PN 25. Full bore. Body chrome plated brass UNE-EN 12165. PTFE seats. Gas threaded ends (BSP) F-F - ISO 228/1. Max. temp. 110ºC. Steel lever manual control. Two-sided 1/4” inlet - plug on one side.

Reference: 3032

See Technical Sheet

Consult product

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
3032 02	BALL VALVE SIDE INLET 1/4"	1	0	1/1
3032 04	BALL VALVE SIDE INLET 1/2"	10	0.179	10/100
3032 05	BALL VALVE SIDE INLET 3/4"	8	0.294	8/80
3032 06	BALL VALVE SIDE INLET 1"	5	0.415	5/50
