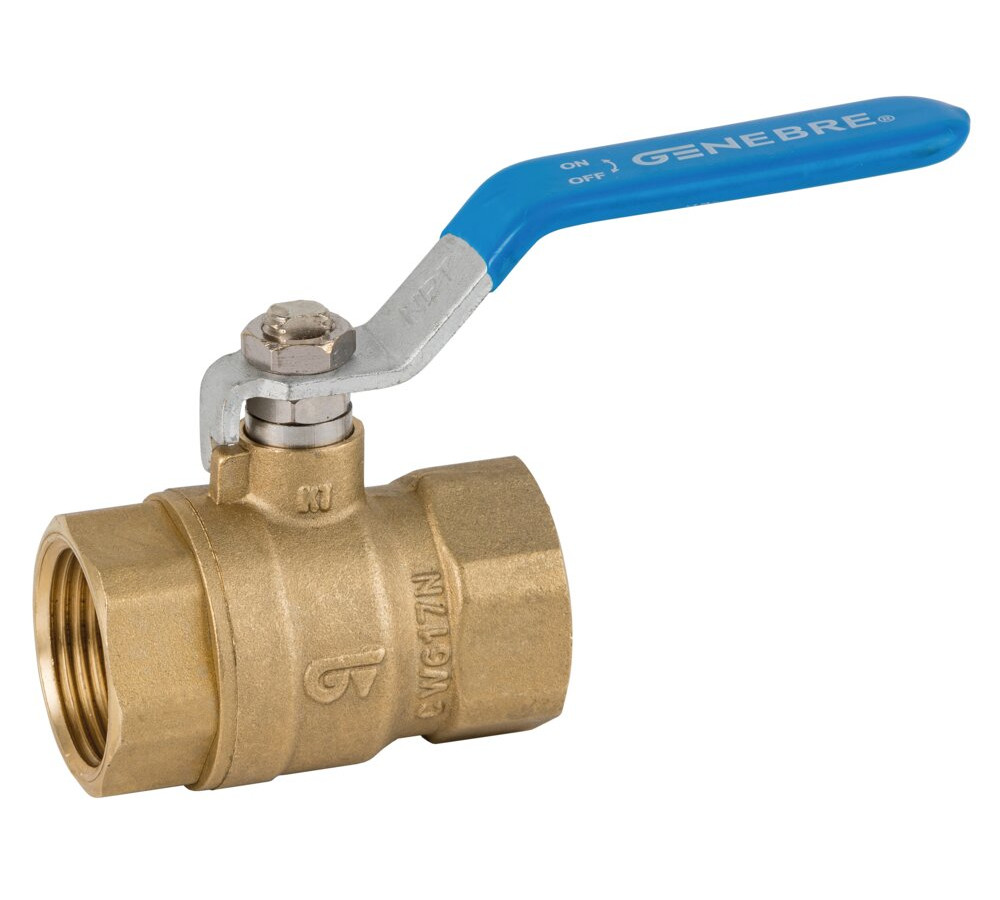

Ball valve without chrome plating NPT thread

400 WOG. Full bore. Brass construction UNE-EN 12165. PTFE seats. NPT threaded ends - F-F ANSI B 1.20.1. Max. temperature 110ºC. Steel lever manual control.

Reference: 3017N

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3017N 02 BALL VALVE NPT THREAD 1/4" 8 0.104 8/192
3017N 03 BALL VALVE NPT THREAD 3/8" 8 0.1 8/192
3017N 04 BALL VALVE NPT THREAD 1/2" 8 0.152 8/144
3017N 05 BALL VALVE NPT THREAD 3/4" 8 0.258 8/96
3017N 06 BALL VALVE NPT THREAD 1" 6 0.385 6/72
3017N 07 BALL VALVE NPT THREAD 1"1/4 4 0.601 4/48
3017N 08 BALL VALVE NPT THREAD 1"1/2 2 0.835 2/24
3017N 09 BALL VALVE NPT THREAD 2" 2 1.324 2/18
3017N 10 BALL VALVE NPT THREAD 2 1/2" 4 2.603 4/8
3017N 11 BALL VALVE NPT THREAD 3" 2 4.091 2/4
3017N 12 BALL VALVE NPT THREAD 4" 1 6.116 1/2
