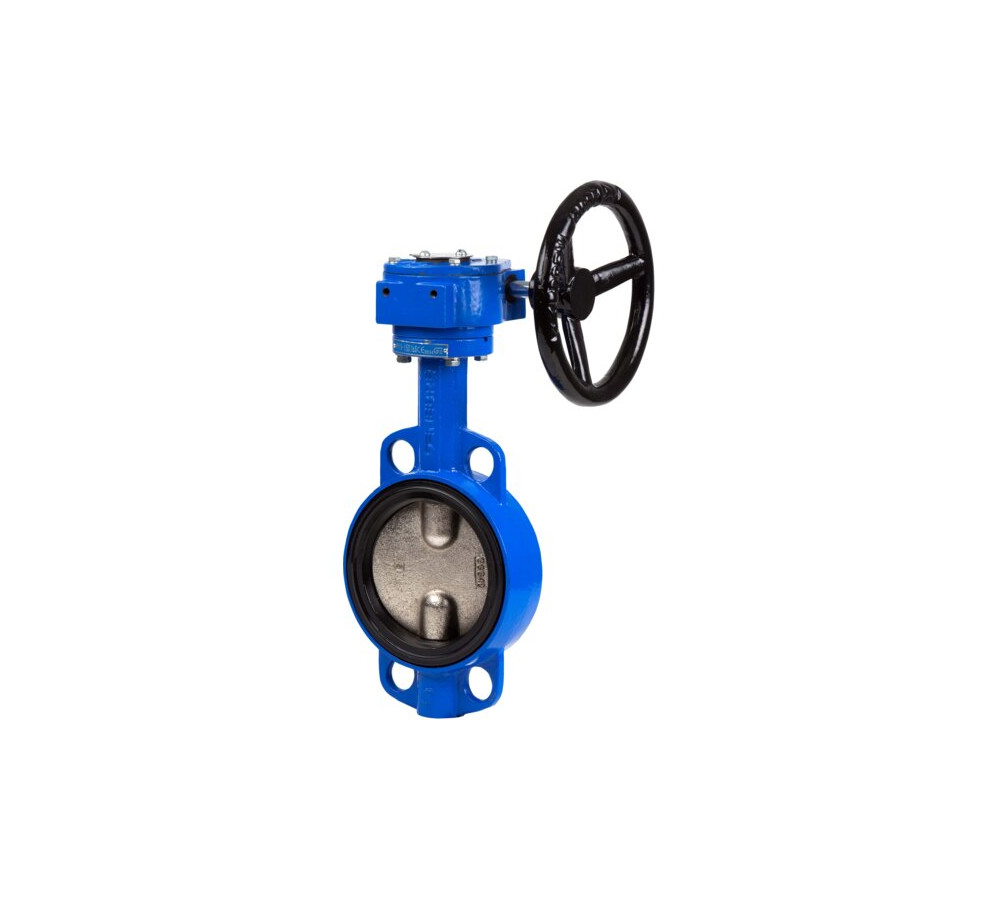

Wafer type butterfly valve ref: 2109 PN 10/16. ANSI 150 lbs with gear operator.

Body: cast iron + epoxy. Disk: stainless steel AISI 316.
Elastomer: EPDM. O’ring stem: NBR. Max. temp. 120ºC.
Flanges mounted actuators ISO 5211.
With gear operator.

Reference: 5109

WRAS
See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5109 09 V. WITH GEAR OPERATOR 2" 1 8.5 1/1
5109 10 V. WITH GEAR OPERATOR 2 1/2" 1 8.84 1/1
5109 11 V. WITH GEAR OPERATOR 3" 1 8.41 1/1
5109 12 V. WITH GEAR OPERATOR 4" 1 11 1/1
5109 13 V. WITH GEAR OPERATOR 5" 1 13 1/1
5109 14 V. WITH GEAR OPERATOR 6" 1 12.5 1/1
5109 16 V. WITH GEAR OPERATOR 8" 1 26.6 1/1
5109 18 V. WITH GEAR OPERATOR 10" 1 24.2 1/1
