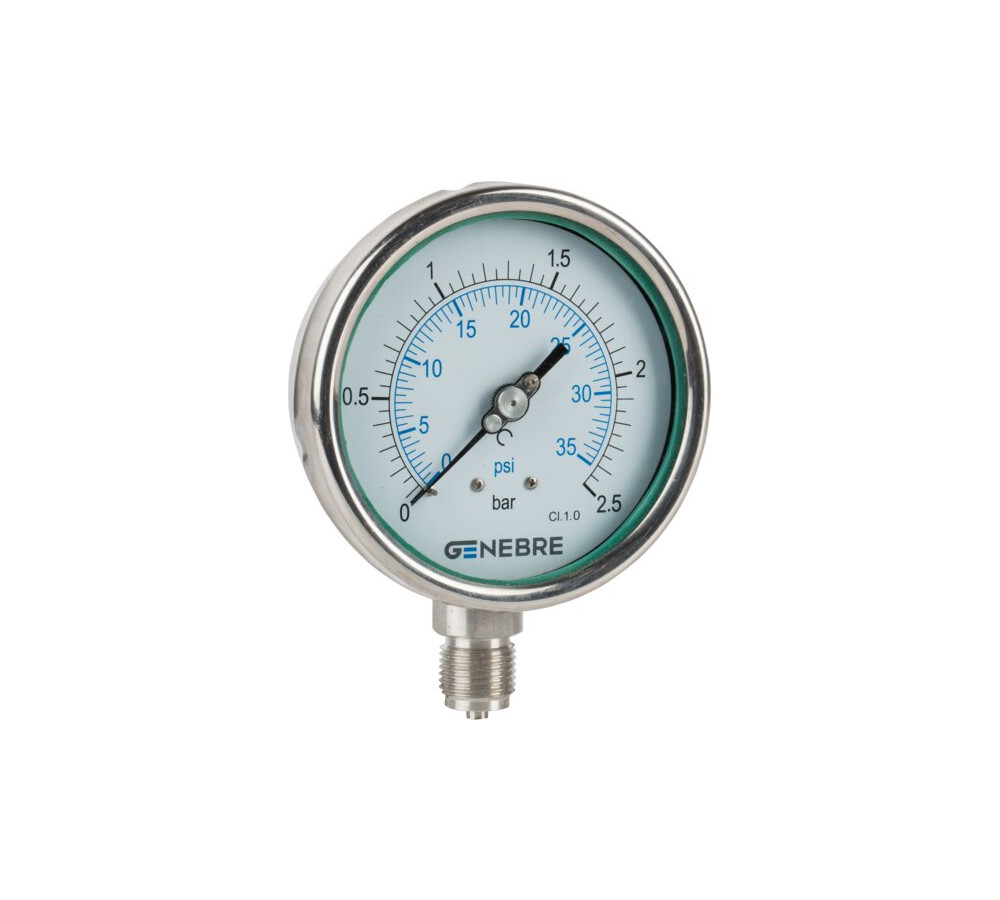

Pressure gauge

D = 100 stainless steel 304, ring: bayonet.
Needle: micrometer.
Double scale: psi/ bar.
Bottom entry 1/2”.
Class: 1,0.
Glass laminate sight.
Available optional with glycerine.

Reference: 8012

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
8012 001 SS INDUSTRIAL PRESSURE GAUGE D100 0-1 BAR 1 0.484 1/25
8012 002 SS INDUSTRIAL PRESSURE GAUGE D100 0-2 BAR 1 0.486 1/25
8012 006 SS INDUSTRIAL PRESSURE GAUGE D100 0-6 BAR 1 0.486 1/25
8012 010 SS INDUSTRIAL PRESSURE GAUGE D100 0-10 BAR 1 0.49 1/25
8012 016 SS INDUSTRIAL PRESSURE GAUGE D100 0-16 BAR 1 0.492 1/25
8012 025 SS INDUSTRIAL PRESSURE GAUGE D100 0-25 BAR 1 0.487 1/25
8012 060 SS INDUSTRIAL PRESSURE GAUGE D100 0-60 BAR 1 0.49 1/25
8012 100 SS INDUSTRIAL PRESSURE GAUGE D100 0-100 BAR 1 0.499 1/25
8012 250 SS INDUSTRIAL PRESSURE GAUGE D100 0-250 BAR 1 0.489 1/25
8012 600 SS INDUSTRIAL PRESSURE GAUGE D100 0-600 BAR 1 0.493 1/25
