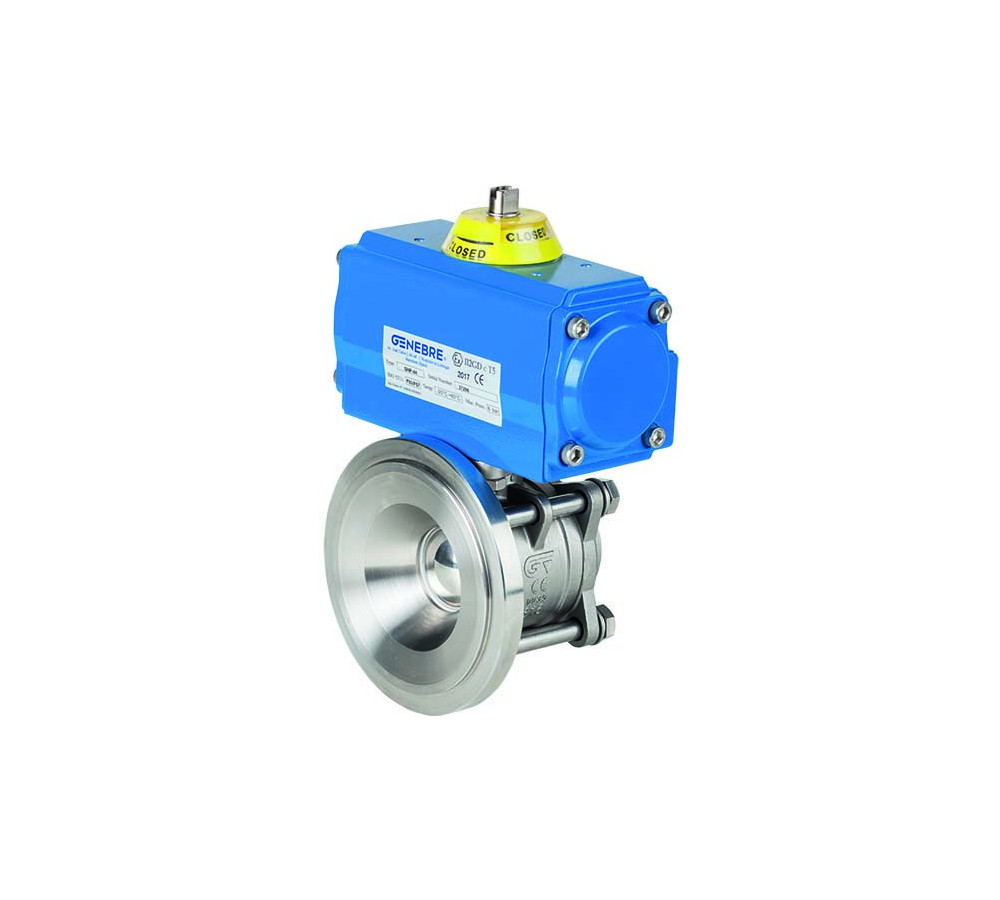

Tank bottom full bore ball valve

Tank bottom full bore ball valve.
Const. stainless steel CF8M (316) and 316l (tank bottom).
Ends: gas thread ISO 7-1 (EN 10226-1) and tank bottom.
Seats: PTFE + 15% FV. O’ring stem: viton. PN 63.
Temp. -25ºC +180ºC. Direct assembling ISO 5211.
Manually operated by handle with locking system.
With GNP actuator.

Reference: 5052

GNP Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5052 04 126 V. 2052 1/2" C/ACT. GNP-24 S4 1 1.89 1/1
5052 06 122 V. 2052 1" C/ACT.GNP-14 1 2.6 1/1
5052 06 136 V. 2052 1" C/ACT.GNP-44/S5 1 3.22 1/1
5052 07 128 V. 2052 1"1/4 C/ACT.GNP-44 1 3.92 1/1
5052 07 140 V. 2052 1"1/4 C/ACT.GNP-60 S5 1 4.65 1/1
5052 08 128 V. 2052 1"1/2 C/ACT.GNP-44 1 4.5 1/1
5052 08 144 V. 2052 1"1/2 C/ACT.GNP-94/S5 1 6.1 1/1
5052 09 128 V. 2052 2" C/ACT. GNP-44 1 5.7 1/1
5052 09 148 V. 2052 2" C/ACT. GNP-135 S5 1 9.2 1/1
5052 10 142 V. 2052 2"1/2 C/ACT. GNP-94 1 11.8 1/1
5052 10 152 V. 2052 2"1/2 C/ACT. GNP-198 S4 1 15.3 1/1
5052 11 142 V. 2052 3" C/ACT. GNP-94 1 16.7 1/1
5052 11 160 V. 2052 3" C/ACT. GNP-300 S5 1 23 1/1
5052 12 150 V. 2052 4" C/ACT. GNP-198 1 26 1/1
5052 12 164 V. 2052 4" C/ACT. GN-513 S5 1 27.5 1/1
