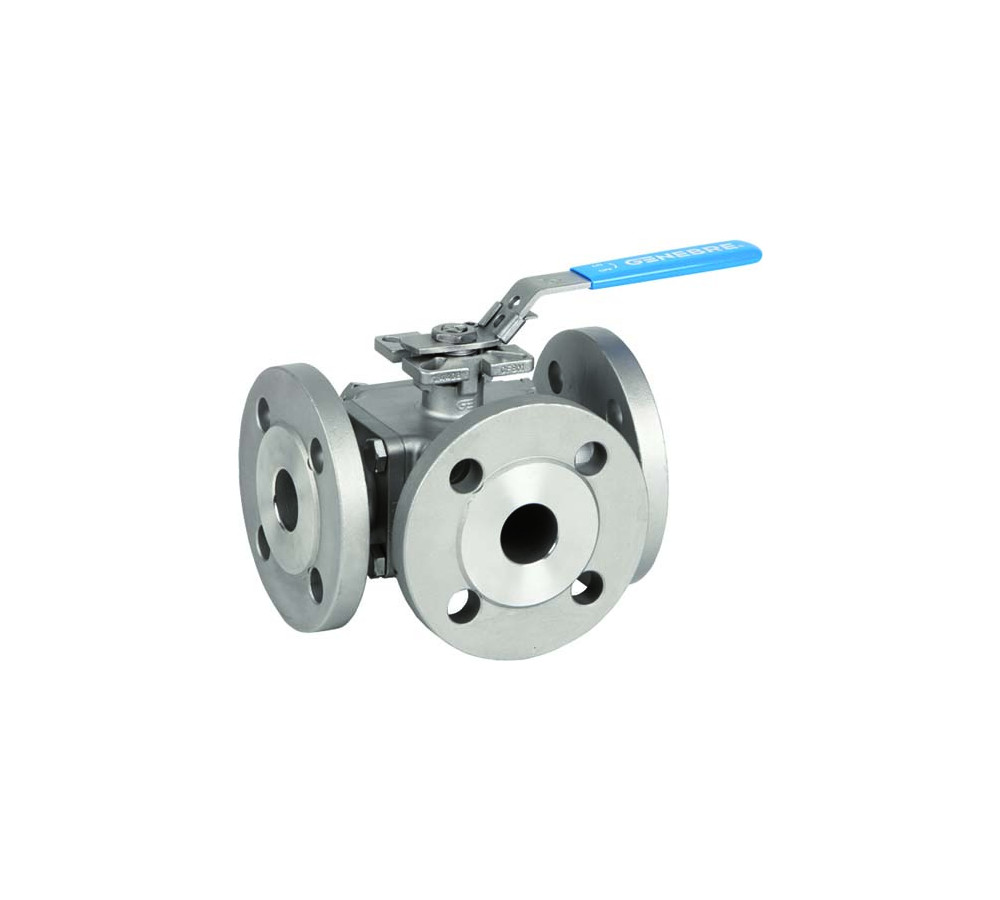

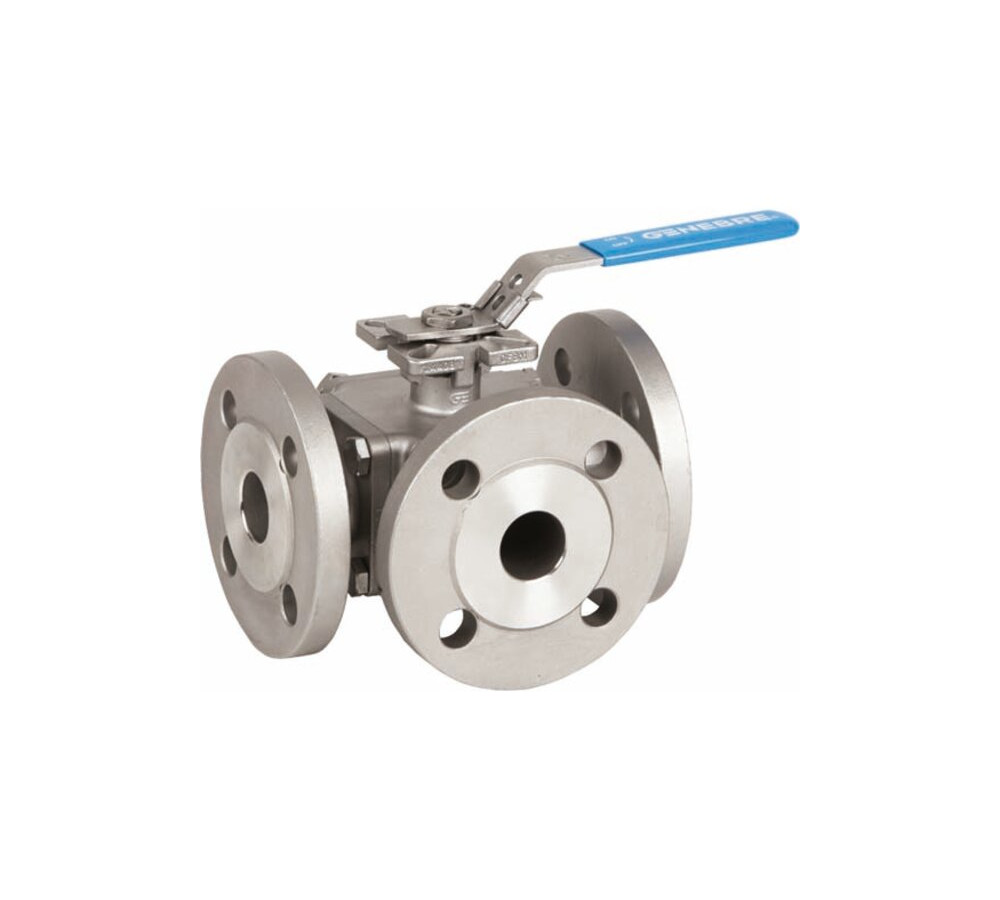

Flanges DIN PN40 < DN50. Flanges DIN PN16 > DN50 3 ways full bore ball valve. 2540E “L” bore / 2541E “T” bore

Direct mounting for actuators ISO 5211.
Body: stainless steel CF8M (316). 4 seats: PTFE + 15% GF.
Max. pressure: 16/40 kg/cm2 depending on size.
Temp.: -30ºC +180ºC. Manually operated by handle.

Reference: 2541E

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2541E 06 3WAYS FULL BORE BALL VALVE "T" 1 7.322 1/3
2541E 07 3WAYS FULL BORE BALL VALVE "T" 1 10.31 1/2
2541E 08 3WAYS FULL BORE BALL VALVE "T" 1 14.103 1/1
2541E 09 3WAYS FULL BORE BALL VALVE "T" 1 18.218 1/1
2541E 10 3WAYS FULL BORE BALL VALVE "T" 1 26.653 1/1
2541E 11 3WAYS FULL BORE BALL VALVE "T" 1 38.925 1/1
2541E 12 3WAYS FULL BORE BALL VALVE "T" 1 57.805 1/1
