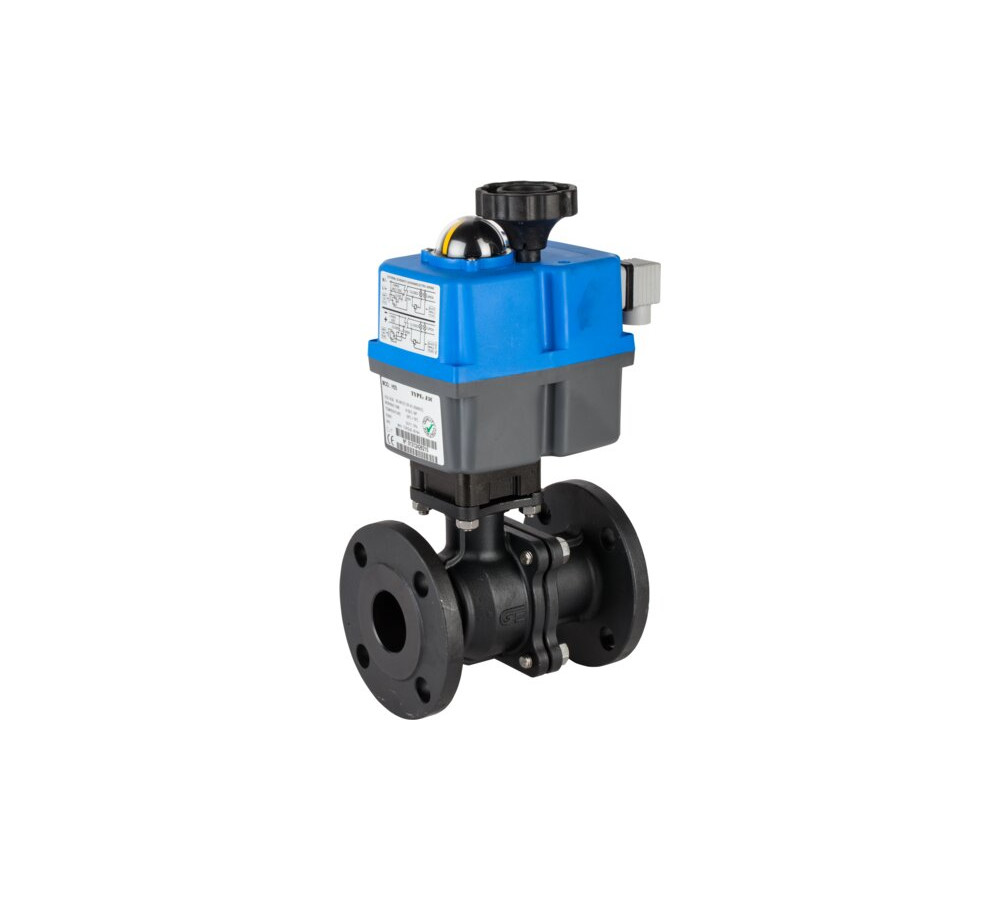

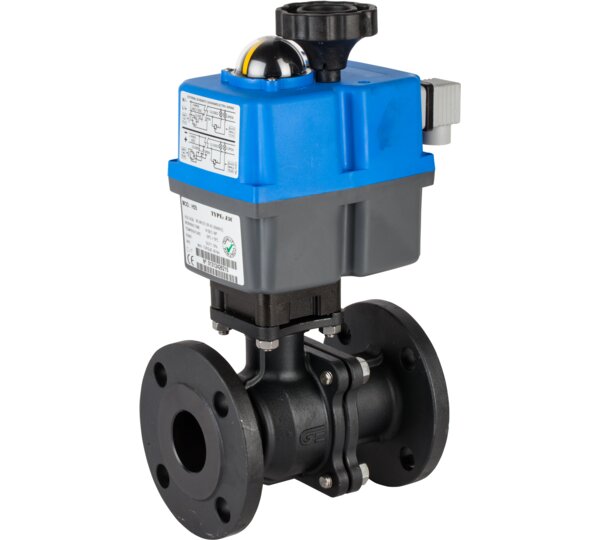

2 pieces full bore ball valve - flanged ends

2 pieces full bore ball valve - flanges ends.
Direct mounting for actuators s/ISO 5211. Fire safe design. Antiestatic device. Body: carbon steel WCB (investment casting). Ball and stem: AISI 316. Seats: PTFE + 25 % Graphite. Stem o’ring: viton. Max. pressure: 19 kg/cm2. Temp. -30ºC +220ºC. Manually operated by handle with locking system.

275 Psi -22ºF + 356ºF
With GE multivoltage electric rotary actuator.
Required voltage must be specified.

Reference: 5626A

Actuator single phase data sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5626A 04 51 V. 2526A 1/2" WITH GE-0 24/240V 1 3.45 1/1
5626A 05 51 V. 2526A 3/4" WITH GE-0 24/240V 1 4 1/1
5626A 06 51 V. 2526A 1" WITH GE-0 24/240V 1 5.8 1/1
5626A 07 51 V. 2526A 1"1/4 WITH GE-0 24/240V 1 6.65 1/1
5626A 08 47 V. 2526A 1"1/2 WITH GE-05 24/240V 1 9.25 1/1
5626A 09 52 V. 2526A 2" WITH GE-1 24/240V 1 13.4 1/1
5626A 10 52 V. 2526A 2"1/2 WITH GE-1 24/240V 1 16.75 1/1
5626A 11 48 V. 2526A 3" WITH GE-15 24/240V 1 21.2 1/1
5626A 12 53 V. 2526A 4" WITH GE-2 80/240V 1 33.25 1/1
