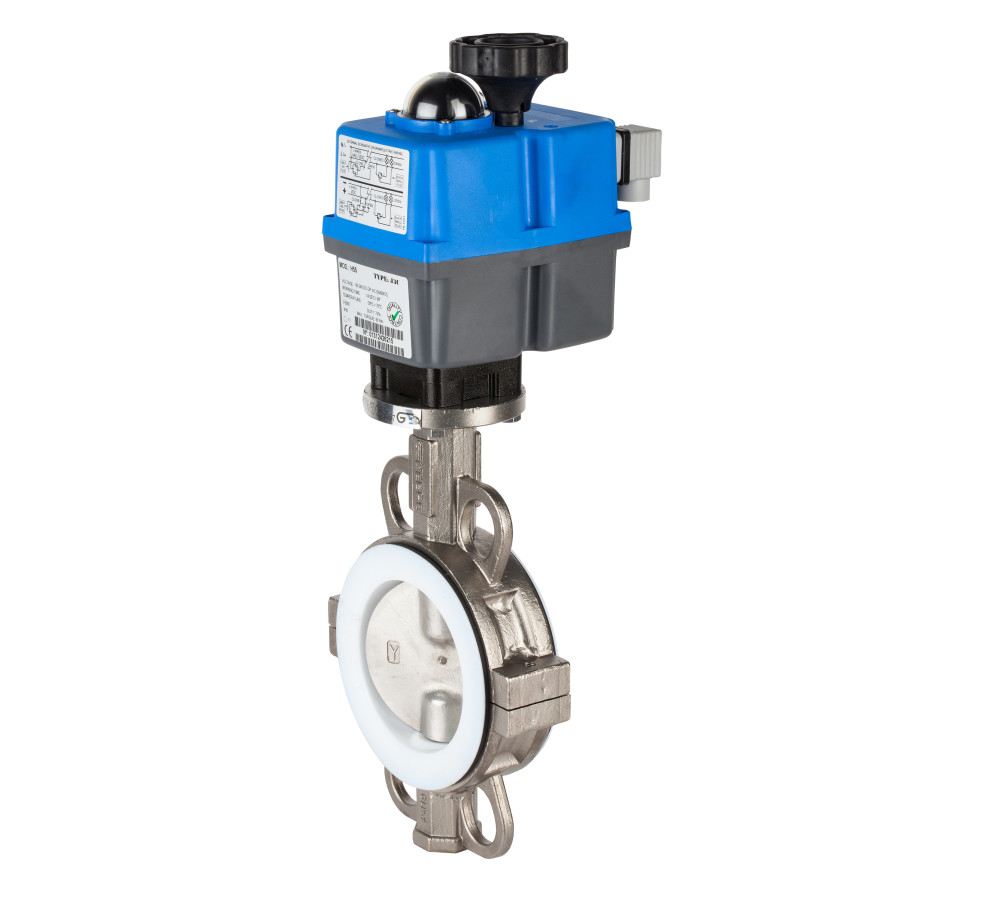

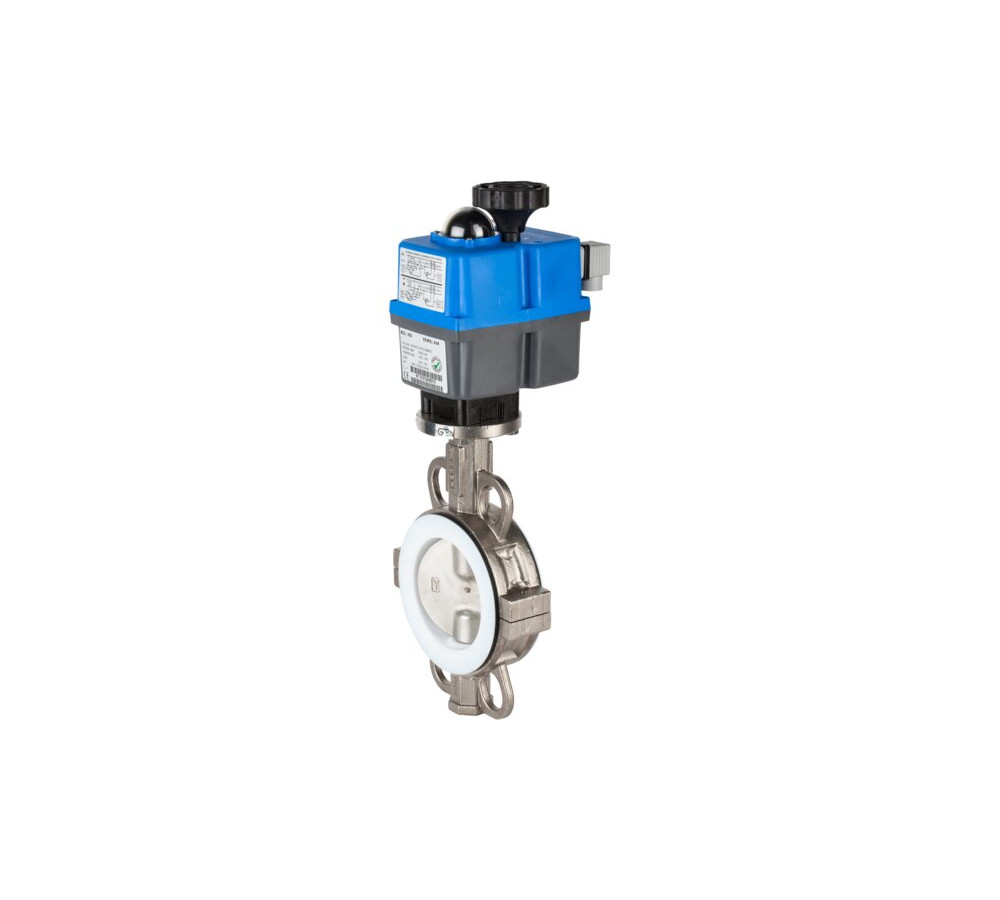

Stainless steel butterfly valve wafer type

Stainless steel butterfly valve wafer type.
Body, stem and disc: stainless steel 316 (CF8M).
Seat: PTFE with EPDM backup ring. Temp. -25ºC +180ºC.
Manually operated by stainless steel handle until 5”, from 5” with gear operator. Face to face according to DIN 3202 K1. Working pressure: 10 bar

-13ºF + 356ºF
With GE multivoltage electric rotary actuator.
Required voltage must be specified.

Reference: 5634

Valve Technical Sheet
Actuator single phase data sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5634 09 47 V. 2104 2" WITH GE-05 24/240V 1 5.4 1/1
5634 10 52 V. 2104 2"1/2 WITH GE-1 24/240V 1 6.2 1/1
5634 11 52 V. 2104 3" WITH GE-1 24/240V 1 6.7 1/1
5634 12 48 V. 2104 4" WITH GE-15 24/240V 1 9.74 1/1
5634 13 53 V. 2104 5" WITH GE-2 1 0.01 1/1
5634 14 54 V. 2104 6" WITH GE-2+ 1 15.16 1/1
