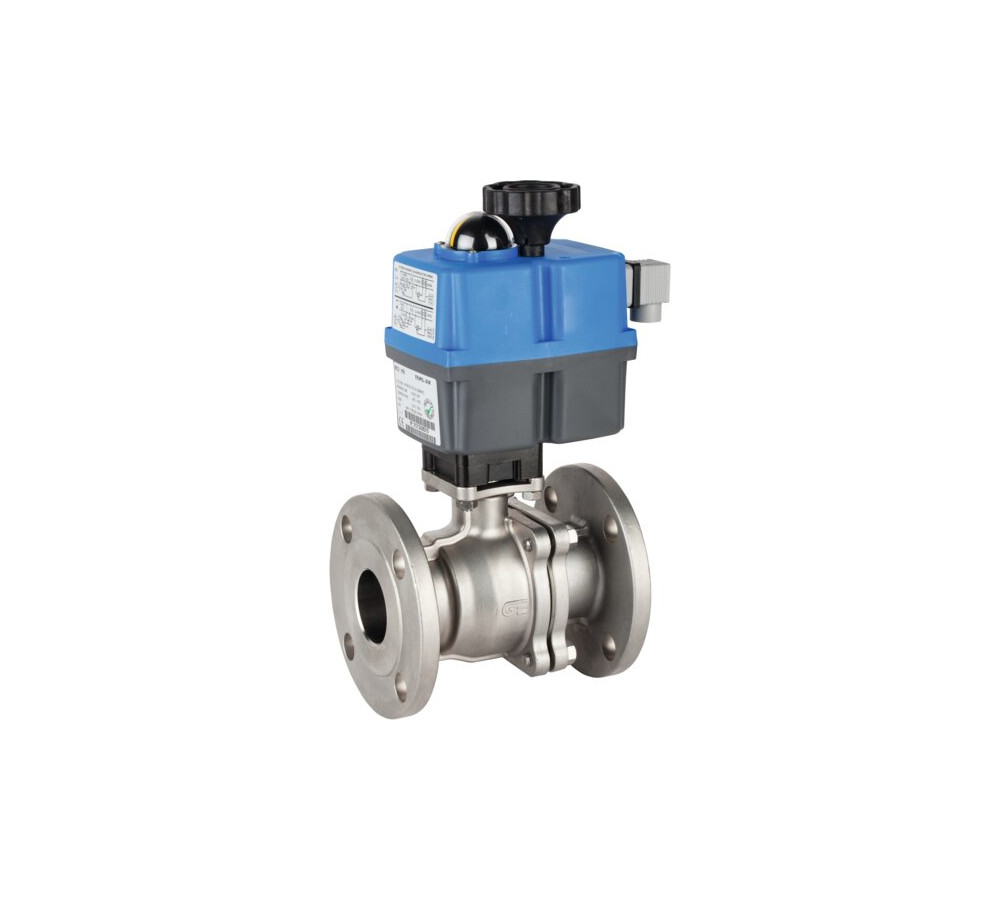

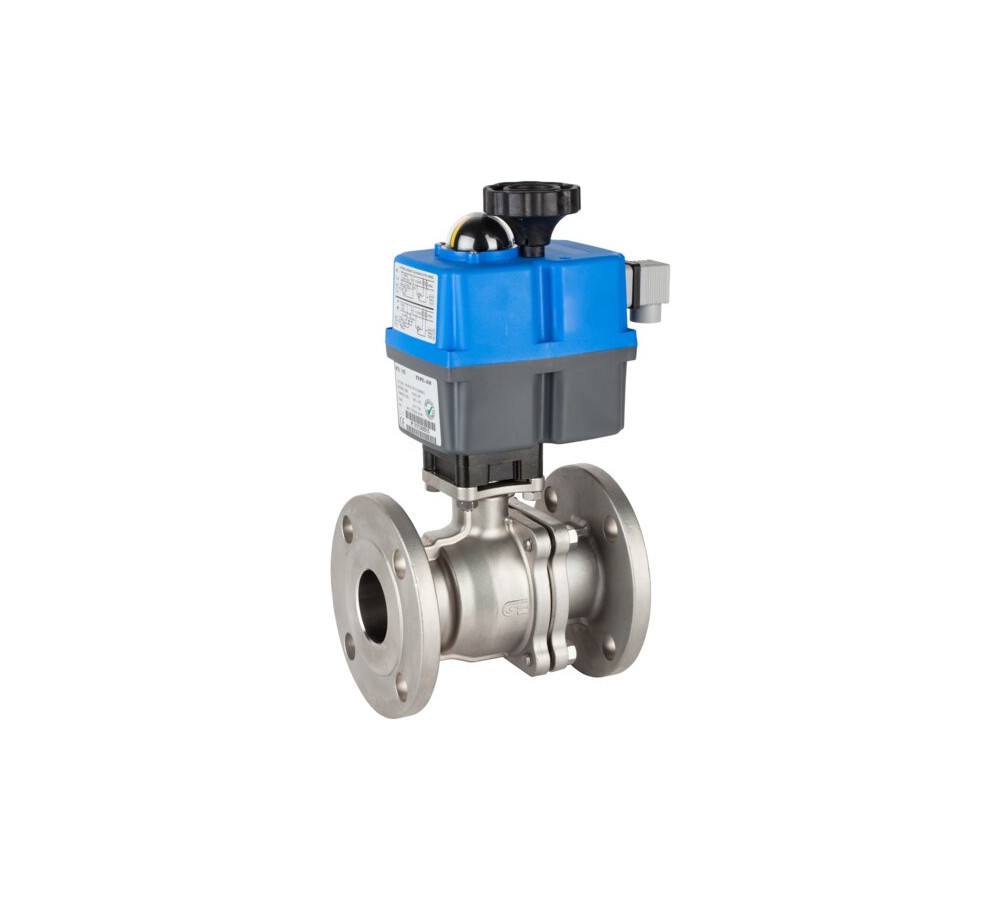

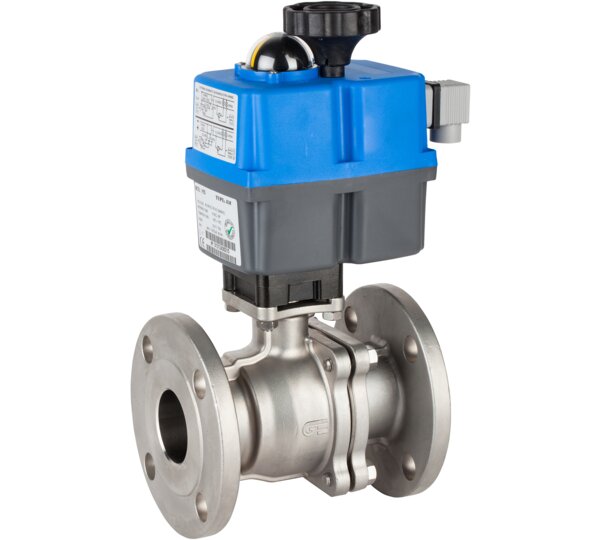

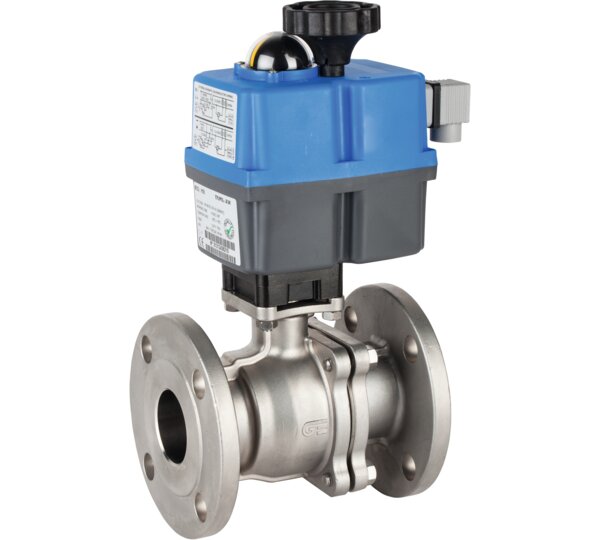

2 pieces full bore ball valve - flanges ends

2 pieces full bore ball valve - flanges ends.
Body: stainless steel CF8M (316). Seats: PTFE + 15% GF. Max. pressure: 19 kg/cm2. Temp.: -30ºC +180ºC. Manually operated by handle.

275 Psi -22ºF + 356ºF
With GE multivoltage electric rotary actuator.
Required voltage must be specified.

Reference: 5628A

Actuator single phase data sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5628A 04 51 V. 2528A 1/2" WITH GE-0 24/240V 1 3.45 1/1
5628A 05 51 V. 2528A 3/4" WITH GE-0 24/240V 1 4 1/1
5628A 06 51 V. 2528A 1" WITH GE-0 24/240V 1 5.8 1/1
5628A 07 51 V. 2528A 1"1/4 WITH GE-0 24/240V 1 0.001 1/1
5628A 08 47 V. 2528A 1"1/2 WITH GE-05 24/240V 1 7.05 1/1
5628A 09 52 V. 2528A 2" WITH GE-1 24/240V 1 10.2 1/1
5628A 10 52 V. 2528A 2"1/2 WITH GE-1 24/240V 1 0.001 1/1
5628A 11 48 V. 2528A 3" WITH GE-15 24/240V 1 21.2 1/1
5628A 12 53 V. 2528A 4" WITH GE-2 80/240V 1 33.25 1/1
