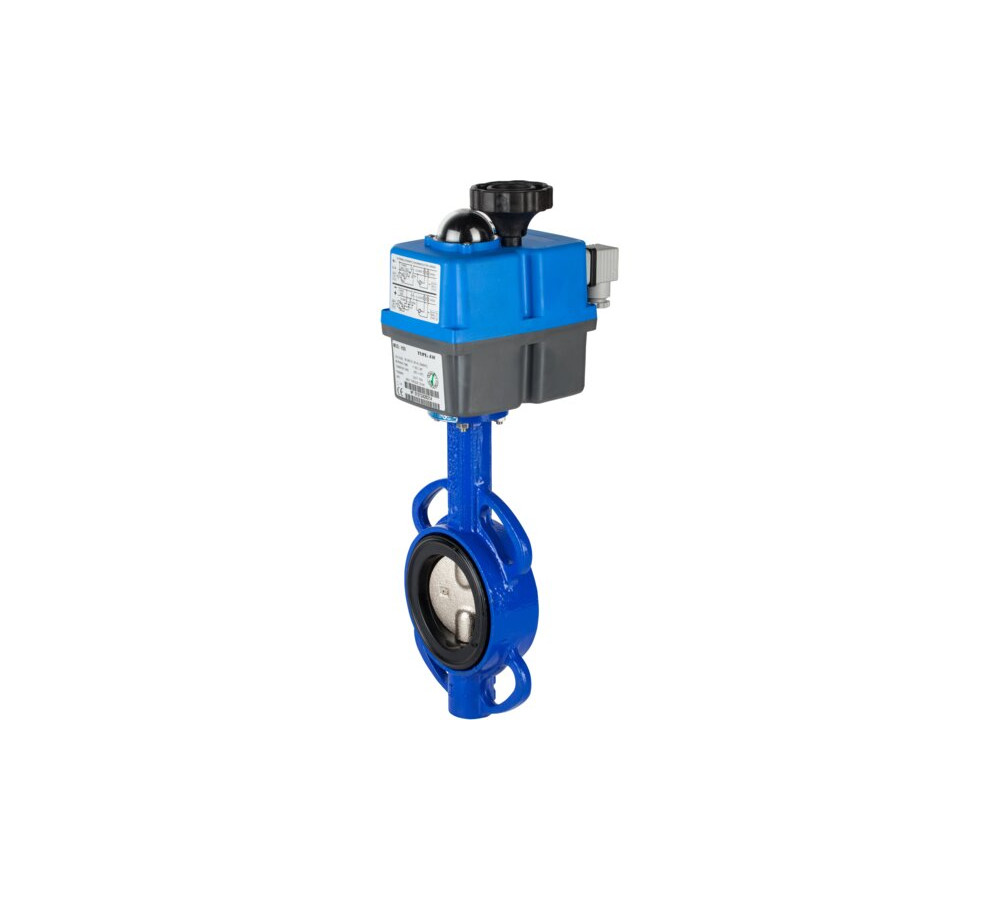

Wafer type butterfly valve

Wafer type butterfly valve.
Body: cast iron + epoxy. Disk: zinc plated. Elastomer: EPDM. O’ring stem: NBR.
Max. temp. 120ºC. Flanges mounted actuators ISO 5211 handle up to 10” with gear operator from 12”.

-4ºF + 248ºF
With GE multivoltage electric rotary actuator.
Required voltage must be specified.

Reference: 5633

Actuator single phase data sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5633 09 52 V. 2103 2" WITH GE-1 24/240V 1 6.3 1/1
5633 10 52 V. 2103 2"1/2 WITH GE-1 24/240V 1 7.2 1/1
5633 11 52 V. 2103 3" WITH GE-1 24/240V 1 7.54 1/1
5633 12 48 V. 2103 4" WITH GE-15 24/240V 1 10 1/1
5633 12 52 V. 2103 4" WITH GE-1 24/240V 1 7.5 1/1
5633 13 48 V. 2103 5" WITH GE-15 24/240V 1 11.2 1/1
5633 14 53 V. 2103 6" WITH GE-2 80/240V 1 15.3 1/1
5633 16 54 V. 2103 8" WITH GE-2+ 80/240V 1 17.65 1/1
