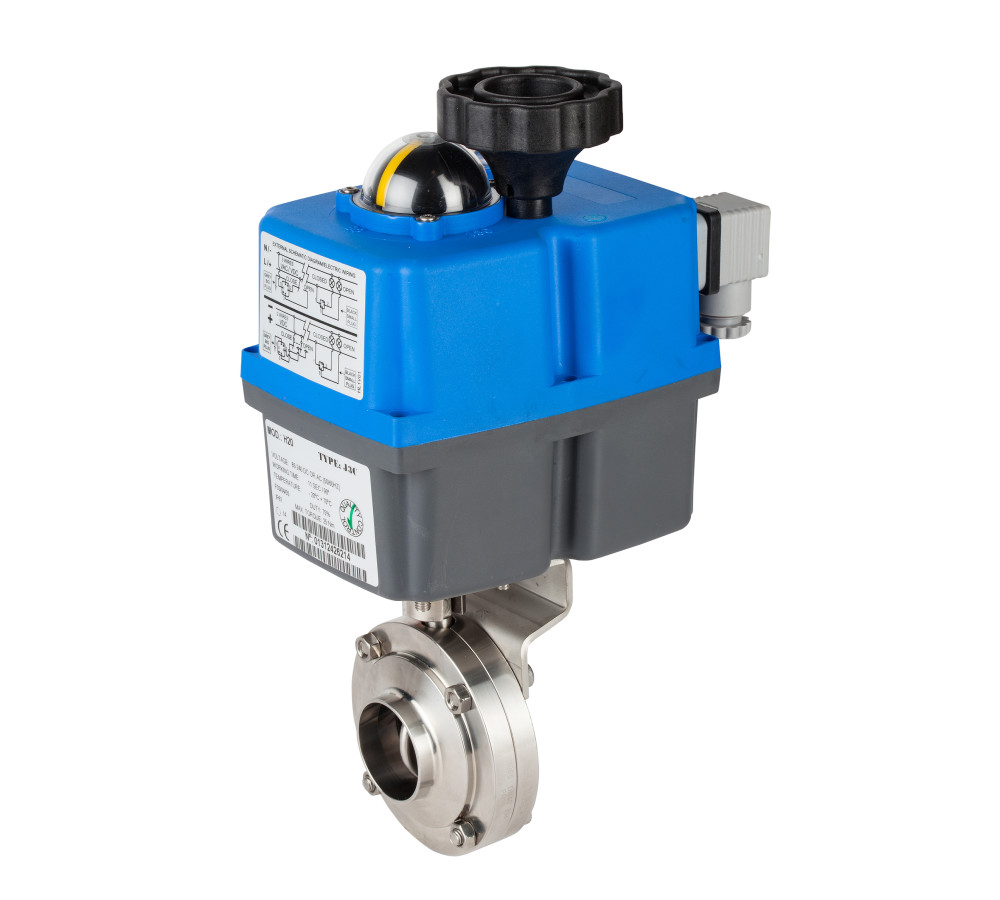

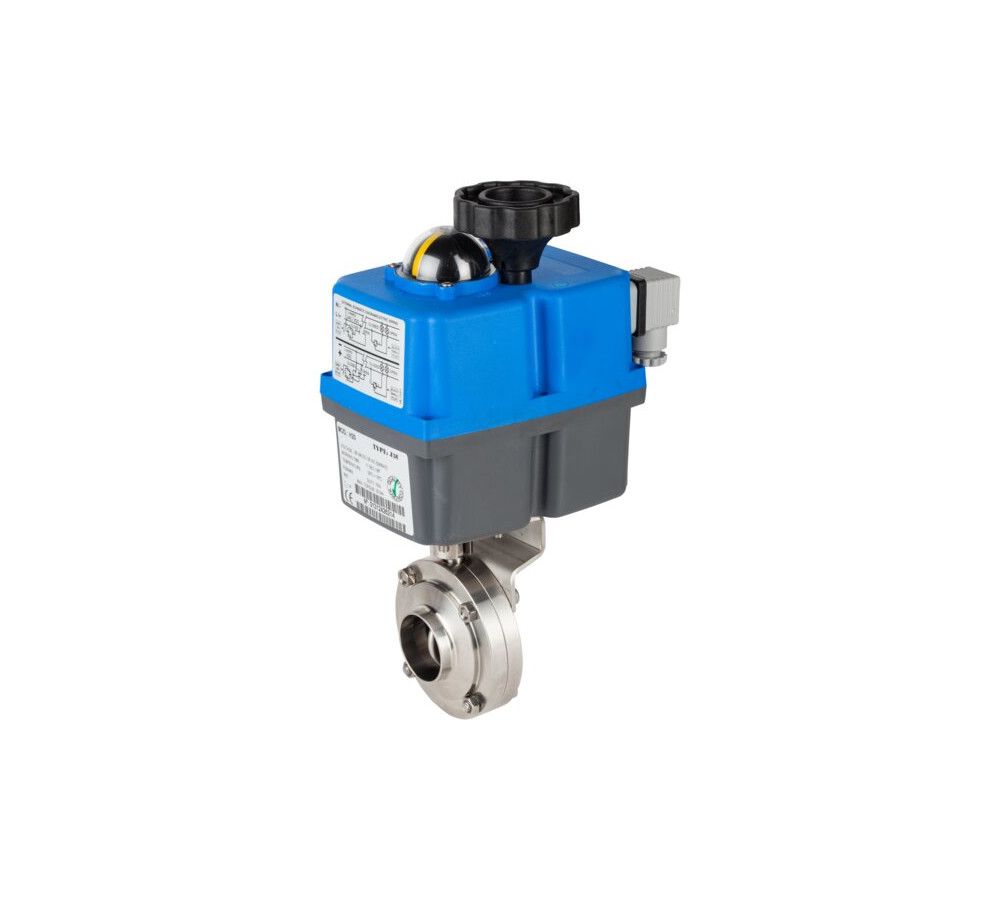

Butterfly valve end welded/welded

Butterfly valve end welded/welded. Stainless steel body AISI 304. EPDM elastomer (other material please consult us). End welded/welded. Max. working pressure 10 bar. Max. temp. 120ºC. Manually operated: 3 position.
The required tension supply to be specified.

Reference: 5653E

Actuator single phase data sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5653E 06 51 VALVE 2943E 1" + ELECTRIC ACTUATOR GE-0 24/240V 1 3.6 1/1
5653E 07 51 VALVE 2943E 1 1/4" + ELECTRIC ACTUATOR GE-0 24/240V 1 2.78 1/1
5653E 08 51 VALVE 2943E 1 1/2" + ELECTRIC ACTUATOR GE-0 24/240V 1 2.79 1/1
5653E 09 51 VALVE 2943E 2" + ELECTRIC ACTUATOR GE-0 24/240V 1 4.35 1/1
5653E 10 51 VALVE 2943E 2 1/2" + ELECTRIC ACTUATOR GE-0 24/240V 1 3.6 1/1
5653E 11 47 VALVE 2943E 3" + ELECTRIC ACTUATOR GE-05 24/240V 1 4.2 1/1
5653E 12 47 VALVE 2943E 4" + ELECTRIC ACTUATOR GE-05 24/240V 1 0.01 1/1
