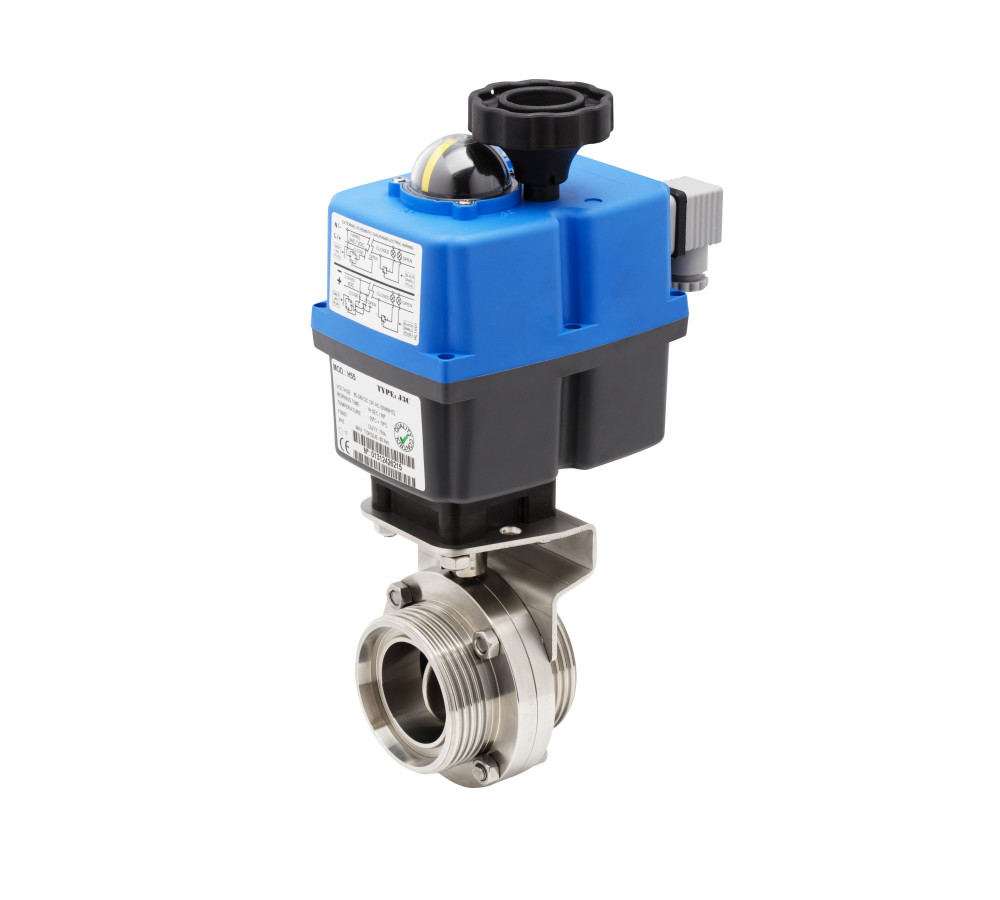

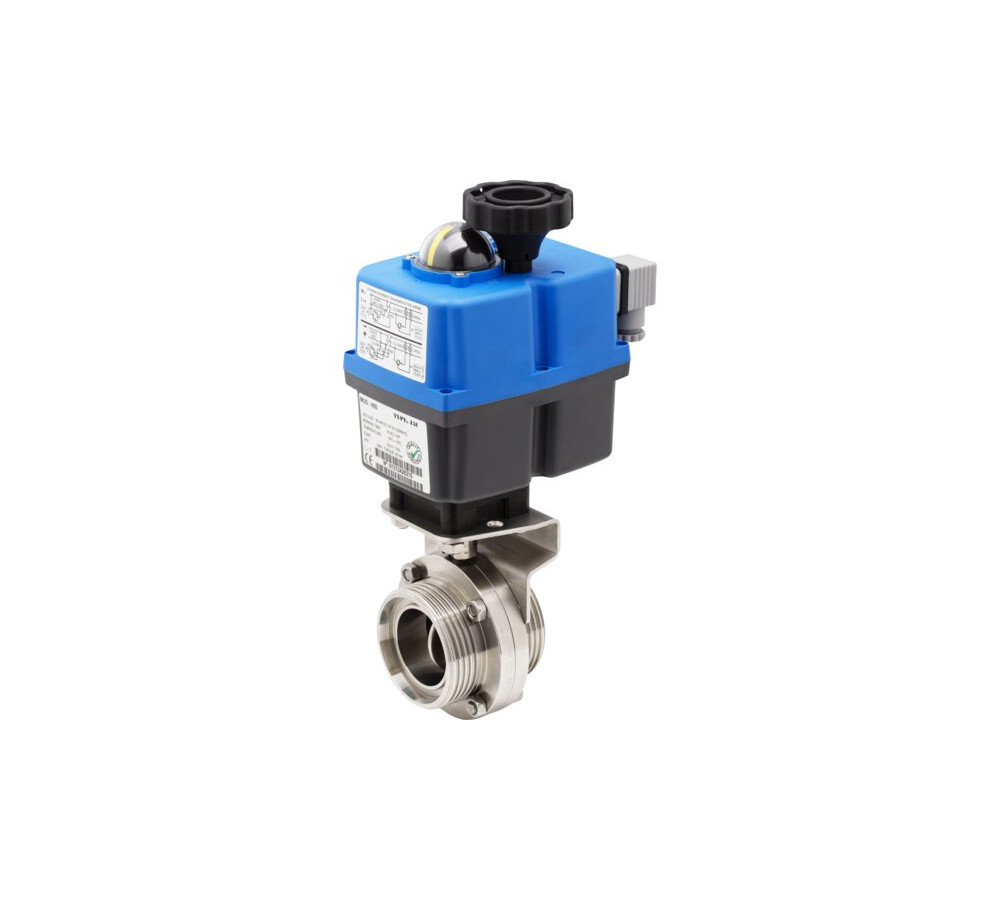

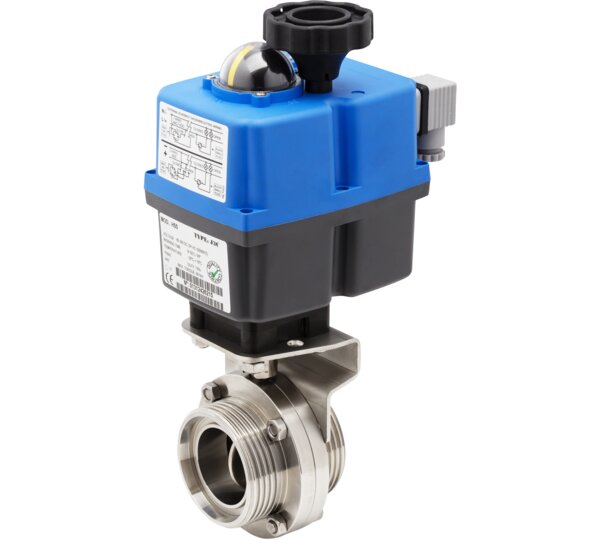

Butterfly valve threaded ends

Butterfly valve threaded ends. Stainless steel body AISI 304. EPDM elastomer (other material please consult us). Threaded ends DIN 11851. Max. working pressure 10 bar. Max. temp.: 120ºC. Manually operated: 3 position.
The required tension supply to be specified.

Reference: 5651E

Actuator single phase data sheet
See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5651E 06 51 V.MARIPOSA SAN.MM 1"+GE-0 24/240V 1 2.85 1/1
5651E 07 51 V.MARIPOSA SAN.MM 1"1/4+GE-0 24/240V 1 3 1/1
5651E 08 51 V.MARIPOSA SAN.MM 1"1/2+GE-0 24/240V 1 3.4 1/1
5651E 09 51 V.MARIPOSA SAN.MM 2"+GE-0 24/240V 1 4 1/1
5651E 10 51 V.MARIPOSA SAN. MM 2"1/2 GE-0 24/240V 1 6 1/1
5651E 11 47 V.MARIPOSA SAN. MM 3" GE-05 24/240V 1 0.01 1/1
5651E 12 47 V.MARIPOSA SAN. MM 4" GE-05 24/240V 1 1 1/1
