GENEBRE: Ball valve with 2 pieces connector

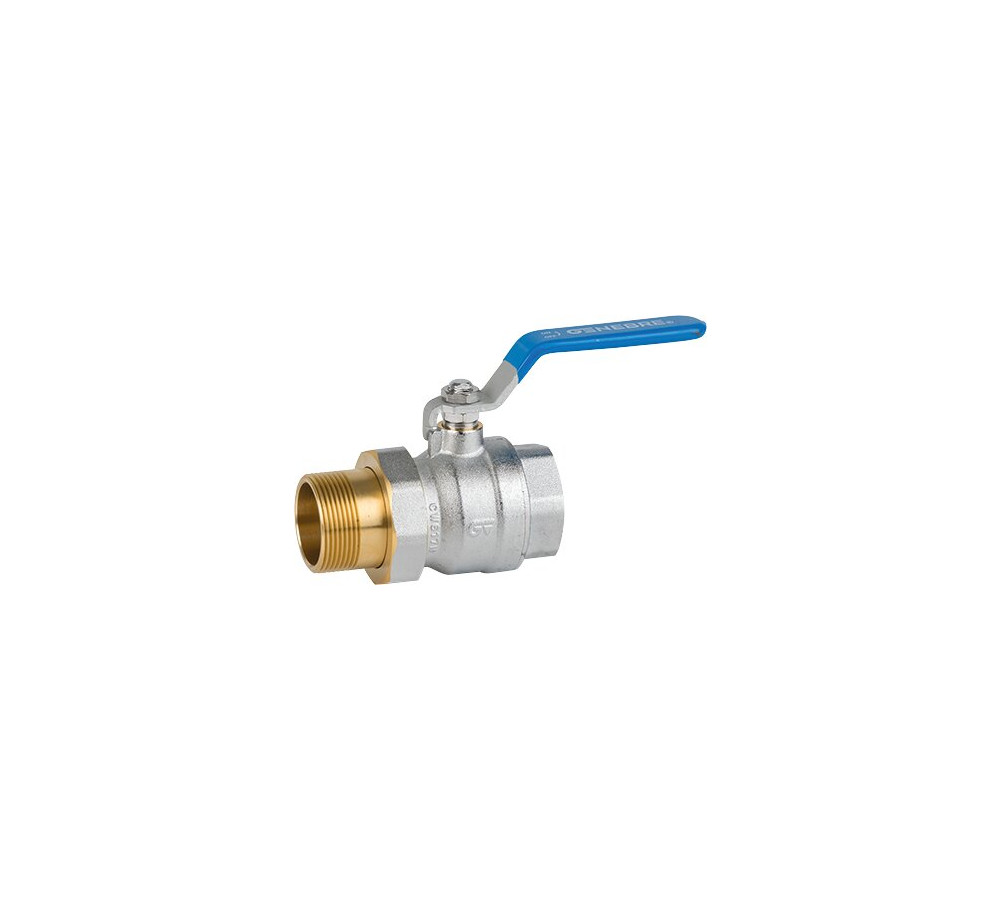

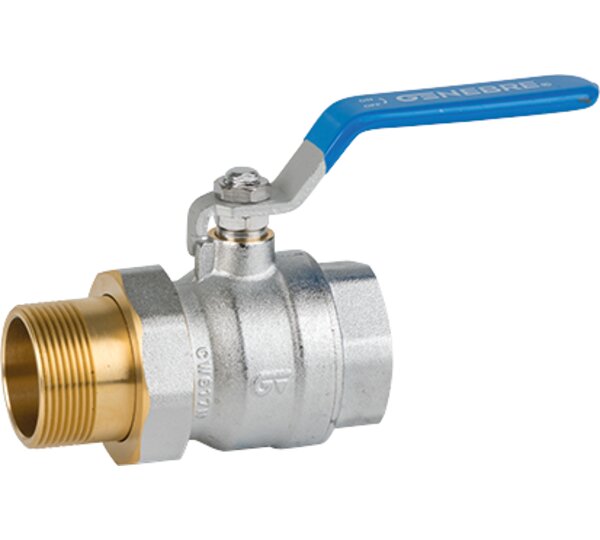

Ball valve with 2 pieces connector

PN 25. Full bore. Body chrome plated brass UNE-EN 12165. PTFE seats. Gas threaded ends (BSP) M-F - ISO 228/1. Max. Temp. 110ºC. Steel lever manual control.

Reference: 3048

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
3048 04	BALL VALVE WITH 2-PCS CONNECTOR 1/2"	8	0.195	8/96
3048 05	BALL VALVE WITH 2-PCS CONNECTOR 3/4"	6	0.333	6/60
3048 06	BALL VALVE WITH 2-PCS CONNECTOR 1"	4	0.508	4/40
3048 07	BALL VALVE WITH 2-PCS CONNECTOR 1"1/4	2	0.76	2/28
3048 08	BALL VALVE WITH 2-PCS CONNECTOR 1"1/2	2	1.097	2/18
3048 09	BALL VALVE WITH 2-PCS CONNECTOR 2"	2	1.67	2/14

Reference

Size

Minimum purchase unit

Weight (Kg)

Box / carton

3048 04

BALL VALVE WITH 2-PCS CONNECTOR 1/2"

0.195

8/96

3048 05

BALL VALVE WITH 2-PCS CONNECTOR 3/4"

0.333

6/60

3048 06

BALL VALVE WITH 2-PCS CONNECTOR 1"

0.508

4/40

3048 07

BALL VALVE WITH 2-PCS CONNECTOR 1"1/4

0.76

2/28

3048 08

BALL VALVE WITH 2-PCS CONNECTOR 1"1/2

1.097

2/18

3048 09

BALL VALVE WITH 2-PCS CONNECTOR 2"

1.67

2/14
