GENEBRE: Ball valves

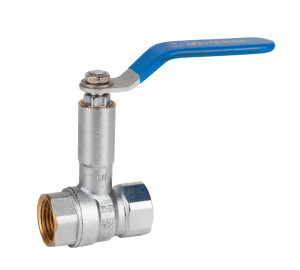

Ball valve with extension for isolation

PN 25. Full bore. Brass construction UNE-EN 12165. PTFE seats. Gas threaded ends (BSP) F-F - ISO 228/1. Max. Temp. 110ºC. Steel lever for m ...

Reference: 3234

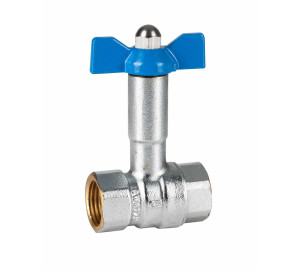

Ball valve with extension for isolation

PN 25. Full bore. Body chrome plated brass construction UNE-EN 12165. PTFE seats. Gas threaded ends (BSP) F-F - ISO 228/1. Max. Temp. 110ºC ...

Reference: 3235

Built-in gas threaded ball valve

PN 25. Full bore. Body brass UNE-EN 12165. PTFE seats. Gas threaded ends (BSP) F-F - ISO 228/1. Max. Temp. 110ºC.

Reference: 3056

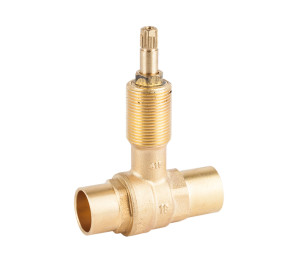

Built-in ball valve - welding ends

PN 16. Full bore. Body brass UNE-EN 12165. PTFE seats. Welding ends. Max. Temp. 110ºC.

Reference: 3083

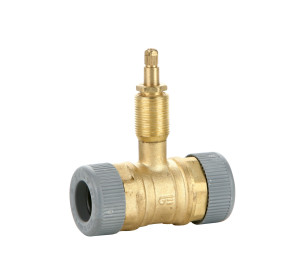

Built-in valve pipe polybutylene with sockets

PN 25. Full bore. Body brass UNE-EN 12165. PTFE seats. Connected to pipe by a plastic connector. Max. Temp. 110ºC.

Reference: 3181

Built-in valve for Pex and Multilayer pipe with pr ...

PN 25. Standard bore. Body chrome plated brass UNE-EN 12165. PTFE seats. AISI 304 stainless steel press sockets. Anti-electrolysis ring. EPD ...

Reference: 3183

"U" built-in ball valve Pex and Multilay ...

PN 25. Standard bore. Body chrome plated brass UNE-EN 12165. PTFE seats.AISI 304 stainless steel press sockets. Anti-electrolysis ring.EPDM ...

Reference: 3184

Valve for Pex and Multilayer pipe with press socke ...

PN 25. Standard bore. Body chrome plated brass UNE-EN 12165. PTFE seats. AISI 304 stainless steel press sockets. Anti-electrolysis ring. EPD ...

Reference: 3183S

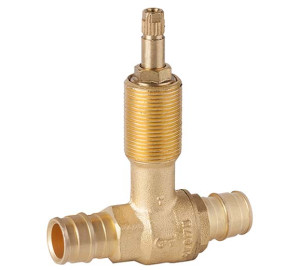

Buit-in ball valve PEX-a expansion system

PN25. Standard bore. Brass construction UNE-EN 12165. PTFE seats. Max. temp. 110ºC.

Reference: 3183B

"U" built-in ball valve PEX-a expansion ...

PN 25. Standard bore. Brass construction UNE-EN 12165. PTFE seats. Max. temp. 110ºC.

Reference: 3184B

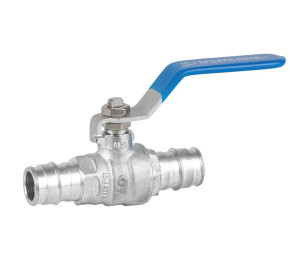

Valve PEX-a pipe for expansion system

PN 25. Standard bore. Body chrome plated brass UNE-EN 12165. PTFE seats. Maximum working temperature 110ºC.

Reference: 3183BS

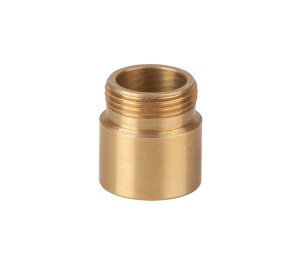

Cover extension for built in valves

Body brass UNE-EN 12165. Threaded ends M-F, W20 x 19h" thread.

Reference: K3053

Technical Assistance

902 504 203

Monday to Thursday from 8:30 a.m. to 1:30 p.m. and from 3:00 p.m. to 6:00 p.m. Friday from 8:00 a.m. to 4:00 p.m.
