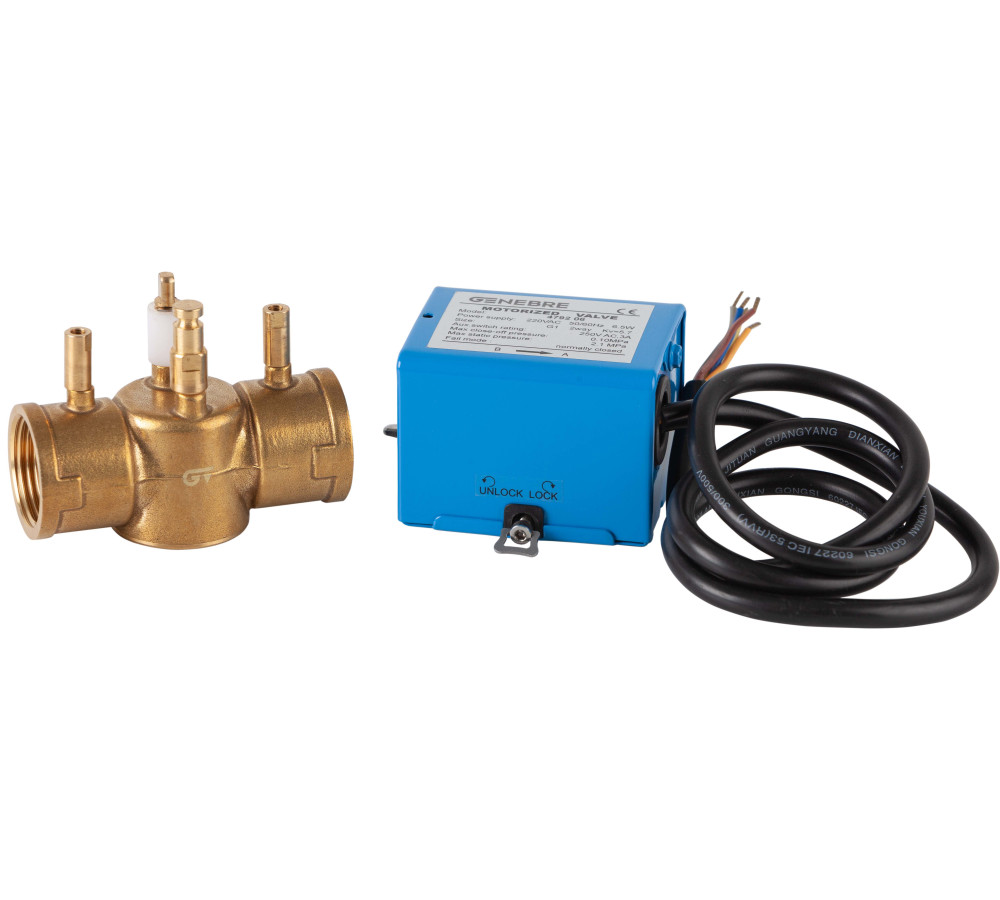

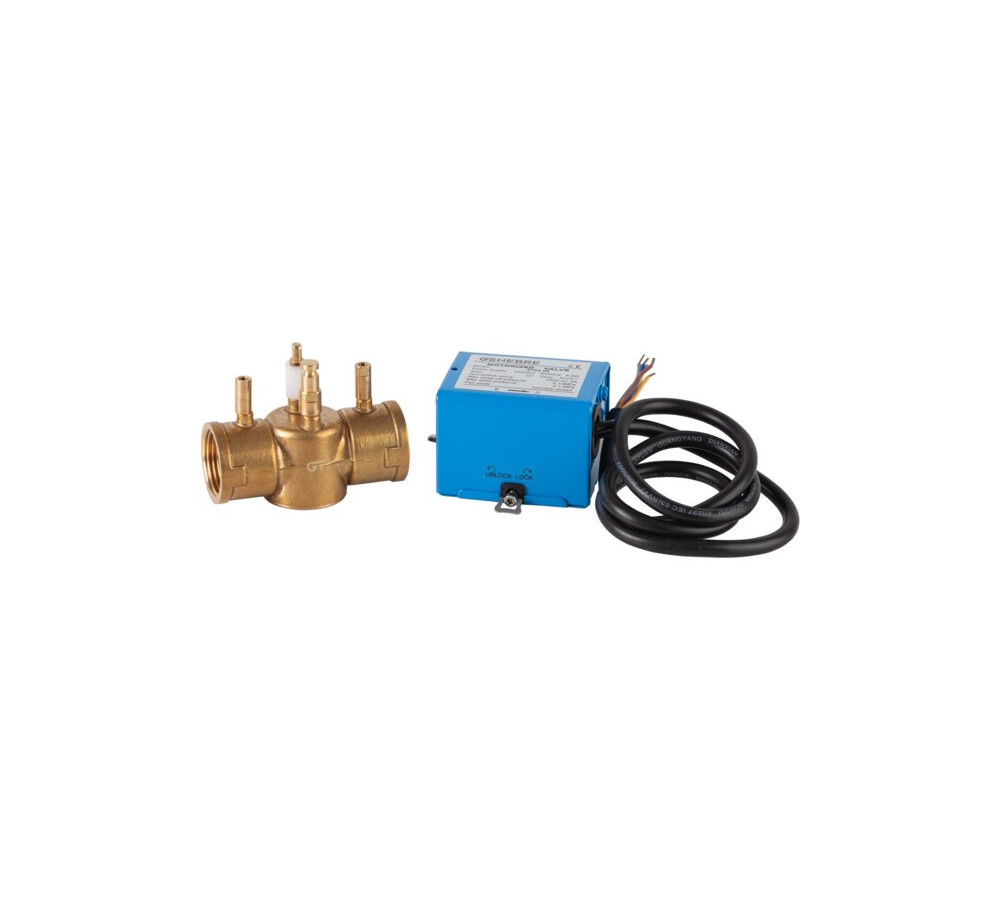

2 way motrized-zone valve with 5 cores wire

Brass construction. Female threaded ends ISO 228/1. Aplication cold or hot water. Fuid temperature <94ºC. Environment temperature <40ºC. Voltage 220-240 VAC (±10%) 50-60 Hz. Nominal pressure 16 bar. IP20 protection class. Manual operating lever with spring return.

Reference: 4792

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
4792 04 5CORES 2WAYS MOTORIZED 1/2" 1 0.873 1/20
4792 05 5CORES 2WAYS MOTORIZED 3/4" 1 0.863 1/20
4792 06 5CORES 2WAYS MOTORIZED 1" 1 1 1/20
