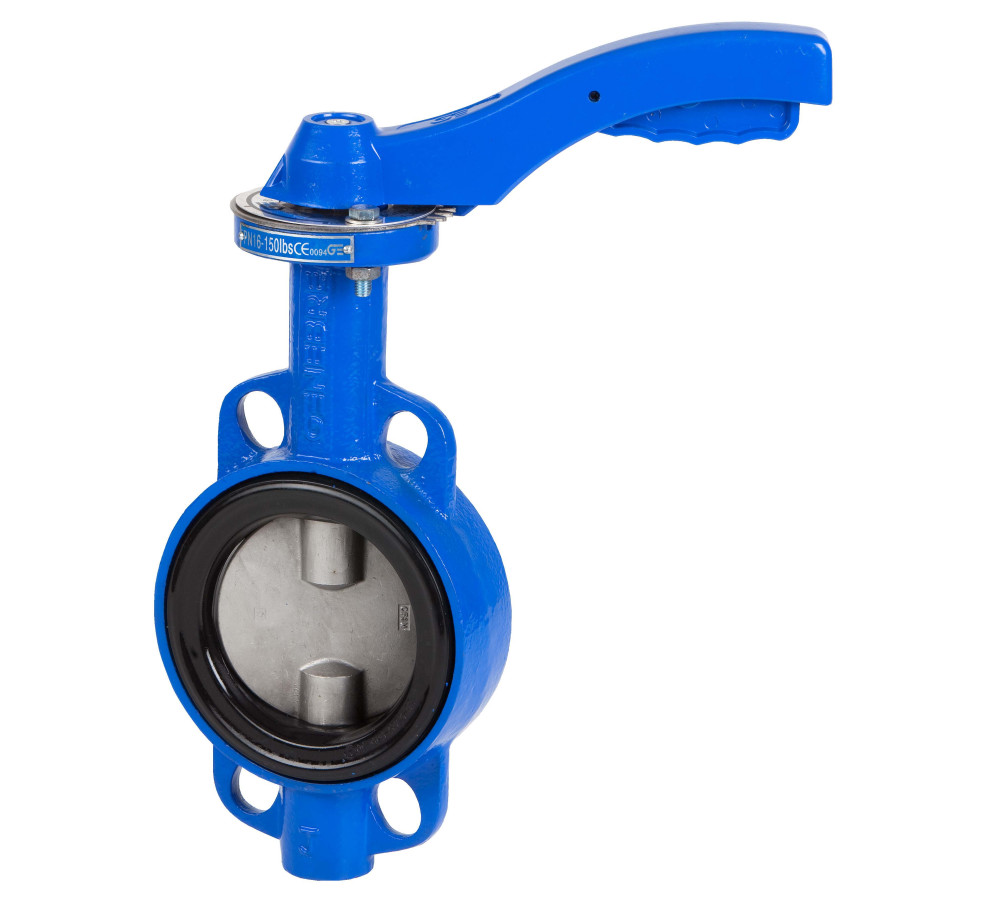

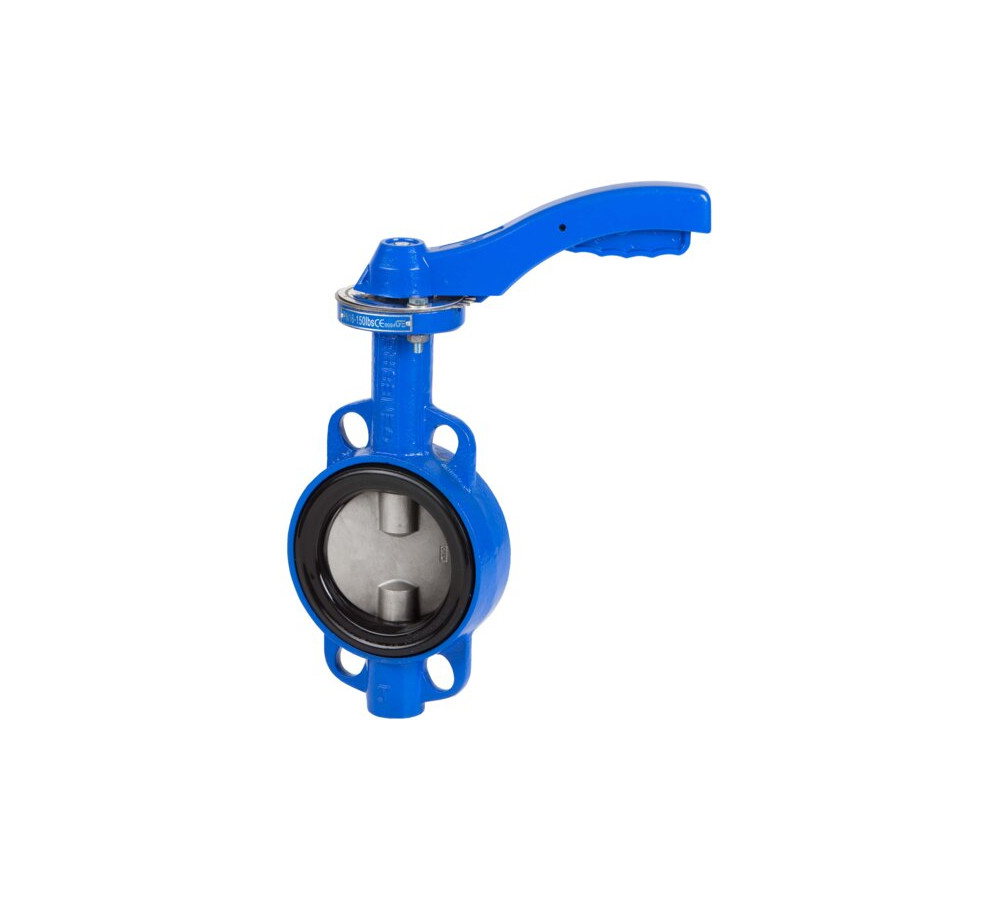

Wafer type butterfly valve
PN 10/16. ANSI 150 lbs

Body: cast iron + epoxy. Disk: stainless steel AISI 316.
Elastomer: NBR. O’ring stem: NBR. Max. temp. 110ºC.
Flanges mounted actuators ISO 5211.
Handle up to 10” with gear operator from 12”.

Reference: 2109B

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2109B 09 BUTTERFLY VALVE WAFER TYPE 2" - BUNA 1 2.688 1/7
2109B 10 BUTTERFLY VALVE WAFER TYPE 2 1/2" - BUNA 1 3.107 1/7
2109B 11 BUTTERFLY VALVE WAFER TYPE 3" - BUNA 1 3.586 1/5
2109B 12 BUTTERFLY VALVE WAFER TYPE 4" - BUNA 1 5.54 1/5
2109B 13 BUTTERFLY VALVE WAFER TYPE 5" - BUNA 1 6.768 1/3
2109B 14 BUTTERFLY VALVE WAFER TYPE 6" - BUNA 1 7.919 1/2
2109B 16 BUTTERFLY VALVE WAFER TYPE 8" - BUNA 1 14.365 1/1
2109B 18 BUTTERFLY VALVE WAFER TYPE 10" - BUNA 1 21.86 1/1
2109B 20 BUTTERFLY VALVE WAFER TYPE 12" - BUNA 1 38.576 1/1
2109B 22 BUTTERFLY VALVE WAFER TYPE 14" - BUNA 1 56.3 1/1
2109B 24 BUTTERFLY VALVE WAFER TYPE 16" - BUNA 1 73.813 1/1
2109B 26 BUTTERFLY VALVE WAFER TYPE 18" - BUNA 1 118.8 1/1
2109B 28 BUTTERFLY VALVE WAFER TYPE 20" - BUNA 1 143.3 1/1
2109B 32 BUTTERFLY VALVE WAFER TYPE 24" - BUNA 1 237 1/1
