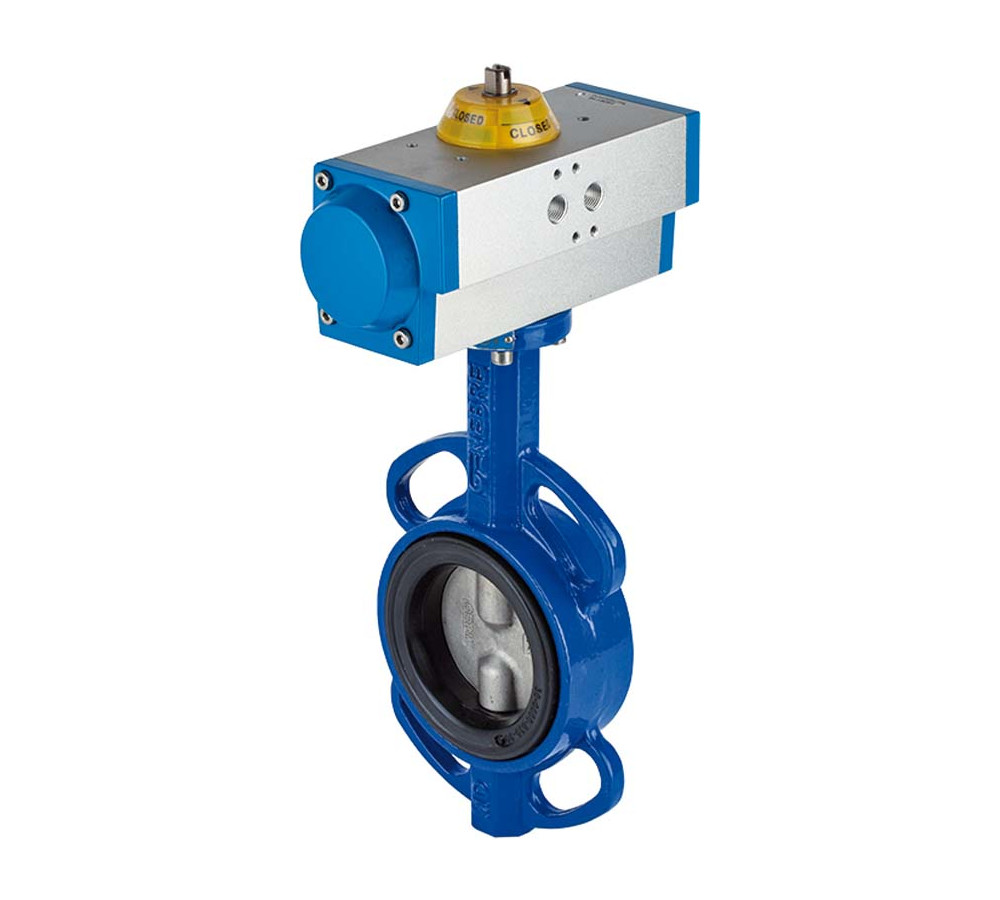

Butterfly valve wafer type

Butterfly valve wafer type. Body: cast iron + epoxy. Disk: stainless steel AISI 316.
Elastomer: EPDM. O’ring stem: NBR. Max. temp. 120ºC.
Flanges mounted actuators ISO 5211.
Handle up to 10” with gear operator from 12”. With Gen-Air actuator.

Reference: 5119

Gen-Air Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5119 09 51 V. 2109 2" WITH GN-17/S5 1 5.56 1/1
5119 10 85 V. 2109 2"1/2 WITH GN-25/S5 1 7.12 1/1
5119 11 78 V. 2109 3" WITH GN-30/S4 1 9.86 1/1
5119 12 86 V. 2109 4" WITH GN-30/S5 1 10.72 1/1
5119 13 87 V. 2109 5" WITH GN-35/S4 1 16 1/1
5119 14 88 V. 2109 6" WITH GN-35/S5 1 19.52 1/1
5119 16 81 V. 2109 8" WITH GN-45/S4 1 29.4 1/1
5119 18 95 V. 2109 10" WITH GN-50/S4 1 41.13 1/1
5119 20 90 V. 2109 12" WITH GN-55/S6 1 59.4 1/1
5119 22 57 V. 2109 14" WITH GN-60 1 87.5 1/1
5119 24 54 V. 2109 16" WITH GN-60 1 108 1/1
5119 26 185 BUTTEFLY V. WAFER ACT. PNEUM. 1 267 1/1
