1 piece full bore ball valve with heating chamber. Mounting between flanges PN-16 wafer type

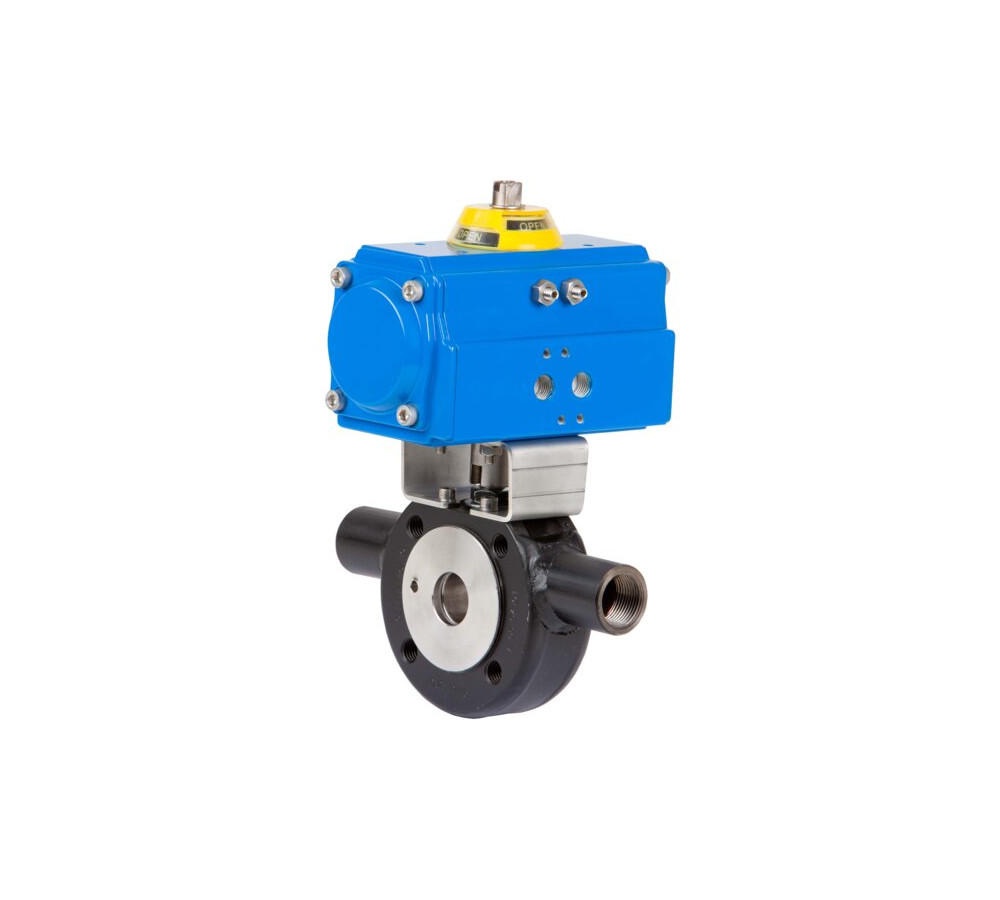

1 piece full bore ball valve with heating chamber. Mounting between flanges PN-16 wafer type.
Body: forged carbon steel A-105. Ball stem and cover: stainless steel AISI 304. Seats and seals: PTFE Temp. -20ºC +180ºC. Manually operated by handle. With GNP actuator

Reference: 5115

GNP Actuator technical sheet
Valve Technical Sheet
GNP Actuators folder
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5115 06 128 V. 2115 1" WITH GNP-44 1 4.83 1/1
5115 07 138 V. 2115 1"1/4 WITH GNP-60 1 6.5 1/1
5115 08 138 V. 2115 1"1/2 WITH GNP-60 1 9.2 1/1
5115 09 138 V. 2115 2" WITH GNP-60 1 10.7 1/1
5115 10 142 V. 2115 2"1/2 WITH GNP-94 1 18.3 1/1
5115 11 142 V. 2115 3" WITH GNP-94 1 23.3 1/1
5115 12 158 V. 2115 4" WITH GNP-300 1 38.7 1/1
