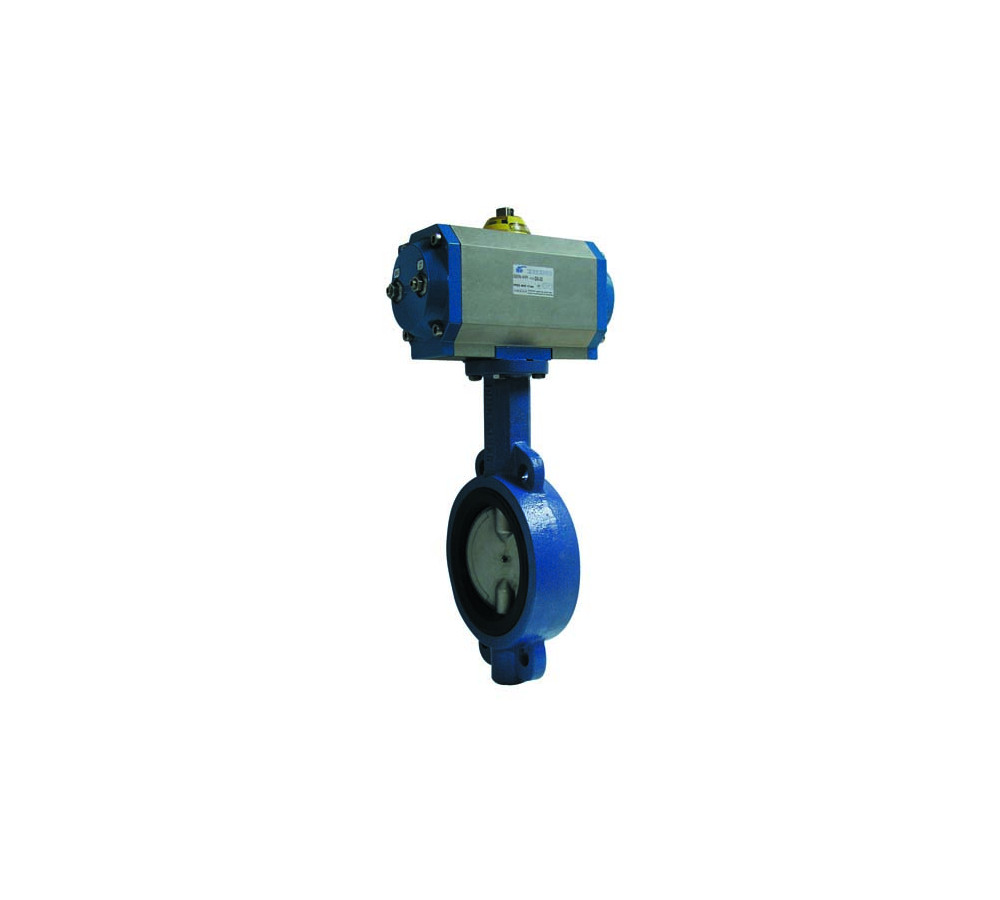

Butterfly valve wafer type

Butterfly valve wafer type.
Body: cast iron + epoxy. Disk: zinc plated. Elastomer: EPDM. O’ring stem: NBR.
Max. temp. 120ºC. Flanges mounted actuators ISO 5211 handle up to 10” with gear operator from 12”.
With GNP actuator.
-4ºF + 248ºF

Reference: 5113

Valve Technical Sheet
Gen-Air Actuator technical sheet
GNP Actuator technical sheet
GNP Actuators folder
Actuator Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5113 09 51 V. 2103 2" WITH GN-17/S5 1 5.56 1/1
5113 10 85 V. 2103 2"1/2 WITH GN-25/S5 1 9.38 1/1
5113 11 78 V. 2103 3" WITH GN-30/S4 1 10.97 1/1
5113 12 86 V. 2103 4" WITH GN-30/S5 1 10.88 1/1
5113 13 87 V. 2103 5" WITH GN-35/S4 1 16.7 1/1
5113 14 88 V. 2103 6" WITH GN-35/S5 1 19.52 1/1
5113 16 81 V. 2103 8" WITH GN-45/S4 1 26.92 1/1
5113 18 95 V. 2103 10" WITH GN-50/S4 1 41.13 1/1
5113 20 90 V. 2103 12" WITH GN-55/S6 1 59.4 1/1
5113 22 57 V. 2103 14" WITH GN-60 1 87.5 1/1
5113 24 54 V. 2103 16" WITH GN-60 1 108 1/1
5113 28 176 V. 2103 20" WITH GNP-2300 1 0.01 1/1
