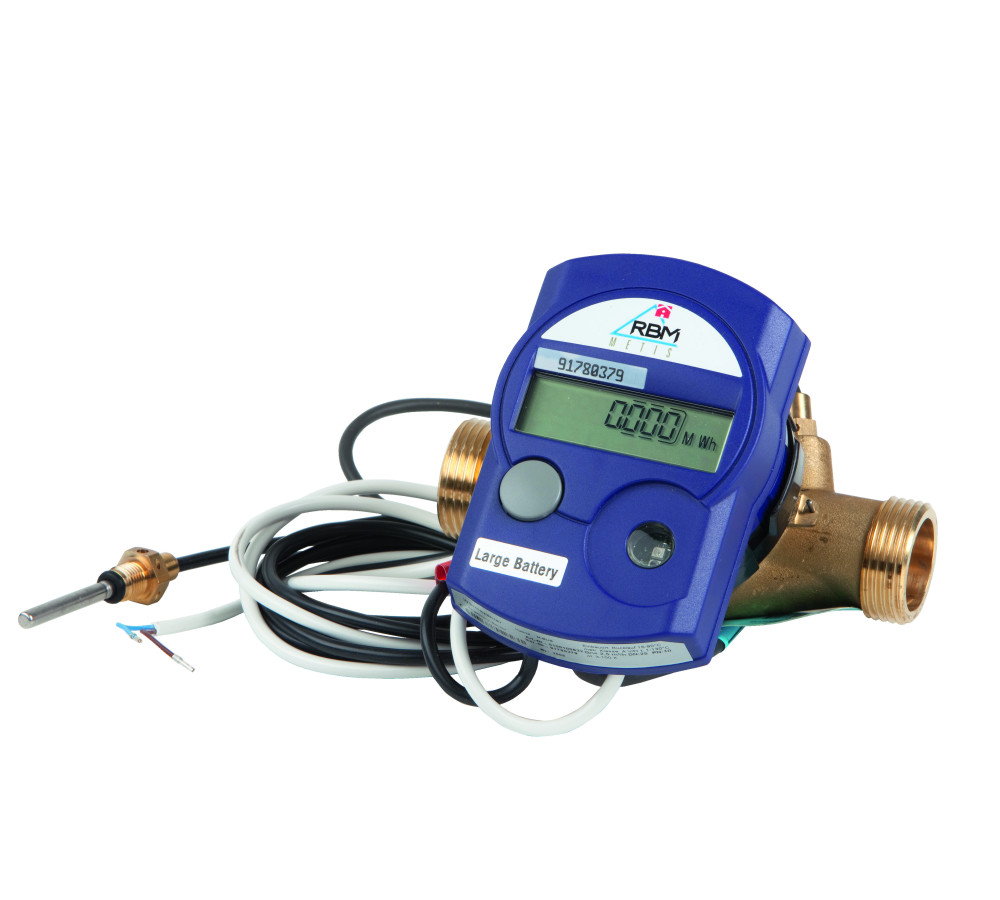

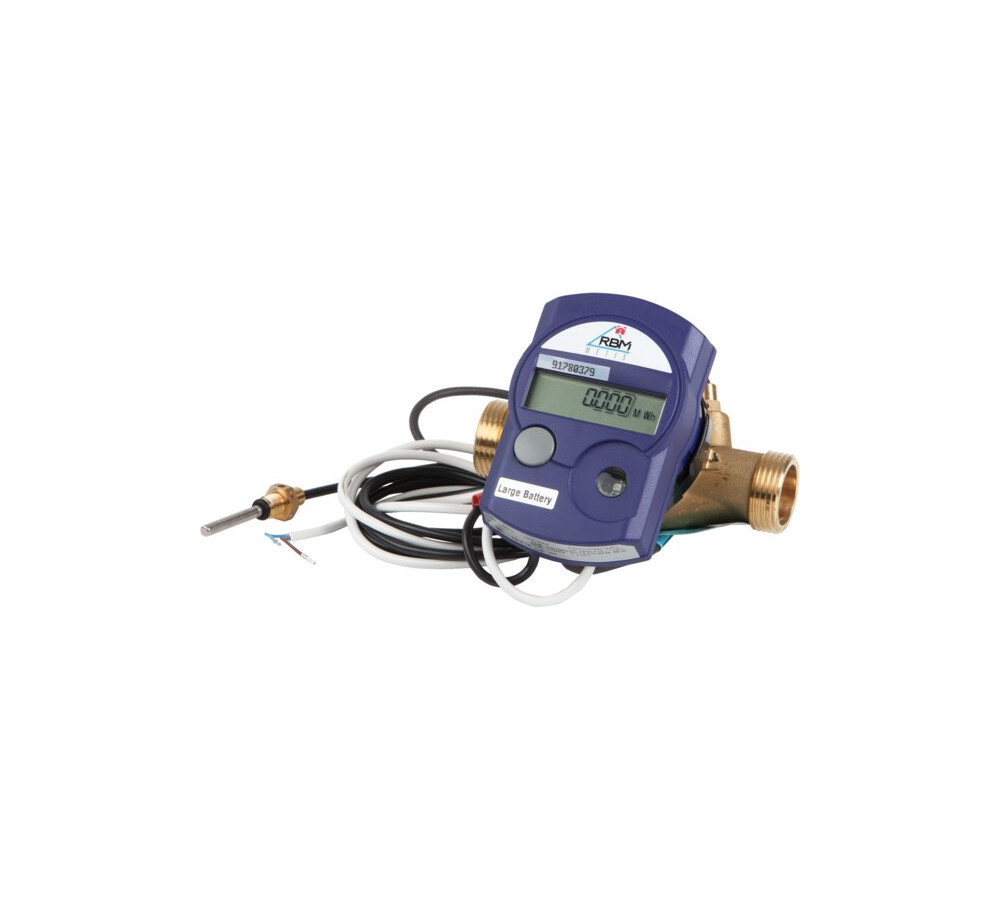

Thermal energy meter

The compact thermal energy meters are used to score the thermal energy consumption in a heating installations. Components: Energetic consumption calculation unit, 8 digits display, keyboard user, single jet meter with return probe inserted into the body’s meter and PT500 Ø 5 mm probes. M-bus communication net. MID (2004/22/CE) Certificate.
Meter installation on the return pipe. Horizontal or vertical mounting. PN10 bar. IP54. Lithium battery power supply. 1.5 m probe cable length. Flow temperatures range from 15ºC to 90ºC.

Reference: 6085

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
