Flanges DIN PN4 < DN50. Flanges DIN PN1 > DN50

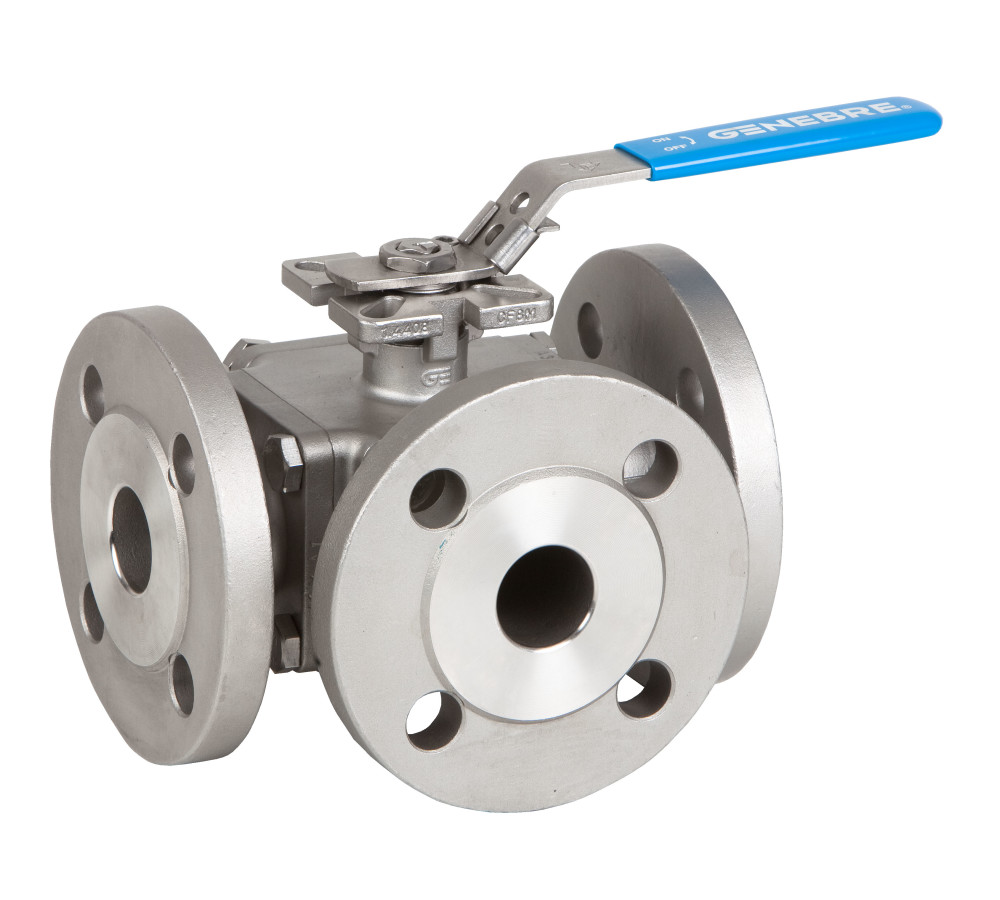

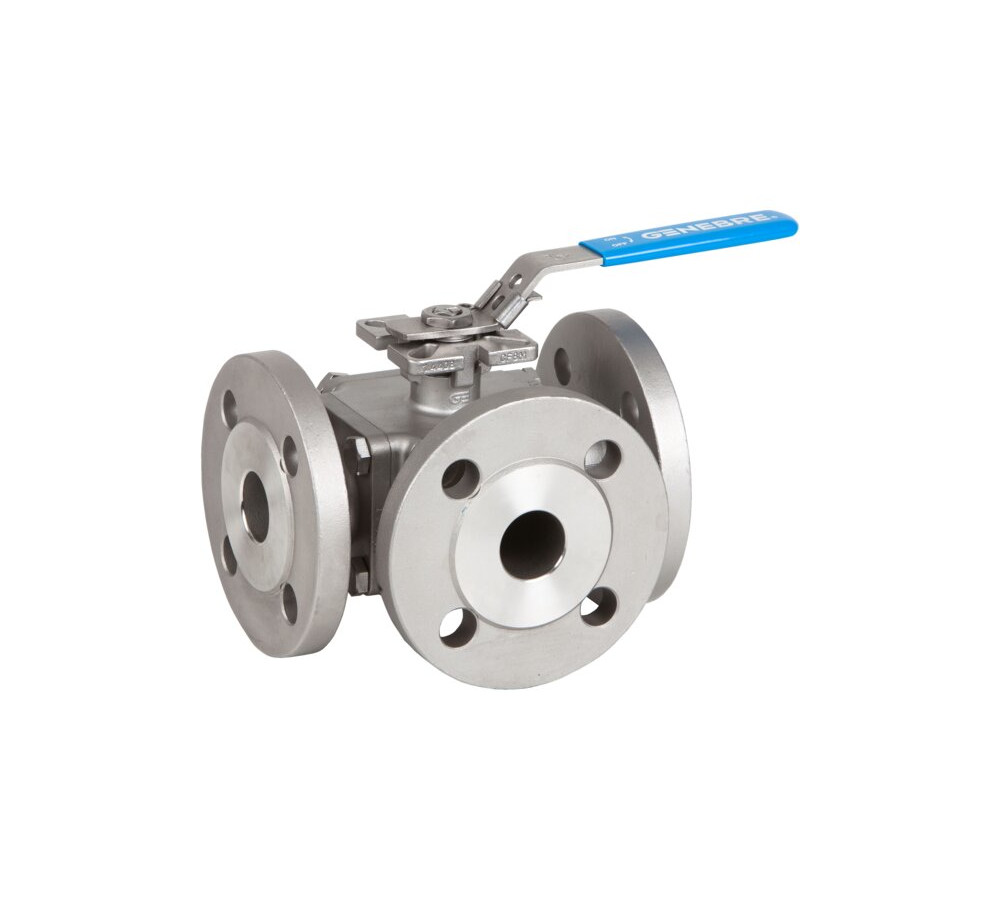

3 ways full bore ball valve. 2540 “L” bore / 2541 “T” bore

Direct mounting for actuators ISO 5211.
Body: stainless steel CF8M (316). 4 seats: PTFE + 15% GF.
Max. pressure: 16/40 kg/cm2 depending on size.
Temp.: -30ºC +180ºC. Manually operated by handle.

Reference: 2541

Valve Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
