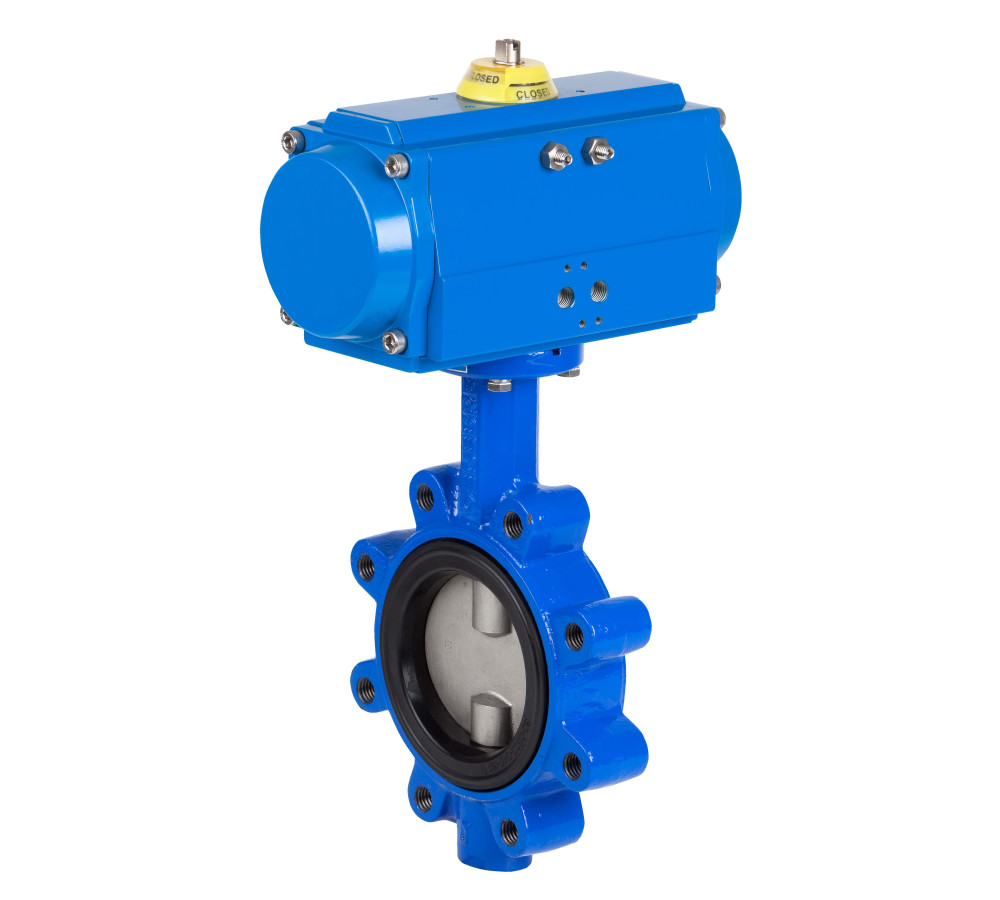

Butterfly valve LUG type (ANSI flanges)

Butterfly valve LUG type (ANSI flanges).
Body: ductil iron GGG-40. Disc: CF8M (316).
Seat: EPDM. Stem o’ring NBR.
Working temperature -20ºC +120ºC.
Mounting actuator according to ISO 5211 std.
Handle up to 10” with gear operator from 12”.
With GNP actuator.
-4ºF + 248ºF

Reference: 5508A

GNP Actuator technical sheet
Valve Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5508A 09 128 V. 2108A 2" WITH ACTUATOR GNP-44 1 6.9 1/1
5508A 10 128 VALVE 2108A 2 1/2" WITH ACTUATOR GNP-44 1 7.76 1/1
5508A 11 128 VALVE 2108A 3" WITH ACTUATOR GNP-44 1 7.76 1/1
5508A 12 138 VALVE 2108A 4" WITH ACTUATOR GNP-60 1 9.92 1/1
5508A 13 142 VALVE 2108A 5" WITH ACTUATOR GNP-94 1 14.47 1/1
5508A 14 142 VALVE 2108A 6" WITH ACTUATOR GNP-94 1 15 1/1
5508A 16 150 V. 2108A 8" W/ACT GNP-198 1 22.1 1/1
5508A 18 158 V. 2108A 10" W/ACT GNP-300 1 47.9 1/1
5508A 20 162 V. 2108A 12" W/ACT GNP-513 1 56.44 1/1
5508A 22 170 V. 2108A 14" W/ACT GNP-1280 1 101.8 1/1
5508A 24 170 V. 2108A 16" W/ACT GNP-1280 1 130.2 1/1
5508A 26 174 V. 2108A 18" W/ACT GNP-1600 1 189.8 1/1
5508A 28 176 V. 2108A 20" W/ACT. GN-2300 1 239.7 1/1
