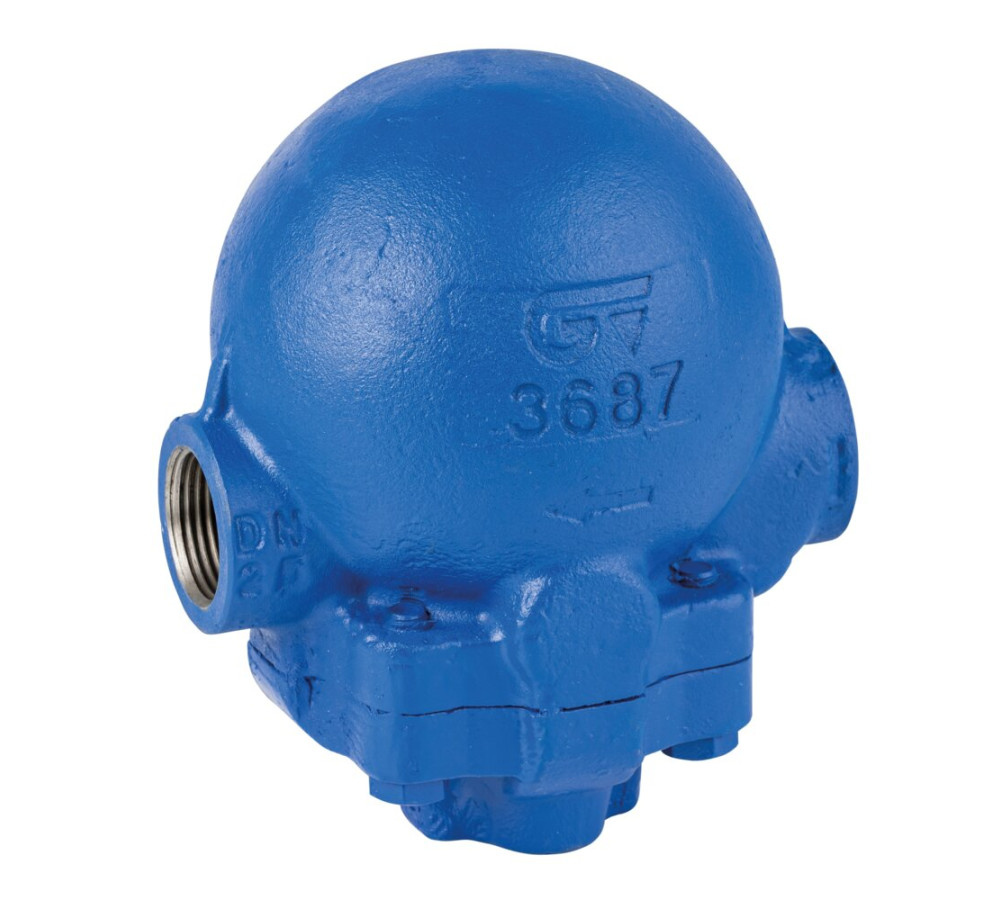

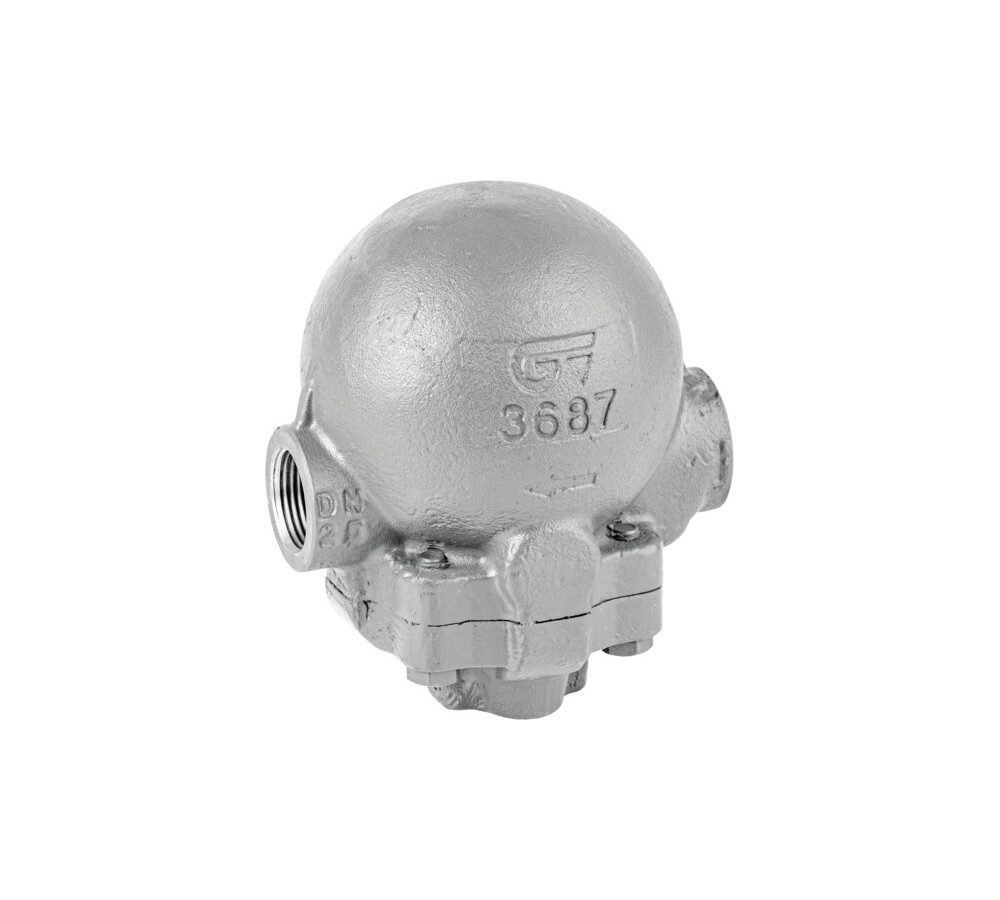

Ball float steam trap

BSP threaded ends acc. to ISO 228/1. Construction: Carbon steel 1.0619 (WCB). Internal parts made of stainless steel. Internal air vent assembly. Horizontal installation. Maximum working pressure PN16. Maximun differential pressure: 4,5 bar (045) or 10 bar (100). Maximun working temperature 250ºC.

Reference: 2285

See Technical Sheet
Installation Manual
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
2285 04 045 BALL FLOAT STEAM TRAP BSP DN 15 Dp 4.5 1 3.635 1/1
2285 04 100 BALL FLOAT STEAM TRAP BSP DN 15 Dp 10 1 3.678 1/1
2285 05 045 BALL FLOAT STEAM TRAP BSP DN 20 Dp 4.5 1 3.638 1/1
2285 05 100 BALL FLOAT STEAM TRAP BSP DN 20 Dp 10 1 3.601 1/1
2285 06 045 BALL FLOAT STEAM TRAP BSP DN 25 Dp 4.5 1 4.615 1/1
2285 06 100 BALL FLOAT STEAM TRAP BSP DN 25 Dp 10 1 4.626 1/1
