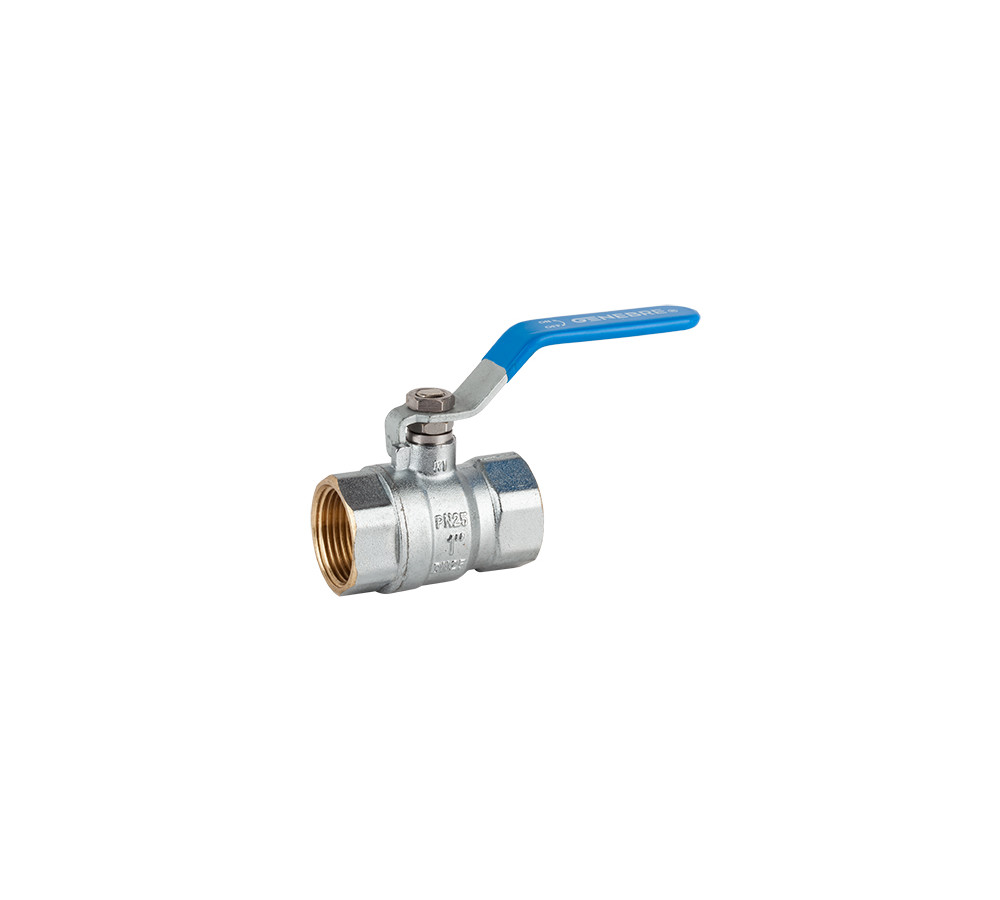

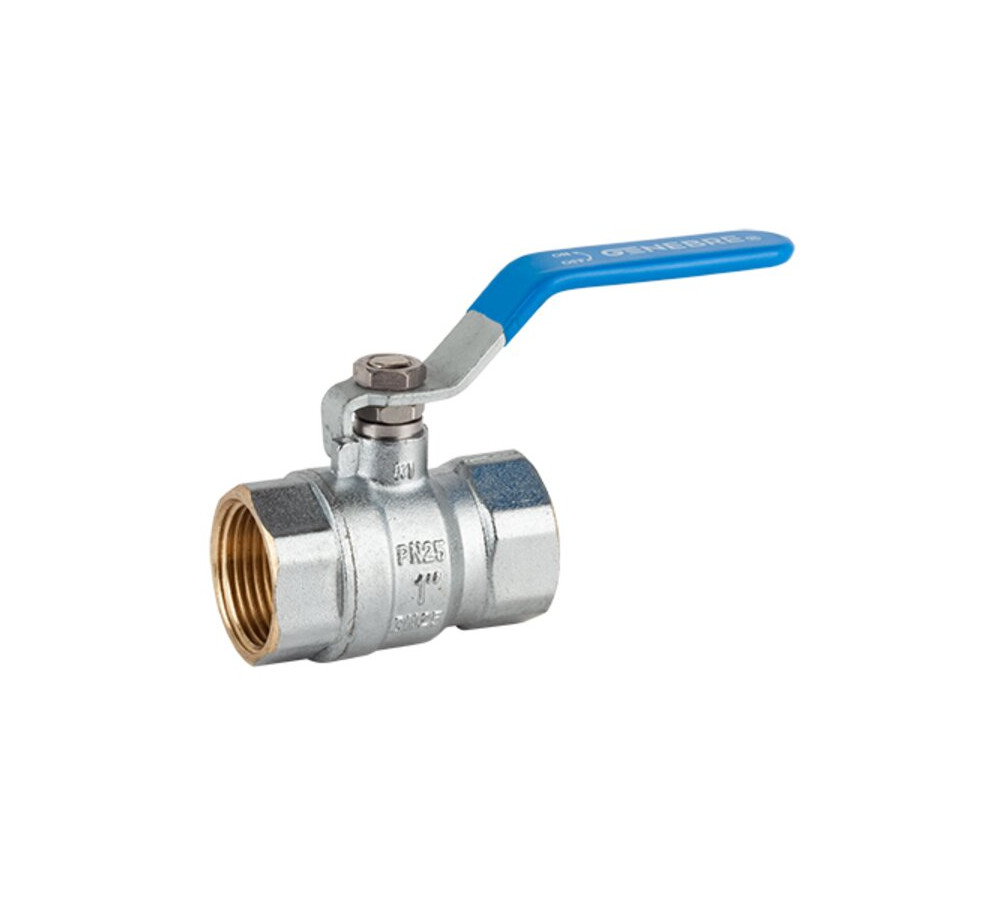

Ball valve NPT-thread

PN 25. Full bore. Body chrome plated brass UNE-EN 12165. PTFE seats. NPT treaded ends F-F - ANSI B 1.20.1. Max. temp.110ºC. Steel lever manual control.

Reference: 3022

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
3022 02 BALL VALVE NPT 1/4" 10 0.106 10/200
3022 03 BALL VALVE NPT 3/8" 10 0.113 10/240
3022 04 BALL VALVE NPT 1/2" 8 0.155 8/144
3022 05 BALL VALVE NPT 3/4" 8 0.273 8/80
3022 06 BALL VALVE NPT 1" 6 0.397 6/54
3022 07 BALL VALVE NPT 1"1/4 4 0.62 4/36
3022 08 BALL VALVE NPT 1"1/2 2 0.84 2/24
3022 09 BALL VALVE NPT 2" 2 1.34 2/18
3022 10 BALL VALVE NPT 2"1/2 4 2.622 4/8
3022 11 BALL VALVE NPT 3" 2 3.932 2/4
3022 12 BALL VALVE NPT 4" 1 6.173 1/4
