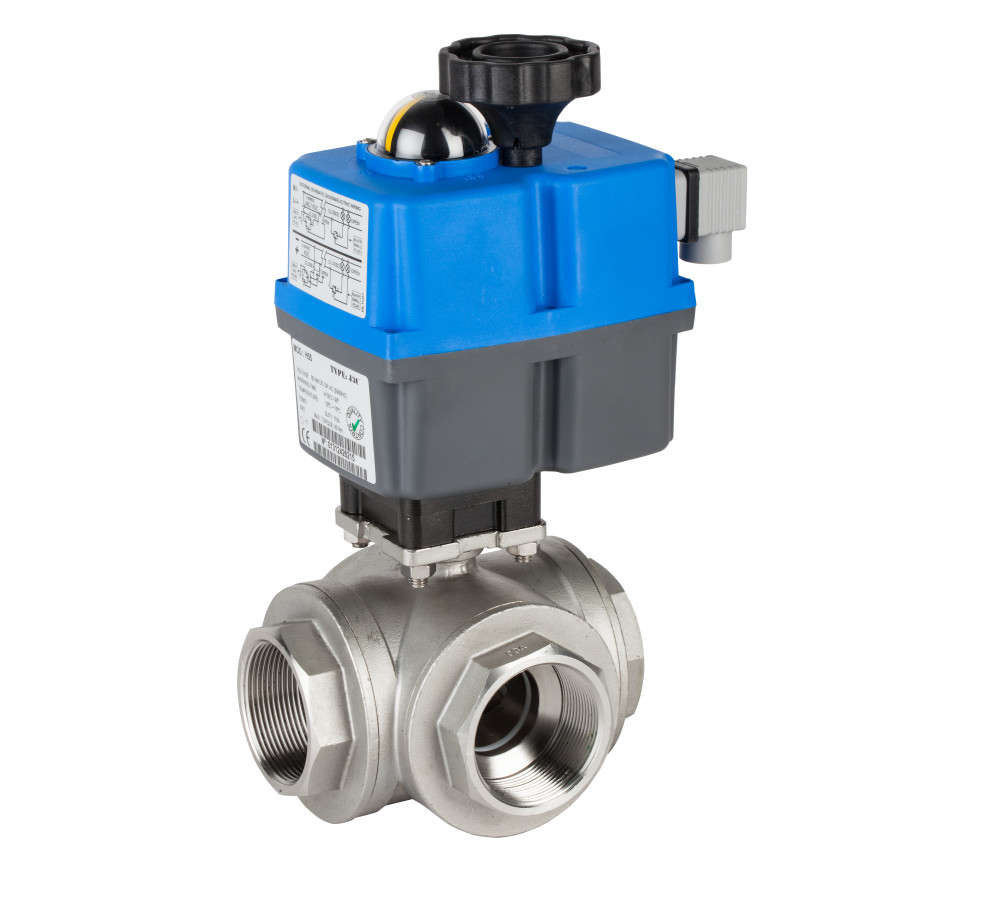

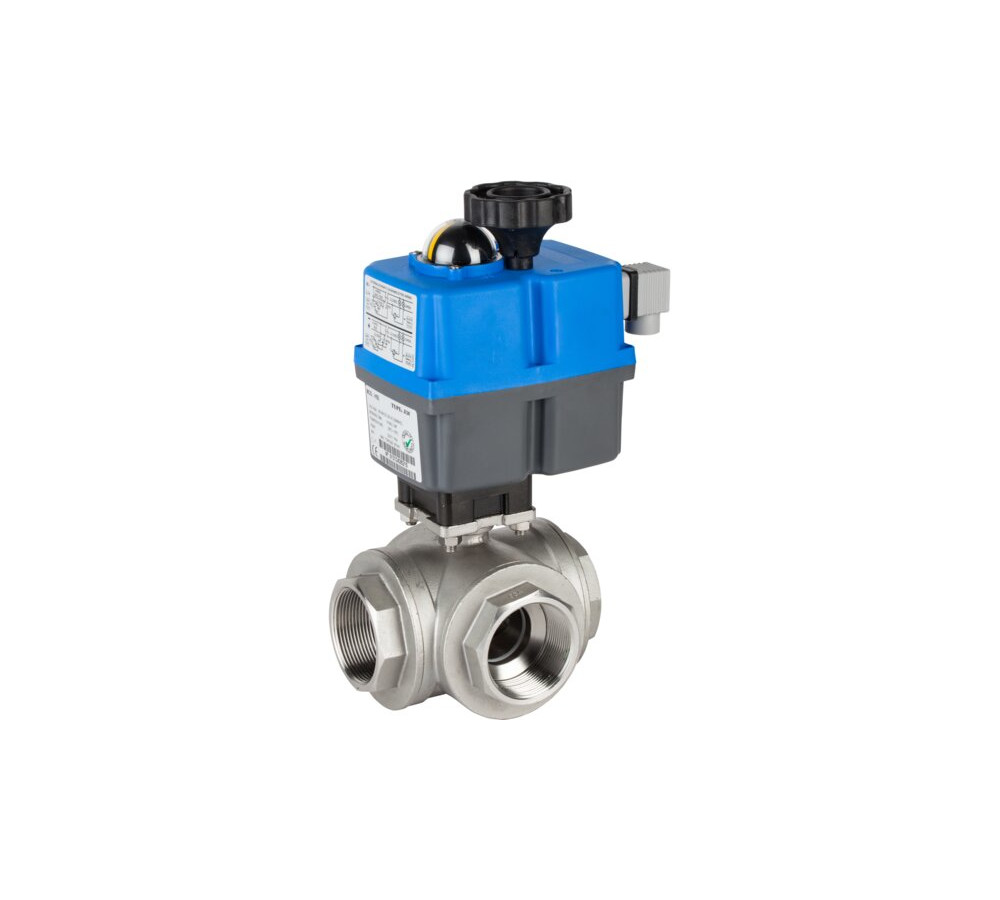

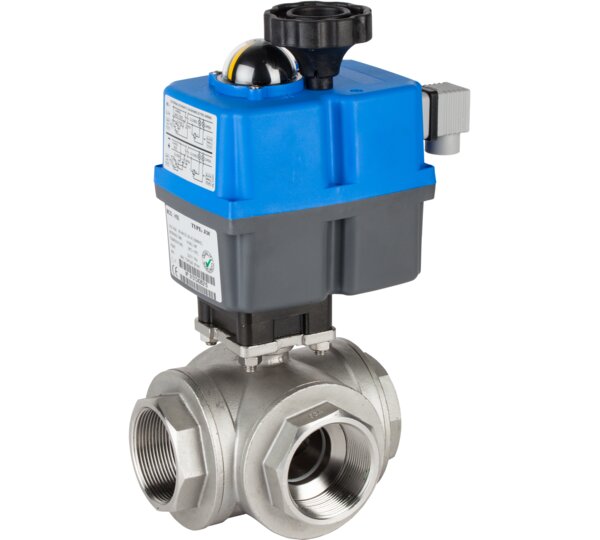

“L” or “T” 3 ways reduced bore ball valve

“L” 3 ways reduced bore ball valve. Const.: AISI 316; Four seats PTFE + GF body and stem seats: PTFE o’ring stem: Viton. Gas threaded ends ISO 7-1 (EN 10226-1). PN 63. Temp. -25ºC +180ºC. Direct assembling S/ISO 5211. Manually operated by handle with locking system.
With GE multivoltage electric rotary actuator.
The required tension supply to be specified.

Reference: 5640

Valve Technical Sheet
Actuator single phase data sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5640 02 51 V. 2040 1/4" WITH GE-0 24-240V 1 3.05 1/1
5640 03 51 V. 2040 3/8" WITH GE-0 24/240V 1 2.5 1/1
5640 04 51 V. 2040 1/2" WITH GE-0 24/240V 1 3.5 1/1
5640 05 51 V. 2040 3/4" WITH GE-0 24/240V 1 3.78 1/1
5640 06 51 V. 2040 1" WITH GE-0 24/240V 1 4.26 1/1
5640 07 51 V. 2040 1"1/4 WITH GE-0 24/240V 1 5.42 1/1
5640 08 47 V. 2040 1"1/2 WITH GE-05 24/240V 1 6.9 1/1
5640 09 52 V. 2040 2" WITH GE-1 24/240V 1 9.34 1/1
5640 10 48 V3 WAYS L 2"1/2 W/ACT. GE-15 24/240V 1 13 1/1
