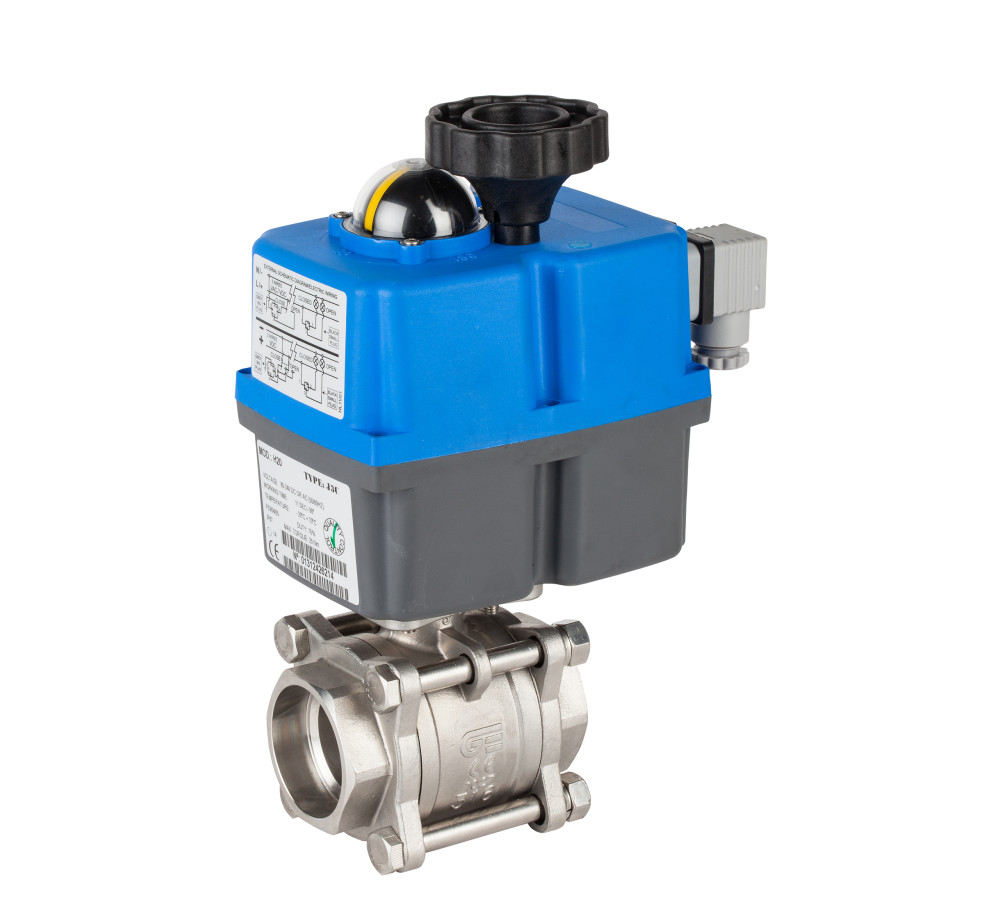

3 pieces full bore ball valve

3 pieces full bore ball valve.
Const.: stainless steel CF8M (316) investment casting gas thread ISO 7-1 (EN 10226-1). Seats and seats: PTFE +15% GF o’ring stem: viton PN 63. Temp. -25ºC +180ºC. Direct assembling ISO 5211 with locking system.
With GE multivoltage electric rotary actuator .
The required tension supply to be specified.

Reference: 5635

Valve Technical Sheet
Actuator single phase data sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5635 02 51 V. 2025 1/4" WITH GE-0 24/240V 1 2.81 1/1
5635 03 45 3PC FULL BORE B.V. 1 1.3 1/1
5635 03 51 V. 2025 3/8" WITH GE-0 24/240V 1 2.906 1/1
5635 04 51 V. 2025 1/2" WITH GE-0 24/240V 1 2.61 1/1
5635 05 45 3PC FULL BORE B.V. 1 1.75 1/1
5635 05 47 3PC FULL BORE B.V. 1 2.6 1/1
5635 05 51 V. 2025 3/4" WITH GE-0 24/240V 1 3.1 1/1
5635 06 51 V. 2025 1" WITH GE-0 24/240V 1 3.86 1/1
5635 07 51 V. 2025 1"1/4 WITH GE-0 24/240V 1 3.97 1/1
5635 08 47 V. 2025 1"1/2 WITH GE-05 24/240V 1 5.42 1/1
5635 08 58 3PC FULL BORE B.V. 1 13.5 1/1
5635 09 52 V. 2025 2" WITH GE-1 24/240V 1 6.37 1/1
5635 10 52 V. 2025 2"1/2 WITH GE-1 24/240V 1 12.04 1/1
5635 11 48 V. 2025 3" WITH GE-15 24/240V 1 16.86 1/1
5635 11 59 3PC FULL BORE B.V. 1 24.7 1/1
5635 12 53 V. 2025 4" WITH GE-2 80/240V 1 25.7 1/1
