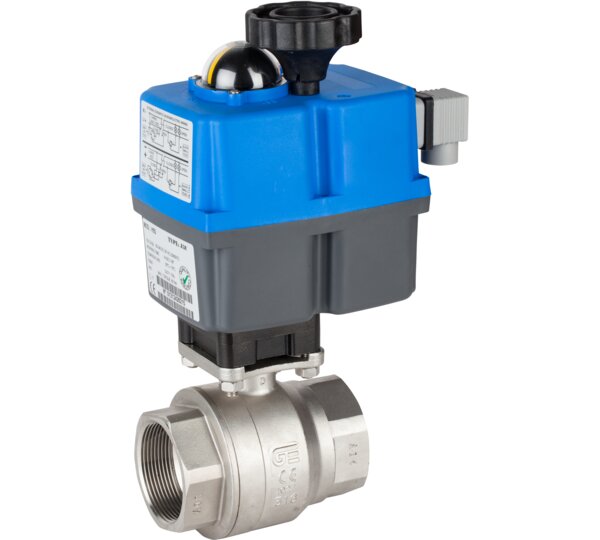

2 pieces full bore ball valve

2 pieces full bore ball valve.
Const. AISI 316 seats and seals PTFE + GF gas threaded ends ISO 7-1 (EN 10226-1). O’ring stem: viton. PN 63. Temp. -25ºC +180ºC. Manually operated by handle. Direct assembling ISO 5211with locking system.
With GE multivoltage electric rotary actuator .
The required tension supply to be specified.

Reference: 5621

Actuator single phase data sheet
See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5621 02 51 V. 2015 1/4" WITH GE-0 24/240V 1 1.85 1/1
5621 03 51 V. 2015 3/8" WITH GE-0 24/240V 1 2.84 1/1
5621 04 51 V. 2015 1/2" WITH GE-0 24/240V 1 3 1/1
5621 05 51 V. 2015 3/4" WITH GE-0 24/240V 1 3.05 1/1
5621 06 51 V. 2015 1" WITH GE-0 24/240V 1 3.34 1/1
5621 07 51 V. 2015 1"1/4 WITH GE-0 24/240V 1 3.48 1/1
5621 08 47 V. 2015 1"1/2 WITH GE-05 24/240V 1 4.3 1/1
5621 09 52 V. 2015 2" WITH GE-1 24/240V 1 6.06 1/1
