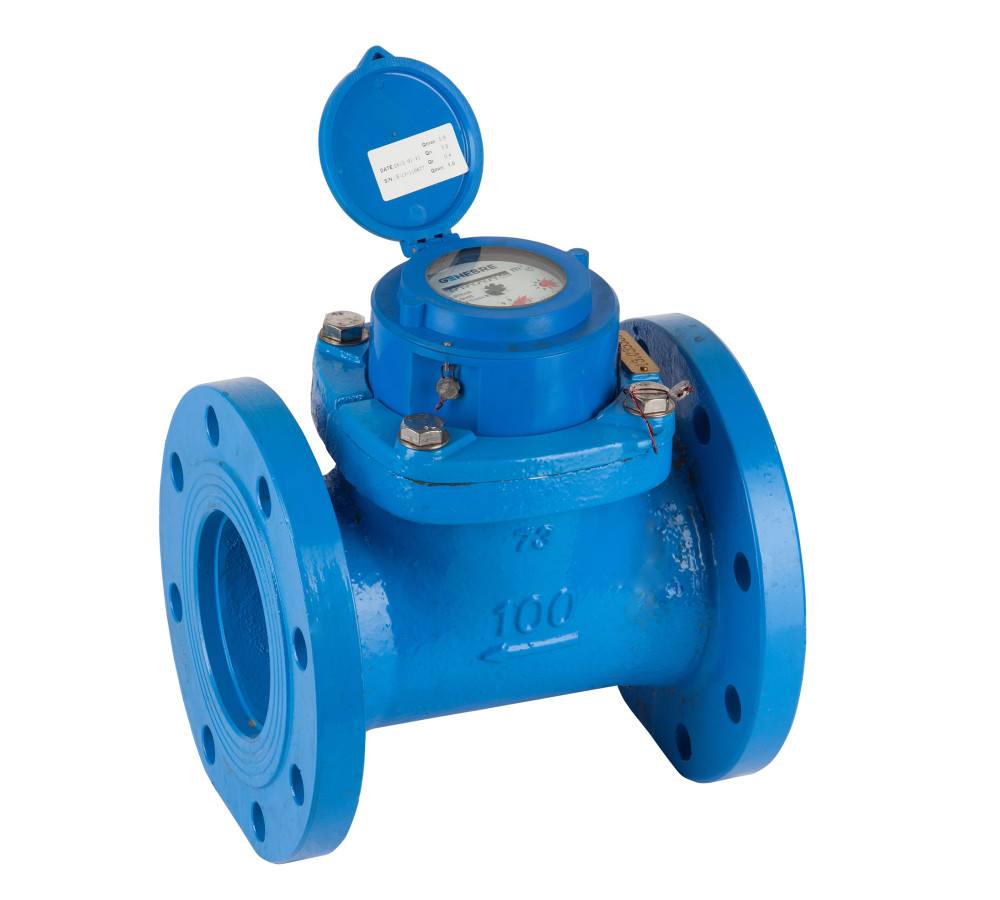

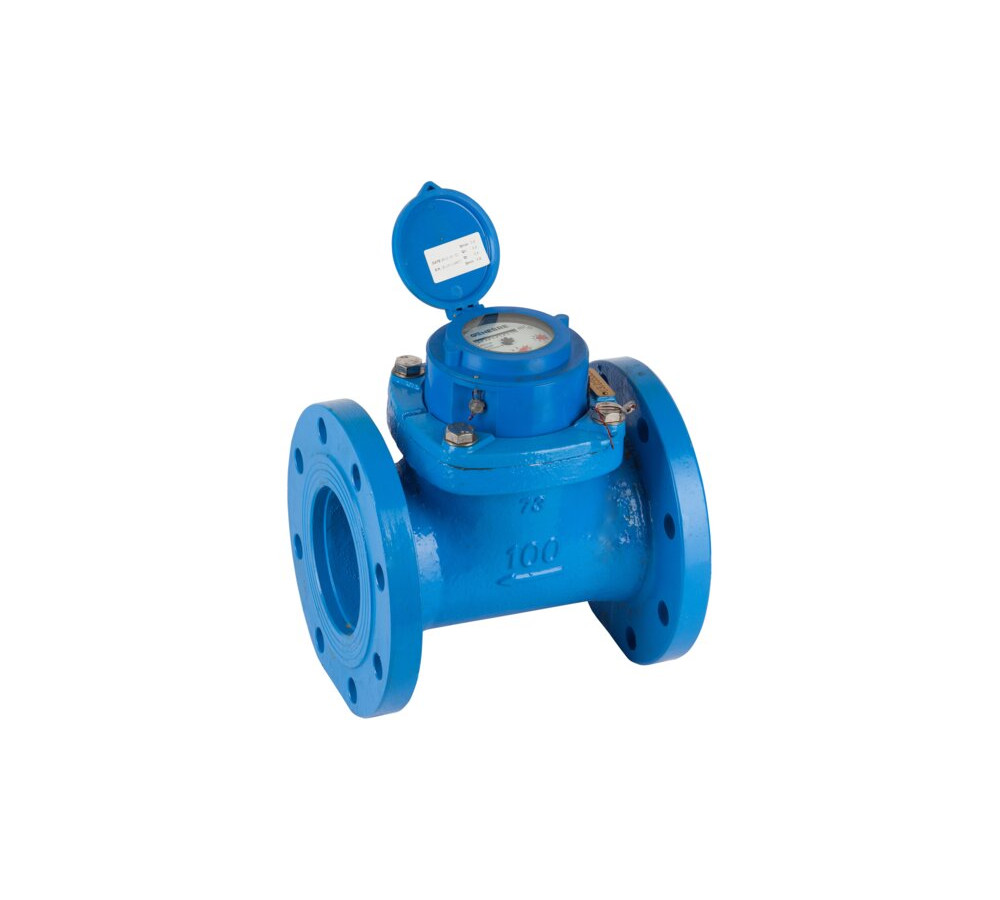

WOLTMANN water meter with ANSI flanges

For measurement of high flows of cold water. Dry-dial. Low pressure loss. Measuring accuracy conform to ISO 4064 Standard, accuracy class 2. The meter can be installed in horizontal, vertical or inclined position (a horizontal position with the register face upwards is recommended). Working conditions: Maximum water temperature: 30ºC. Maximum working pressure: 16 bar. ANSI flanges ends connection. Pre-equipped for pulse transmitter.

Reference: 6060A

See Technical Sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
6060A 09 WOLTMAN ANSI FLANGE METER 2" 1 11.469 1/1
6060A 10 WOLTMAN ANSI METER 2 1/2" 1 12.92 1/1
6060A 11 WOLTMAN ANSI FLANGE METER 3" 1 13.997 1/1
6060A 12 WOLTMAN ANSI FLANGE METER 4" 1 19.357 1/1
6060A 13 WOLTMAN ANSI FLANGE METER 5" 1 22.65 1/1
6060A 14 WOLTMAN ANSI FLANGE METER 6" 1 33.945 1/1
6060A 16 WOLTMAN ANSI FLANGE METER 8" 1 47.417 1/1
6060A 18 WOLTMANN ANSI FLANGE METER 1 96.025 1/1
6060A 20 WOLTMANN ANSI FLANGE METER 1 125.65 1/1
