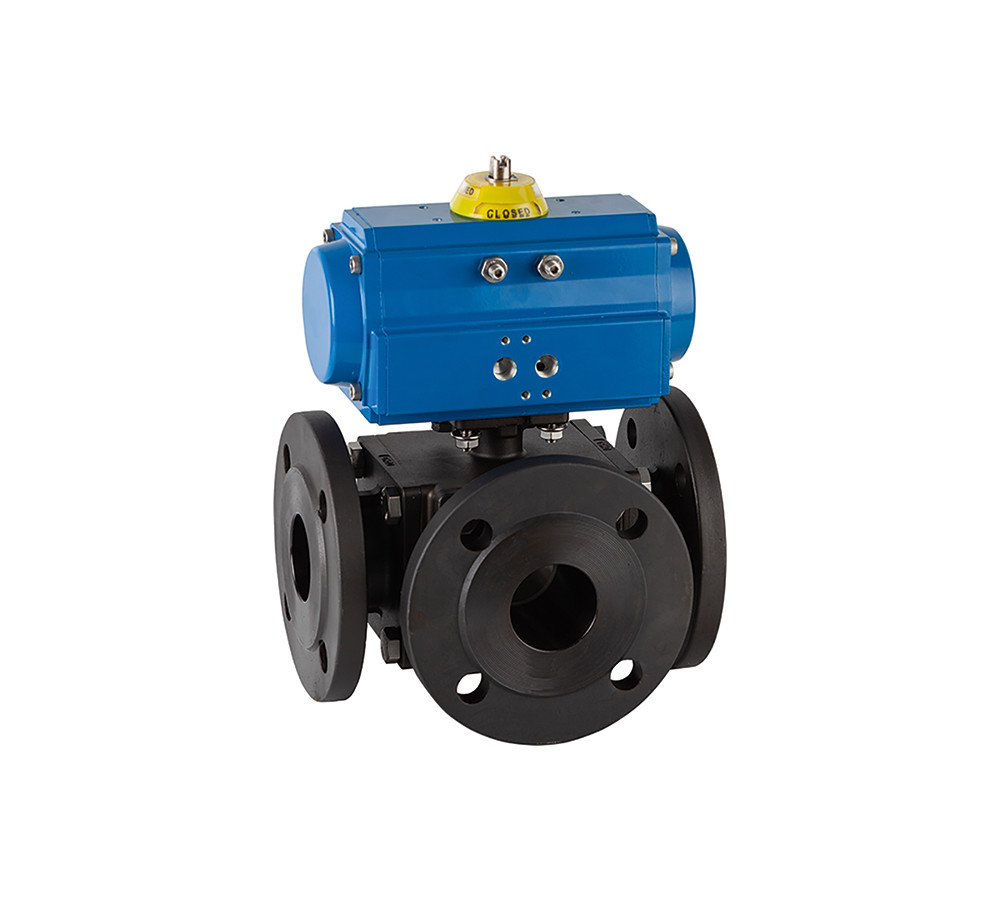

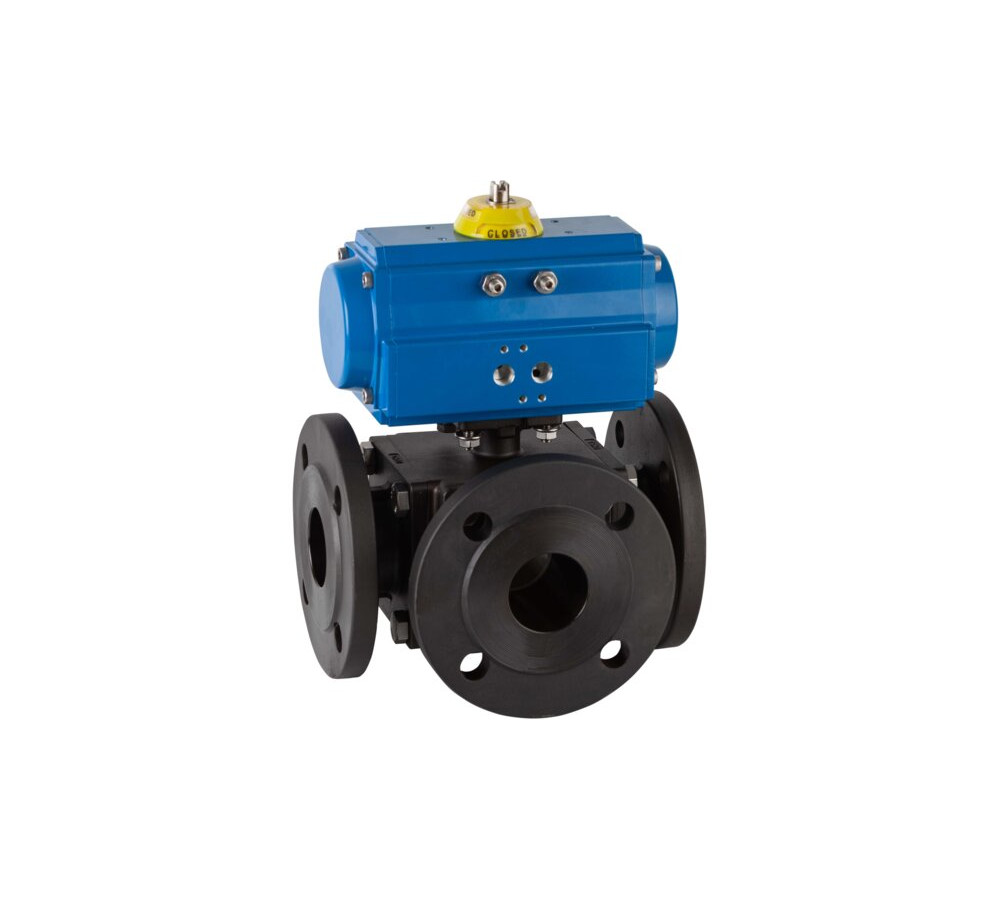

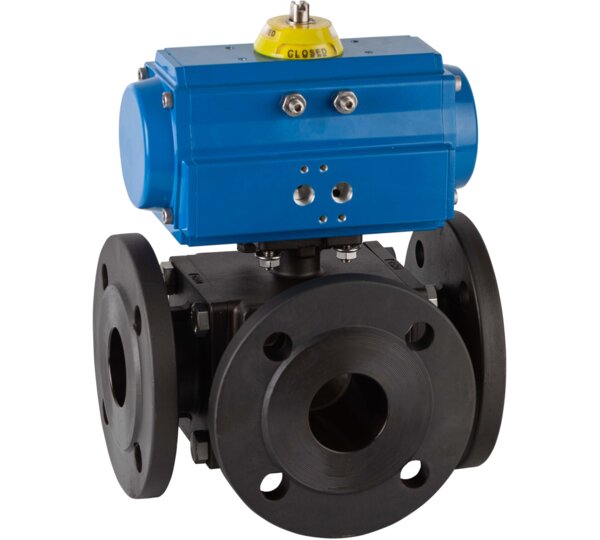

“T” 3 ways ball valve with flanges / GNP Actuator

“T” 3 ways ball valve with flanges.
Direct mounting for actuators ISO 5211.
Body: Carbon steel 1.0619 (WCB) investment casting.
Ball: AISI 304.Ball seats: PTFE.
Máx. Pressure: 16/40 bar depending on size.
Temp.: -30ºC +160ºC. Manually operated by handle with locking system.
With GNP Actuator.

Reference: 5545

Valve Technical Sheet
GNP Actuator technical sheet
Consult product
Reference Size Minimum purchase unit Weight (Kg) Box / carton
5545 06 128 V.2545 1" GNP-44 1 8.64 1/1
5545 06 144 V.2545 1" GNP-94/S5 1 10.14 1/1
5545 07 128 V.2545 1"1/4 GNP-44 1 12.44 1/1
5545 07 148 V.2545 1"1/4 GNP-135/S5 1 15.84 1/1
5545 08 138 V.2545 1"1/2 GNP-135 1 27 1/1
5545 08 152 V. 2545 1"1/2 GNP-198/S4 1 20.8 1/1
5545 09 142 V.2545 2" GNP-94 1 21.52 1/1
5545 09 160 V.2545 2" GNP-300/S5 1 28.62 1/1
5545 10 146 V.2545 2"1/2 GNP-135 1 27 1/1
5545 10 164 V.2545 2"1/2 GNP-513/S5 1 36.4 1/1
5545 11 150 V.2545 3" GNP-198 1 37.2 1/1
5545 11 160 2545 11 +5800 160 1 48 1/1
5545 11 168 V.2545 3" GNP-800/S5 1 54.6 1/1
5545 11 80 2545 11+ 5800 80 1 46.7 1/1
5545 12 162 V.2545 4" GNP-513 1 55.24 1/1
5545 12 172 V.2545 4" GNP-1280/S5 1 89.34 1/1
