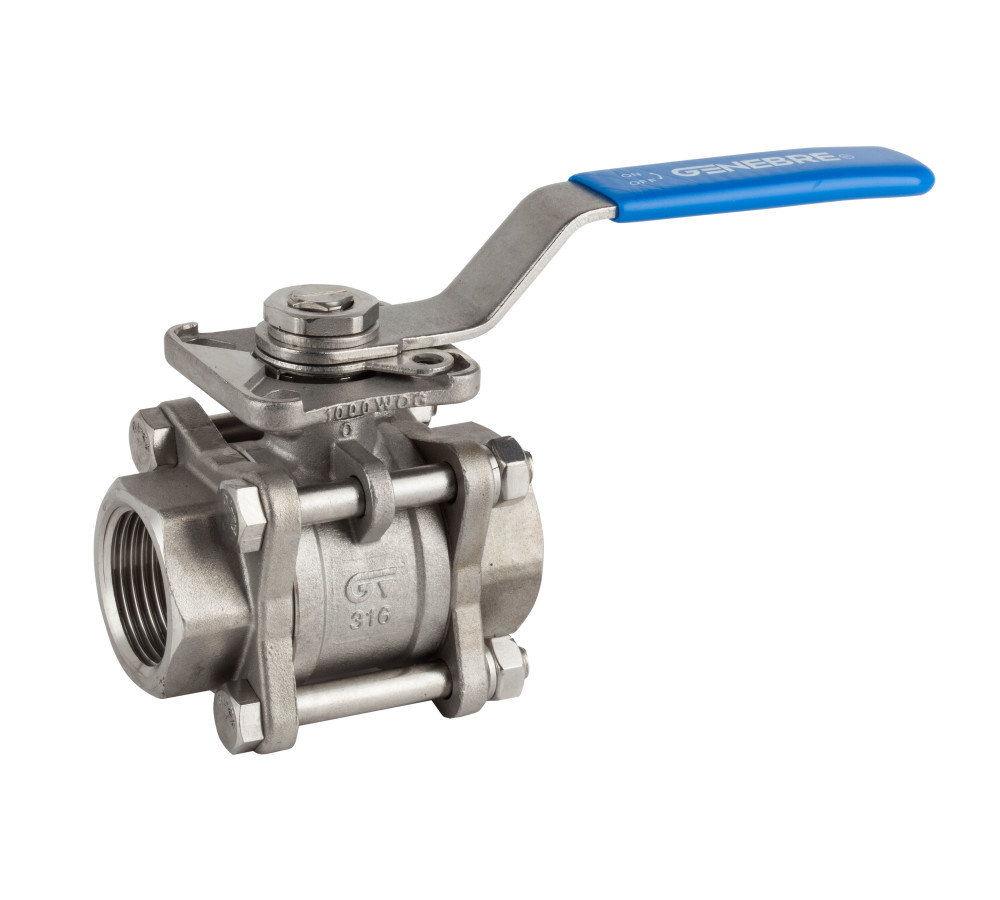

“V” control ball valve, 3 pieces

Const.: stainless steel CF8M (316) investment casting gas thread ISO 7-1 (EN 10226-1). Seats and seats: PTFE +15% GF o’ring stem: viton PN 63. Temp. -25ºC +180ºC. Direct assembling ISO 5211 with locking system.
Indicate necessary angle 30º, 60º or 90º; see extension XX.

Reference: 2025V

See Technical Sheet

Installation Manual

Consult product

Reference	Size	Minimum purchase unit	Weight (Kg)	Box / carton
2025V 30 04	V30 CONTROL VALVE 2025 3 PIECES 1/2"	1	0.5	1/1
2025V 30 05	V30 CONTROL VALVE 2025 3 PIECES 3/4"	1	0.835	1/1
2025V 30 06	V30 CONTROL VALVE 2025 3 PIECES 1"	1	1.04	1/1
2025V 30 07	V30 CONTROL VALVE 2025 3 PIECES 1 1/4"	1	1.88	1/1
2025V 30 08	V30 CONTROL VALVE 2025 3 PIECES 1 1/2"	1	2.547	1/1
2025V 30 09	V30 CONTROL VALVE 2025 3 PIECES 2"	1	3.7	1/1
2025V 30 10	V30 CONTROL VALVE 2025 3 PIECES 2 1/2"	1	8.975	1/1
2025V 30 11	V30 CONTROL VALVE 2025 3 PIECES 3"	1	13.077	1/1
2025V 30 12	V30 CONTROL VALVE 2025 3 PIECES 4"	1	20.31	1/1
2025V 60 04	V60 CONTROL VALVE 2025 3 PIECES 1/2"	1	0.6	1/1
2025V 60 05	V60 CONTROL VALVE 2025 3 PIECES 3/4"	1	0.835	1/1
2025V 60 06	V60 CONTROL VALVE 2025 3 PIECES 1"	1	1.093	1/1
2025V 60 07	V60 CONTROL VALVE 2025 3 PIECES 1 1/4"	1	1.872	1/1
2025V 60 08	V60 CONTROL VALVE 2025 3 PIECES 1 1/2"	1	2.532	1/1
2025V 60 09	V60 CONTROL VALVE 2025 3 PIECES 2"	1	3.67	1/1
2025V 60 10	V60 CONTROL VALVE 2025 3 PIECES 2 1/2"	1	8.935	1/1
2025V 60 11	V60 CONTROL VALVE 2025 3 PIECES 3"	1	12.977	1/1
2025V 60 12	V60 CONTROL VALVE 2025 3 PIECES 4"	1	20.16	1/1
2025V 90 04	V90 CONTROL VALVE 2025 3 PIECES 1/2"	1	0.61	1/1
2025V 90 05	V90 CONTROL VALVE 2025 3 PIECES 3/4"	1	0.83	1/1
2025V 90 06	V90 CONTROL VALVE 2025 3 PIECES 1"	1	1.096	1/1
2025V 90 07	V90 CONTROL VALVE 2025 3 PIECES 1 1/4"	1	1.87	1/1
2025V 90 08	V90 CONTROL VALVE 2025 3 PIECES 1 1/2"	1	2.52	1/1
2025V 90 09	V90 CONTROL VALVE 2025 3 PIECES 2"	1	3.655	1/1
2025V 90 10	V90 CONTROL VALVE 2025 3 PIECES 2 1/2"	1	8.895	1/1
2025V 90 11	V90 CONTROL VALVE 2025 3 PIECES 3"	1	12.917	1/1
2025V 90 12	V90 CONTROL VALVE 2025 3 PIECES 4"	1	20.02	1/1
